HPE

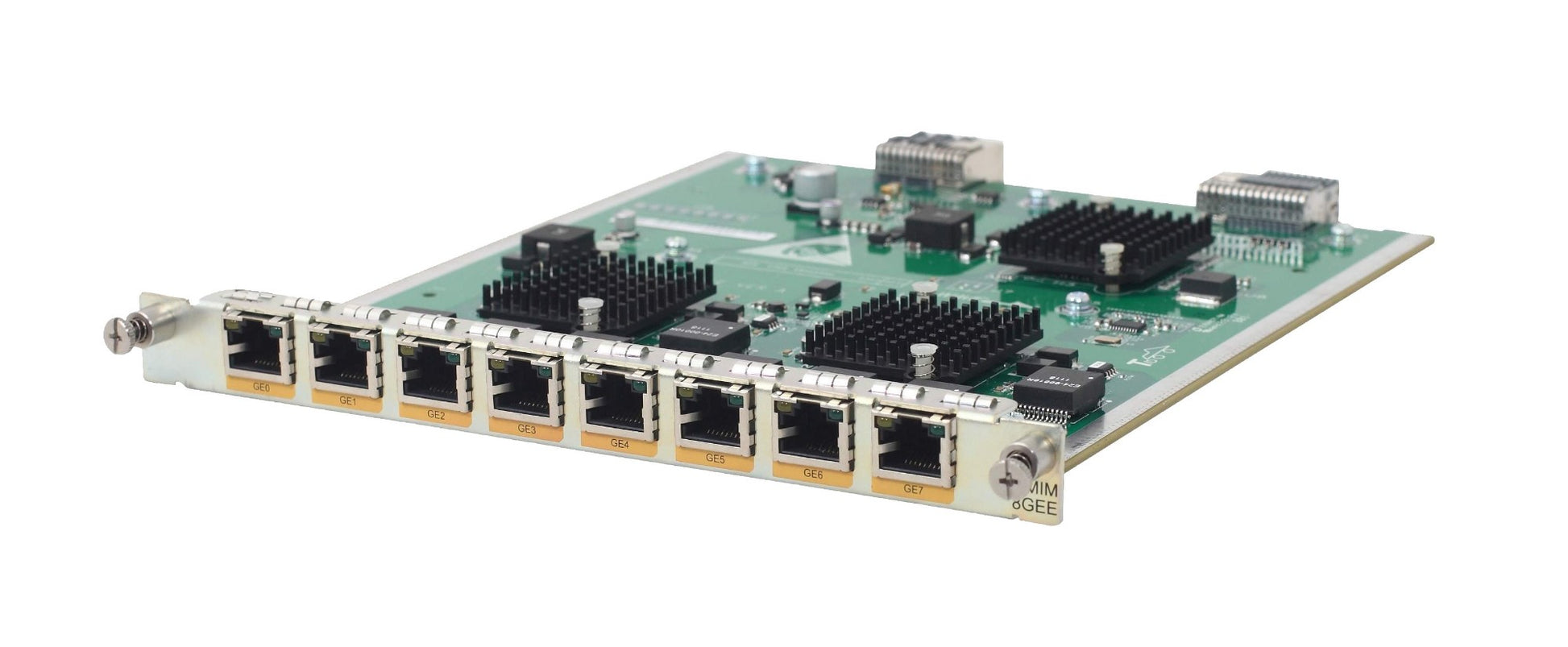

HPE JG422A | MSR4000 8-Port Gigabit RJ45 HMIM Module, Half Height

SKU:JG422A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The JG422A is a half-height HMIM interface module from the HPE FlexNetwork MSR4000 router series. It adds eight 10/100/1000BASE-T RJ-45 Gigabit Ethernet copper ports to an MSR4060 or MSR4080 chassis, suiting extra-large branch offices, headquarters and campus edge sites that need more Gigabit copper port density on the router.

This is the 8-port Gig-T, non-PoE variant. It uses the half-height HMIM form factor and takes up one half-height or one full-height slot in the chassis. Because the module is non-PoE, it provides data connectivity only and does not supply power to connected devices. It draws its power from the host chassis, so the router needs its own power supplies, such as the JG527A 300W AC or JG528A 300W DC.

The module has no separate licence listed. Layer 2 and Layer 3 functions such as VLAN, link aggregation and QoS are delivered by the host MSR4000 router running Comware v7. It installs in the MSR4080 (JG402A) and MSR4060 (JG403A) chassis, which also require one MPU (JG412A) and one SPU (JG413A, JG414A or JG670A).

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Half-height HMIM form factor in the hot-swappable module design
- Eight 10/100/1000BASE-T RJ-45 Gigabit copper ports for LAN expansion
- Suited to branch, headquarters and campus aggregation sites
- Layer 2 and Layer 3 functions such as VLAN, link aggregation and QoS provided by the host MSR4000 router running Comware v7
- Data-only non-PoE design powered from the host chassis
- Part of the HPE FlexBranch and FlexNetwork architecture

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Part number: JG422A
- Product name: HPE FlexNetwork MSR 8-port Gig-T HMIM Module
- Module type: HMIM (high-performance MIM), half height
- Ports: 8 x RJ-45 10/100/1000BASE-T
- Media type: Twisted pair copper
- Ethernet technology: Gigabit Ethernet
- PoE: None (non-PoE module)
- Slot usage: 1 half-height or 1 full-height slot
- Compatible chassis: HPE FlexNetwork MSR4080 (JG402A) and MSR4060 (JG403A)
- Maximum per MSR4080 chassis: 8
- Maximum per MSR4060 chassis: 6
- Host chassis operating temperature: 0 to 45 C
- Host chassis operating humidity: 5% to 90% non-condensing
- Host chassis altitude: up to 5 km (16,404 ft)
- UPC: 886112790820

FAQs

Q: Which routers is the JG422A compatible with?
A: It installs in the HPE FlexNetwork MSR4080 (JG402A) and MSR4060 (JG403A) router chassis. The chassis also needs one MPU (JG412A) and one SPU (JG413A, JG414A or JG670A).

Q: Does this module provide PoE?
A: No. It is a non-PoE module with eight 10/100/1000BASE-T RJ-45 ports for data only. It is powered from the host MSR4000 chassis.

Q: Does it need a separate licence?
A: No licence is listed for the module itself. Its features are provided by the Comware v7 software on the host MSR4000 router.

Q: How many modules can one chassis take?
A: Up to 8 in an MSR4080 (JG402A) and up to 6 in an MSR4060 (JG403A), according to the QuickSpecs configuration notes.

Q: What power does the chassis need?
A: The host MSR4000 chassis needs 1 to 4 power supplies, for example the JG527A 300W AC or JG528A 300W DC. The module draws its power from the chassis.
