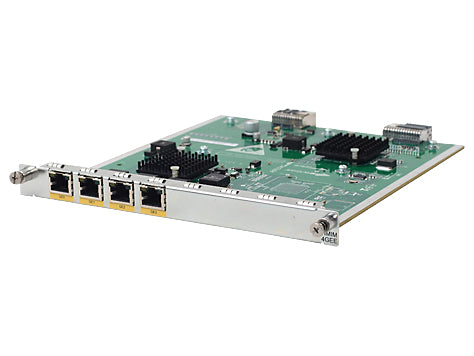

• HPE JG421A 4x 1GBase-T RJ45 Gigabit switch module for MSR routers
1 1

HPE

HPE JG421A | FlexNetwork MSR 4-Port Gig-T HMIM Router Module

JG421A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The JG421A is a half-height HMIM interface module from the HPE FlexNetwork MSR family, built to add copper Gigabit connectivity to compatible MSR3000 and MSR4000 series routers. It suits branch and enterprise sites that need extra LAN or WAN copper ports and Layer 2 access port expansion without adding a separate switch.

The module provides four RJ-45 10/100/1000BASE-T Gigabit Ethernet ports over twisted pair media, with auto-speed detection, auto duplex and MDI/MDI-X on each port. In the half-height HMIM form factor it occupies one half-height or one full-height slot, which gives flexibility in the MSR4000 chassis with its six HMIM slots (four half-height and two full-height). It is a non-PoE module and draws power from the host router chassis, so no separate power supply is needed.

It is designed for the HPE FlexNetwork MSR3000 and MSR4000 router series, including MSR4000 configurations based on the JG412A MPU-100 and JG414A SPU-200. Related modules in the range include the JG420A 2-port Gig-T, JG422A 8-port Gig-T and JG427A 24-port Gig-T PoE switch HMIM.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Adds four Gigabit copper ports to a compatible MSR router
- Layer 2 switching module for access port expansion
- Half-height HMIM design gives flexible slot use in the MSR4000, which has six HMIM slots (four half-height and two full-height)
- Auto-speed detection, auto duplex and MDI/MDI-X on every 10/100/1000BASE-T port
- Powered from the router chassis, so no separate power supply is required
- Part of the MSR portfolio combining WAN routing, Ethernet switching, stateful firewall, VPN and SIP/voice gateway

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: JG421A
- Module type: Router interface module (HMIM)
- Ports: 4 x RJ-45 10/100/1000BASE-T
- Ethernet technology: Gigabit Ethernet
- Media type: Twisted pair
- Form factor: Half-height HMIM, occupies 1 half-height or 1 full-height slot
- Port features: Auto-speed detection, auto duplex, MDI/MDI-X
- Power: Powered from the host MSR router chassis, non-PoE
- Designed for: HPE FlexNetwork MSR3000 and MSR4000 router series
- UPC: 0886112790806

FAQs

Q: Which routers is the JG421A designed for?
A: It is designed for the HPE FlexNetwork MSR3000 and MSR4000 router series, including MSR4000 configurations such as the JG412A MPU-100 and JG414A SPU-200.

Q: Does this module support PoE?
A: No. The JG421A is a non-PoE module and is powered from the host MSR router chassis. For a PoE option in the same family, see the JG427A 24-port Gig-T PoE switch HMIM.

Q: How many slots does it occupy in the router?
A: It uses the half-height HMIM form factor and takes up one half-height or one full-height slot.

Q: What other Gig-T HMIM modules are in the range?
A: Related modules include the JG420A 2-port Gig-T, the JG422A 8-port Gig-T and the JG427A 24-port Gig-T PoE switch HMIM. The newer HMIM-V2 module is a separate SKU.
