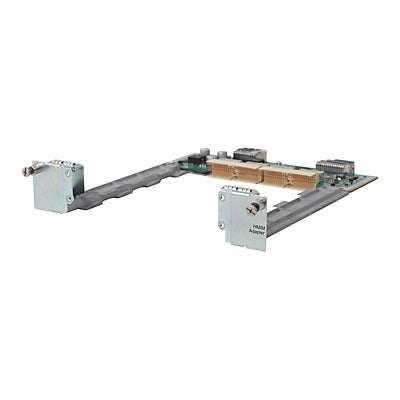

• HPE JG416A HMIM 1U silver network switch module with black circuit board
1 1

HPE

HPE JG416A | FlexNetwork MSR 1U HMIM Adapter Module for Router

JG416A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE FlexNetwork MSR 1U HMIM Adapter Module is a router adapter module that allows 1U-height MIM interface modules to be installed in the HMIM slots of MSR G2 routers. It is aimed at branch and enterprise networks that want to keep using legacy MIM voice and serial modules in MSR3000 and MSR4000 series chassis.

This is a 1U adapter, which separates it from the JG415A 0.5U HMIM Adapter Module. It has no network ports of its own and is a plug-in module with a half-height HMIM slot footprint. On the MSR4000 it takes up one half-height or one full-height slot. It adapts the JD565B 1-port E1 Voice, JD567B 2-port E1 Voice, JD566B 1-port T1 Voice, JD568B 2-port T1 Voice, JF822A 16-port FXS Voice and JF841A 16-port Async Serial modules.

It is compatible with the HPE MSR3012, MSR3024, MSR3044, MSR3064, MSR4060 and MSR4080 routers. As a passive adapter it has no separate power or licence requirement and is powered through the host router chassis. It is not intended for the MSR20-1x generation, which has no HMIM slots.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Allows a 1U-height MIM module to be installed in an HMIM slot of an MSR G2 router
- Lets existing legacy MIM voice and serial modules be reused in MSR3000 and MSR4000 chassis
- Passive adapter design with no separate power supply
- No licence required for the adapter itself
- Supports E1 and T1 voice, FXS voice and async serial MIM modules
- Distinct from the 0.5U HMIM adapter, which suits different MIM module heights

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Router adapter module
- Form factor: Plug-in module, half-height HMIM slot footprint
- Adapter height: 1U, for 1U-height MIM modules
- Network ports: None, adapter only
- Compatible routers: HPE MSR3012, MSR3024, MSR3044, MSR3064, MSR4060, MSR4080
- Adaptable MIM modules: JD565B, JD566B, JD567B, JD568B, JF822A, JF841A
- Slot usage on MSR4000: 1 half-height or 1 full-height slot
- Power: Drawn from the host MSR router chassis
- Licensing: None required for the adapter
- GTIN/UPC: 0886112790707

FAQs

Q: Which MIM modules can this adapter accommodate?
A: It adapts the 1U MIM modules JD565B, JD566B, JD567B, JD568B, JF822A and JF841A, covering 1-port and 2-port E1 and T1 voice, 16-port FXS voice and 16-port async serial.

Q: Which routers is it compatible with?
A: It fits the HMIM slots of the HPE MSR3012, MSR3024, MSR3044, MSR3064, MSR4060 and MSR4080 routers. It is not for the MSR20-1x generation.

Q: Does it need a licence or its own power supply?
A: No. It is a passive adapter powered through the host router chassis. Any licensing applies to the router and the installed MIM module.

Q: How does it differ from the JG415A?
A: The JG415A is the 0.5U HMIM Adapter Module, while this JG416A is the 1U adapter intended for 1U-height MIM modules.

Q: Does it add network ports to the router?
A: No. It has no network ports of its own. The ports come from the MIM module installed through it.
