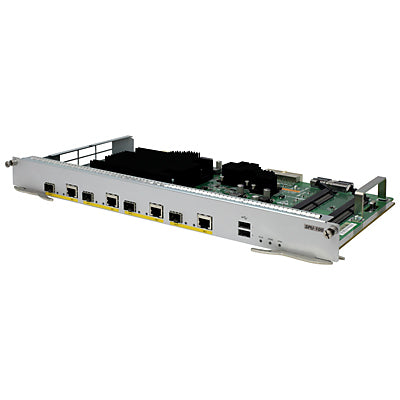

• HPE JG413A silver service processing unit for MSR4000 routers
1 1

HPE

HPE JG413A | MSR4000 SPU-100 Router Module, 4x 1G + 4x SFP, 10Mpps

JG413A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The SPU-100 is the service processing unit for the MSR4000 modular router family, built for branch and enterprise WAN edge deployments. It carries out data-plane forwarding and handles services such as NAT, IPsec VPN and QoS, and it provides the chassis fixed Gigabit Ethernet ports for WAN and LAN connectivity. It is designed for the MSR4060 and MSR4080 router chassis and is paired with a Main Processing Unit such as the MPU-100.

The SPU-100 is built around an 8-core 1 GHz RISC processor with 2 GB of DDR3 SDRAM. Fixed connectivity is 4 x 1000BASE-T and 4 x SFP combo ports, and two voice processing module slots allow voice modules to be added. Forwarding performance is rated at 10 Mpps, and full-service performance with NAT, QoS and ACL enabled is 1 Gbps using an IMIX traffic profile.

The module takes its power from the chassis backplane and runs under the Comware software of the MSR4000 platform, with no separate licence identified for the module itself. Each chassis provides one SPU slot. Within the range, the SPU-100 sits below the SPU-200 and SPU-300 service processing units.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Separate hardware data and control planes, with dual MPU support in the chassis
- Embedded hardware encryption accelerator in the MSR4000 series for IPsec performance
- Multi Gigabit Fabric transmits Layer 2 packets directly, reducing load on the main processor
- Runs NAT, QoS and ACL services concurrently
- SFP combo ports accept SFP transceivers for fibre WAN or LAN links
- Two voice processing module slots for voice connectivity
- Part of the HPE FlexBranch Comware architecture

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: SPU-100 Service Processing Unit
- Processor: 8-core RISC at 1 GHz
- Memory: 2 GB DDR3 SDRAM (default and maximum)
- Fixed ports: 4 x 1000BASE-T and 4 x SFP (combo)
- Voice processing module slots: 2
- Forwarding performance: 10 Mpps
- Full-service performance (NAT + QoS + ACL, IMIX): 1 Gbps
- Minimum Comware software version: R0150 or higher
- Chassis compatibility: MSR4060 and MSR4080 router chassis
- SPU slots per chassis: 1
- Chassis operating temperature: 0 to 45 C
- Chassis operating humidity: 5% to 90%, noncondensing
- Chassis storage temperature: -40 to 70 C
- Chassis altitude: up to 5 km

FAQs

Q: Does the SPU-100 need a separate licence?
A: No separate licence has been identified for the module itself. It runs under the Comware software on the MSR4000 chassis.

Q: Which chassis does the SPU-100 work with?
A: It is used in the MSR4060 and MSR4080 router chassis, which provide one SPU slot each. It must be paired with a Main Processing Unit such as the MPU-100 (JG412A).

Q: How is the SPU-100 powered?
A: It has no dedicated power supply and draws power from the chassis backplane. The chassis power supplies are selected separately, and the MSR4060 with an SPU-100 has a maximum power rating of 300 W.

Q: How does the SPU-100 differ from the SPU-200 and SPU-300?
A: The SPU-100 is the entry service processing unit with an 8-core 1 GHz processor, 2 GB DDR3 and 10 Mpps forwarding. The SPU-200 (JG414A) and SPU-300 (JG670A) are higher-tier units in the same family.

Q: What can be fitted to the SPU-100 ports and slots?
A: The four combo ports accept SFP transceivers as an alternative to the 1000BASE-T copper interfaces, and the two VPM slots take voice processing modules.
