HPE

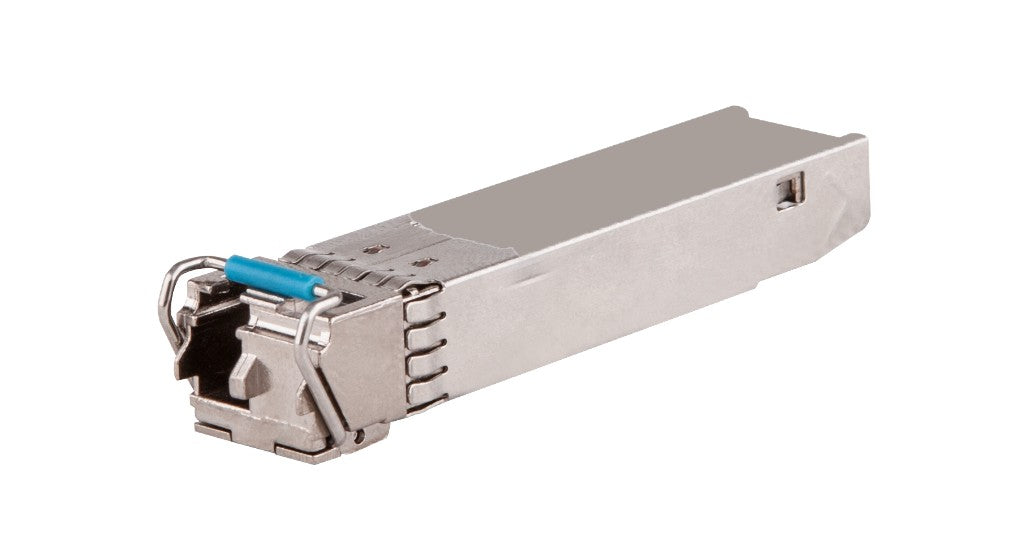

HPE JD098B | 1G SFP BiDi | 1000BASE-BX10-U | 1310/1490nm | 10 km | LC simplex | DDM

SKU:JD098B

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Compact 1GbE bidirectional SFP transceiver for single-fiber deployments. This BX10-U (upstream) module transmits at 1310 nm and receives at 1490 nm to deliver up to 10 km reach over single-mode fiber via an LC simplex connector. Compliant with IEEE 1000BASE-BX10 and SFP MSA, with digital diagnostics for simplified monitoring. Requires a matching BX10-D at the far end.

Features

- Single-fiber (BiDi) design halves fiber usage
- 10 km reach for access and campus uplinks
- Standards-compliant 1G SFP with DDM
- LC simplex interface for easy deployment
- Reduces transceiver and fiber costs in P2P links

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Do I need a matching transceiver at the other end?
A: Yes, pair this BX10-U with a BX10-D (1490 nm TX / 1310 nm RX) on the far end.

Q: Can this work over multimode fiber?
A: No, it is intended for single-mode fiber only.

Q: Is digital diagnostics supported?
A: Yes, DDM/DOM is supported for monitoring optical parameters.

Q: Is it compatible with any SFP port?
A: It fits standard SFP ports that support 1G; some devices may require vendor-specific coding.

Technical Specifications

- Speed: 1 GbE
- Form factor: SFP (BiDi)
- Standard: IEEE 802.3ah 1000BASE-BX10-U, SFP MSA
- Wavelengths: TX 1310 nm, RX 1490 nm
- Reach: Up to 10 km over single-mode fiber (SMF)
- Connector: LC simplex (single-fiber)
- DDM/DOM: Supported for optical diagnostics
- Fiber type: Single-mode (OS1/OS2)
- Operating mode: Must be paired with a BX10-D at the remote end
