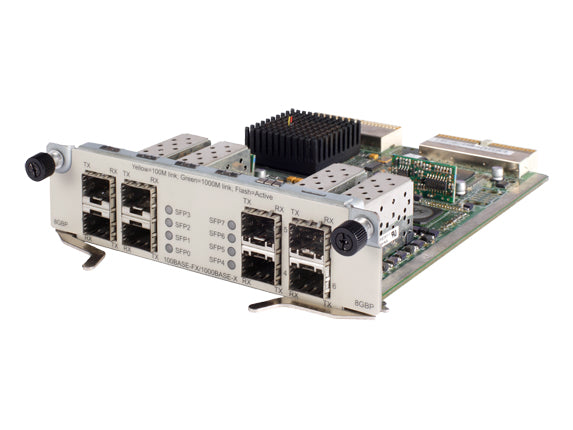

• HPE JC174A 8-port Gigabit Ethernet SFP HIM router module
1 1

HPE

HPE JC174A | FlexNetwork 6600 8-Port GbE SFP Router Module

JC174A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The JC174A is a hot-swappable Hardware Interface Module (HIM) from the HPE FlexNetwork 6600 and HSR6600 router family. It adds eight Gigabit Ethernet SFP ports to a compatible router and suits small-to-medium campus WAN edge, aggregation and high-end branch deployments that need high-density fibre or copper-SFP uplinks and WAN/LAN interfaces.

The module provides 8 x SFP (mini-GBIC) ports, with 0 to 8 transceivers fitted as required. Each port supports 100M and 1G SFP transceivers, with 100/1000BASE-X auto-speed selection. The module has no built-in transceivers, so fibre or copper-SFP optics are chosen to suit each link. It draws power from the host router chassis and has no separate power input. The module itself needs no licence, although the host router requires the HPE 6600 Router Software LTU (JC180A) on the JC177B, JC178B and JC496A chassis.

It works in the HPE 6602 (JC176A), 6604 (JC178B), 6608 (JC177B), 6616 (JC496A), HSR6602-G (JG353A) and HSR6602-XG (JG354A) routers. Installation goes through a Flexible Interface Platform module (JC166B, JC167B, JG357A or JG358A), and JG357A is supported only on Comware V5.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable hardware interface module for the HSR6600 and 6600 router family
- Eight SFP slots for flexible fibre or copper interface selection
- 100/1000BASE-X auto-speed selection on SFP ports
- Loopback testing and loopback detection supported on the router platform
- Part of a modular WAN/LAN design with carrier-class resiliency and hitless software upgrades

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Module type: Hardware Interface Module (HIM) router module
- Ports: 8 x 1GbE SFP (mini-GBIC)
- Transceivers: not built in, 0 to 8 SFP transceivers
- Supported SFP speeds: 100M and 1G (100/1000BASE-X)
- Supported 1G transceivers: X120 SX (JD118B), X120 LX (JD119B), X125 LH40 1310nm (JD061A), X120 LH40 1550nm (JD062A), X125 LH70 (JD063B), X120 LH100 (JD103A), X120 BX 10-U/D (JD098B/JD099B), X120 SFP RJ45 T (JD089B)
- Supported 100M transceivers: X115 BX 10-U/D (JD100A/JD101A), X115 FX (JD102B), X110 LX (JD120B), X110 LH40 (JD090A), X110 LH80 (JD091A)
- Router compatibility: HPE 6602 (JC176A), 6604 (JC178B), 6608 (JC177B), 6616 (JC496A), HSR6602-G (JG353A), HSR6602-XG (JG354A)
- Flex Interface Platform: JC177B, JC178B and JC496A need a JC166B, JC167B, JG357A or JG358A module
- Flex Interface Platform: JG353A, JG354A and their TAA variants need a JG357A or JG358A
- Management module for JC178B, JC177B and JC496A: MCP-X1 (JG355A), MCP-X2 (JG356A) or TAA MCP-X2 (JG778A)
- Power: supplied by the host router chassis, no separate power input

FAQs

Q: Does this module need its own licence?
A: No. The module needs no licence of its own. On the JC177B, JC178B and JC496A routers, the host router needs the HPE 6600 Router Software LTU (JC180A), with one selected per router.

Q: Which routers is the JC174A compatible with?
A: It works in the HPE FlexNetwork 6602 (JC176A), 6604 (JC178B), 6608 (JC177B), 6616 (JC496A), HSR6602-G (JG353A) and HSR6602-XG (JG354A) routers.

Q: Do I need a Flexible Interface Platform module to install it?
A: Yes, where the chassis requires it. The JC177B, JC178B and JC496A need a JC166B, JC167B, JG357A or JG358A module, and the JG353A and JG354A need a JG357A or JG358A. JG357A is supported only on Comware V5.

Q: Which SFP transceivers work with this module?
A: It supports HPE X120 and X125 1G SFP optics such as JD118B, JD119B, JD061A, JD062A, JD063B, JD103A, JD098B, JD099B and the JD089B copper SFP. It also supports X110 and X115 100M SFP transceivers such as JD100A, JD101A, JD102B, JD120B, JD090A and JD091A.

Q: Does it need a separate power supply?
A: No. The module is powered from the host router chassis backplane. SFP transceiver power draw is additional.
