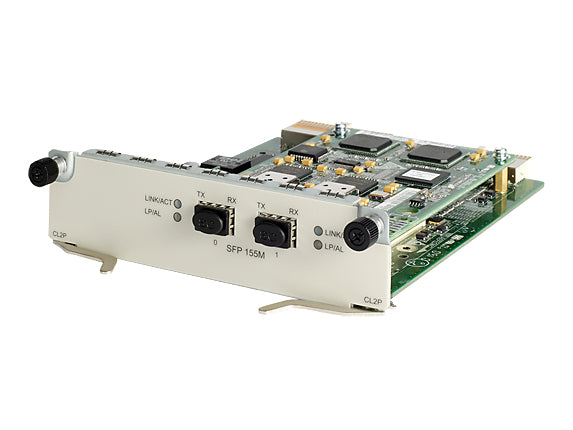

• HPE JC162A router module with Cisco SFP-15m fiber optic transceiver
1 1

HPE

HPE JC162A | FlexNetwork 6600 2-Port OC-3/STM-1 CPOS Router Module

JC162A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE FlexNetwork 6600 2-port OC-3/STM-1 (E1/T1) CPOS SFP HIM, also known as the HIM-CL2P, is a hardware interface module for HPE FlexNetwork 6600, HSR6600 and HSR6800 routers. It is built for carriers and large enterprises that need to take channelized E1 or T1 circuits over STM-1/OC-3 fibre into a core or edge router for WAN edge and aggregation roles.

The module provides two SFP ports with LC connectors, each running at 155.52 Mbps. Every CPOS interface can be channelized into 63 E1s or 84 T1s, up to 512 DS0s. The operating mode is set to CPOS E1 or CPOS T1 from the CLI and applies to all ports on the module. Hardware-based MP bundling supports up to 12 E1/T1 links per bundle, and a 10 Gbps bus connects the module to the processor. It is a 1U-height hot-swappable HIM drawing 12.48 W minimum and 14.40 W maximum from the host chassis. This is the 2-port version, as opposed to the 1-port JC161A or the E3/T3 variants JC169A and JC170A.

It installs in FIP slot carriers that support HIMs: FIP-200, FIP-210, FIP-240, FIP-300, FIP-310 and FIP-600. It is supported on Comware 5 and Comware 7, and takes 100-Megabit SFP and BIDI optical transceivers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Carries multiplexed E1/T1 circuits over a single fibre pair, saving link resources and cost for carriers and large enterprises
- Supports IP and MPLS traffic and Multi-link PPP
- Hardware-based MP bundling with up to 12 E1/T1 links per bundle
- CPOS E1 or CPOS T1 mode selectable from the CLI
- LINK/ACT and LP/AL LEDs on each SFP port
- Hot-swappable 1U HIM design
- Works with Comware 5 and Comware 7

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product code: JC162A
- Abbreviation: HIM-CL2P
- Full name: RT-HIM-2CPOS/STM1-H3
- Module type: HIM (Hardware Interface Module), 1U
- Number of interfaces: 2
- Connector type: SFP/LC
- Interface standards: SONET OC-3 / SDH STM-1
- Interface speed: 155.52 Mbps per port
- Channelization: 63 E1s or 84 T1s per CPOS interface, 512 DS0s
- Operating modes: CPOS E1 and CPOS T1, CLI configurable, applies to all ports on the module
- MP bundling: up to 12 E1/T1 per bundle, hardware-based
- Bus to processor: 10 Gbps
- Not supported: cascading, non-channelized SDH/SONET, channelizing OC-3/STM-1 into DS3/E3
- Power consumption: 12.48 W minimum, 14.40 W maximum
- Net weight: 0.42 kg (0.93 lb)
- Dimensions (W x D x H): 150 mm x 172 mm x 40 mm (5.9 x 6.77 x 1.57 in)
- Optical, short distance (multimode 62.5/125 um SFP): 1310 nm, 2 km maximum
- Optical, medium distance (single-mode 9/125 um SFP): 1310 nm, 15 km maximum
- Optical, long distance (single-mode SFP): 1310 nm, 40 km maximum
- Optical, ultra-long distance (single-mode SFP): 1550 nm, 80 km maximum
- Comware support: Comware 5 and Comware 7

FAQs

Q: Which routers and slot carriers is the JC162A compatible with?
A: It fits HPE FlexNetwork 6600 series (6604/6608/6616), HSR6600 and HSR6800 routers. It needs a FIP slot carrier that supports HIMs: FIP-200, FIP-210, FIP-240, FIP-300, FIP-310 or FIP-600. The FIP-10, FIP-110, FIP-260 and FIP-380 carriers do not support it.

Q: Does this module need its own licence?
A: No separate licence is stated for the module itself. It runs under the host router's Comware software.

Q: How much power does the module draw?
A: It draws 12.48 W minimum and 14.40 W maximum from the host router chassis. It has no separate power input.

Q: How does the JC162A differ from the JC161A, JC169A and JC170A?
A: The JC162A has two OC-3/STM-1 CPOS ports channelizing to E1/T1. The JC161A is the 1-port version, and the JC169A and JC170A are the E3/T3 versions.

Q: Can I switch between E1 and T1 mode?
A: Yes. CPOS E1 or CPOS T1 mode is set from the CLI and applies to all ports on the module. Changing the mode needs a module re-seat or a device reboot.

Q: What SFP optics can I use in the ports?
A: The ports take 100-Megabit SFP and BIDI optical transceivers, covering multimode at 2 km and single-mode at 15 km, 40 km and 80 km. SFP-GE/FE-LX10-SM1310 is not supported on Comware 5 or 7.
