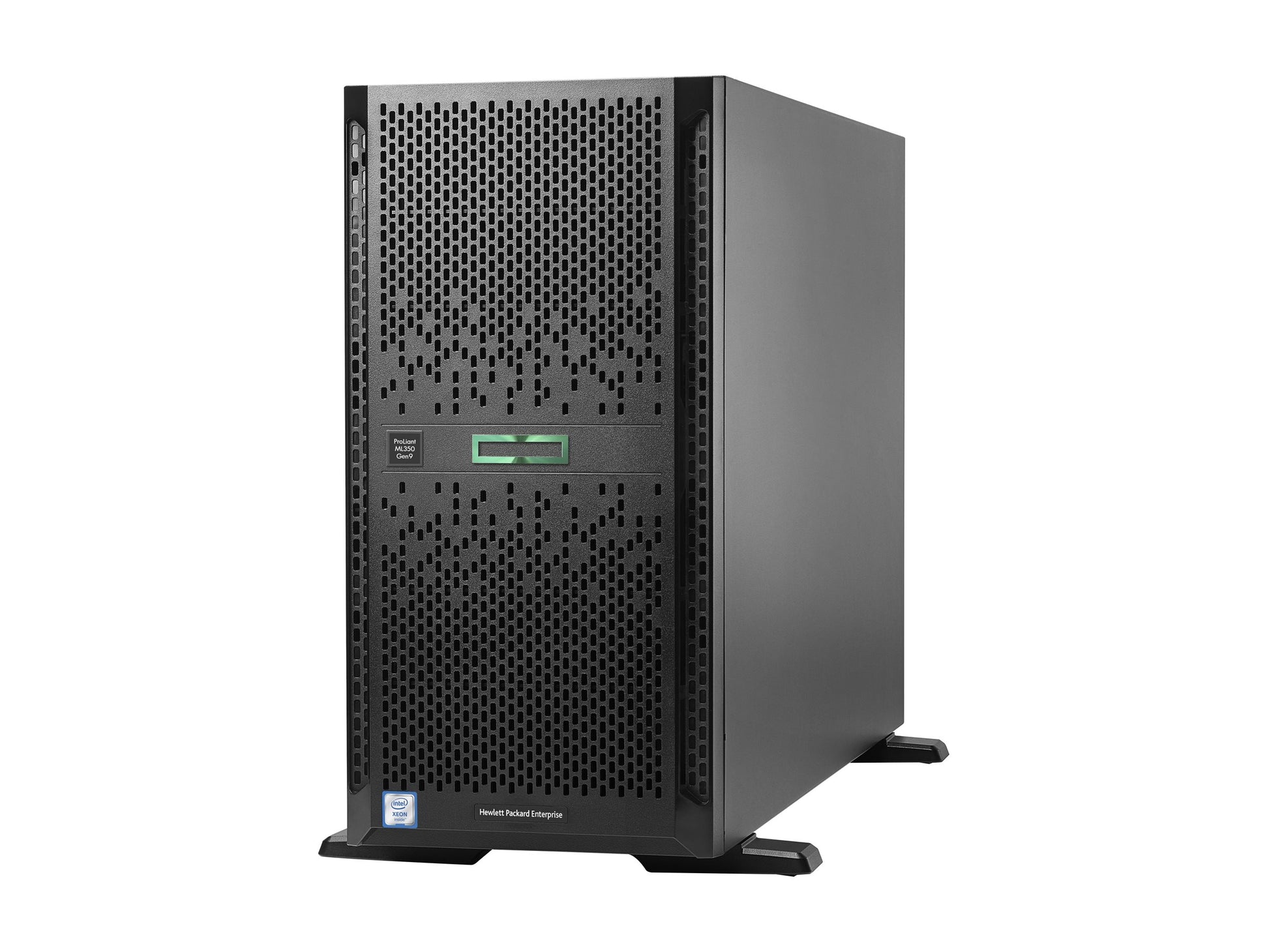

• HPE ML350 G9 tower server with black perforated case and standoffs
1 1

HPE

HPE HPE-ML350-G9 | ProLiant ML350 Gen9 Tower Server, 2x E5-2600 v3/v4

HPE-ML350-G9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant ML350 Gen9 is a versatile dual-socket tower server designed for growing SMBs, enterprise branch offices, and data centers requiring high performance and expandability. Supporting up to two Intel Xeon E5-2600 v3/v4 processors with 24 DDR4 DIMM slots for up to 3TB memory, it delivers exceptional scalability for virtualization, databases, and business-critical applications. Flexible storage configurations support up to 48 SFF or 24 LFF drives with hot-plug capability.

Features

Dual Intel Xeon E5-2600 v3/v4 processor support with up to 44 total cores
- 24 DDR4 DIMM slots supporting up to 3TB memory with SmartMemory technology
- Flexible storage: up to 48 SFF or 24 LFF hot-plug drives with SAS/SATA/SSD/NVMe support
- 12Gb/s SAS connectivity for high-performance storage throughput
- HPE Smart Array controllers with advanced RAID support (0, 1, 5, 6, 10, 50, 60)
- Nine PCIe 3.0 expansion slots for network, storage, and GPU accelerators
- Embedded 4x 1GbE NICs with optional 10GbE upgrade capability
- HPE iLO 4 management with remote KVM, virtual media, and health monitoring
- Hot-plug redundant Flex Slot power supplies for high availability
- Redundant hot-plug fan cooling with optimized thermal design
- Tool-less serviceability with easy-access components
- Supports up to 4 GPU compute or graphics accelerators
- Tower or rack-mount convertible design (5U rack height)
- Advanced security features including secure boot and firmware validation
- Energy-efficient design with high-efficiency power supplies

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 5U tower or rack-mountable
- Processors: Dual-socket, supports Intel Xeon E5-2600 v3 or E5-2600 v4 (up to 22 cores per processor)
- Chipset: Intel C610
- Memory: 24 DIMM slots, DDR4 SmartMemory, up to 3TB maximum (768GB registered, 1.5TB load-reduced)
- Storage: Supports up to 48 SFF or 24 LFF hot-plug SAS/SATA/SSD drives; NVMe support available
- Storage Controllers: HPE Smart Array B140i, P440ar, or optional P440/P840 RAID controllers; 12Gb/s SAS support
- Network: Embedded 4x 1GbE NICs; optional 10GbE adapters
- Expansion: Up to 9 PCIe 3.0 slots
- Graphics: Integrated Matrox G200; supports up to 4 GPU accelerators
- Management: HPE iLO 4 with remote management and diagnostics
- Power: Hot-plug redundant Flex Slot power supplies (up to 4 units supported)
- Cooling: Redundant hot-plug fans with optimized airflow

FAQs

Q: What processors are compatible with the ML350 Gen9?
A: The ML350 Gen9 supports Intel Xeon E5-2600 v3 and E5-2600 v4 processors, offering up to 22 cores per CPU. It can be configured with one or two processors depending on workload requirements.

Q: Can this server be rack-mounted?
A: Yes, the ML350 Gen9 is designed as a convertible platform. It ships as a tower server but can be rack-mounted as a 5U unit with the appropriate conversion kit, providing deployment flexibility for different environments.

Q: What storage configurations are available?
A: The ML350 Gen9 supports flexible storage with up to 48 Small Form Factor drives or 24 Large Form Factor drives. It supports SAS, SATA, SSD, and NVMe drives with hot-plug capability, enabling configurations from high-capacity bulk storage to high-performance all-flash arrays.

Q: What RAID options are available?
A: The server includes Smart Array B140i or P440ar controllers as standard, supporting RAID 0, 1, 5, 6, 10, 50, and 60. Optional P440 and P840 controllers provide enhanced performance and additional drive support with optional cache modules.

Q: How does iLO 4 enhance server management?
A: HPE iLO 4 provides comprehensive remote management capabilities including virtual console access, remote power control, health monitoring, firmware updates, and automated deployment tools. It enables efficient management without requiring physical access to the server.
