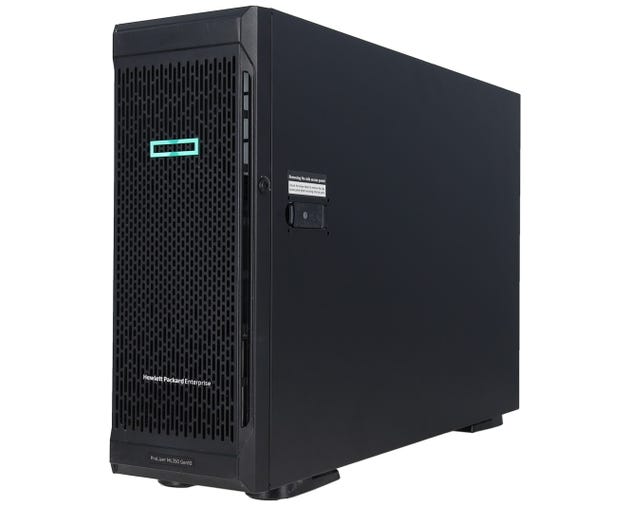

• Black HPE ProLiant ML350 Gen10 tower server with perforated front panel
1 1

HPE

HPE HPE-ML350-G10 | ProLiant ML350 Gen10 2-Socket Tower Server, 3TB DDR4

HPE-ML350-G10

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant ML350 Gen10 is a versatile dual-socket tower server engineered for growing SMBs, branch offices, and enterprise data centers. Supporting up to two Intel Xeon Scalable processors (1st or 2nd Gen, up to 28 cores), 24 DIMM slots for up to 3TB DDR4 memory, and flexible storage configurations including 8-24 SFF or 8-12 LFF drive bays with NVMe support, this server delivers exceptional performance and expandability. With Smart Array S100i/P408i-a/E208i-a RAID controllers, embedded 4x 1GbE networking, iLO 5 management, hot-plug redundant Flex Slot power supplies, and 8 PCIe 3.0 slots for GPU or expansion cards, it provides the ideal foundation for compute-intensive workloads, virtualization, and storage-heavy applications.

Features

Dual-socket Intel Xeon Scalable processor support (1st and 2nd Gen) for compute-intensive workloads
- Up to 3TB DDR4 SmartMemory (2933 MT/s) across 24 DIMM slots for high-performance virtualization and in-memory databases
- Flexible storage architecture: 8-24 SFF or 8-12 LFF hot-swap bays with support for SAS, SATA, and NVMe drives
- HPE Smart Array RAID controllers (S100i, E208i-a, P408i-a, P816i-a) with optional cache backup for data protection
- 8 PCIe 3.0 expansion slots supporting GPUs (up to 4), NICs, HBAs, and workload accelerators
- Embedded 4x 1GbE networking with HPE Ethernet 1Gb 4-port 369i LOM
- HPE iLO 5 management with integrated remote console, virtual media, Intelligent Provisioning, and RESTful API
- Silicon Root of Trust and Runtime Firmware Validation for firmware-level security and intrusion detection
- Hot-plug redundant HPE Flex Slot power supplies (500W/800W/1600W) for uptime and power efficiency
- 4U tower form factor with optional rack conversion kit for 5U rackmount deployment
- HPE InfoSight integration for predictive analytics and proactive issue resolution
- Support for mixed SFF/LFF storage configurations for tiered storage flexibility
- Redundant hot-plug fan kit option for advanced cooling in high-density configurations

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 4U tower (rack-convertible)
- Processor: Dual-socket Intel Xeon Scalable (1st or 2nd Gen), Bronze to Platinum, 4-28 cores per processor
- Memory: 24 DIMM slots, DDR4 RDIMM/LRDIMM, 2666/2933 MT/s, up to 3TB maximum capacity
- Storage: Flexible configurations - 8/16/24 SFF hot-swap or 4/8/12 LFF hot-swap drive bays; supports 12Gb/s SAS, SATA, and NVMe SSD (up to 8 NVMe)
- RAID Controllers: HPE Smart Array S100i SR Gen10 (software RAID), P408i-a, P816i-a, or E208i-a (depending on model)
- Network: Embedded 4x 1GbE LOM (HPE Ethernet 1Gb 4-port 369i adapter)
- Expansion: 8 PCIe 3.0 slots (mixed x16 and x8)
- Management: HPE iLO 5 with embedded management, remote console, and monitoring
- Power Supply: Hot-plug redundant HPE Flex Slot PSUs (500W, 800W, or 1600W options)
- Dimensions (Tower): Approx. 175mm (W) x 443mm (D) x 447mm (H)
- Operating Systems: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, ClearOS

FAQs

Q: What processors are supported in the HPE ProLiant ML350 Gen10?
A: The ML350 Gen10 supports up to two Intel Xeon Scalable processors, including both 1st Gen (Bronze 3100, Silver 4100, Gold 5100/6100, Platinum 8100 series) and 2nd Gen (Bronze 3200, Silver 4200, Gold 5200/6200, Platinum 8200 series) families. Processors range from 4 cores up to 28 cores, with TDP from 85W to 205W.

Q: Can I mix SFF and LFF drive bays in the same server?
A: Yes, the ML350 Gen10 supports mixed SFF and LFF drive cages within the same chassis, allowing tiered storage configurations. This flexibility enables you to combine high-capacity LFF drives for bulk storage with faster SFF SSDs for performance-critical applications.

Q: What RAID controller options are available?
A: The ML350 Gen10 offers multiple Smart Array controllers: the S100i SR Gen10 (software RAID, UEFI only, SATA RAID 0/1/5/10), E208i-a (entry-level hardware RAID), P408i-a (performance RAID with optional cache backup), and P816i-a (high-performance). For production environments requiring SAS support, performance, or Linux/VMware, a hardware controller is recommended.

Q: Does this server support NVMe drives?
A: Yes, the ML350 Gen10 supports up to 8 SFF NVMe PCIe drives when configured with the SFF chassis, 8SFF NVMe Express Bay Enablement Kit (with two x4 NVMe riser boards), and redundant fan kit. NVMe support provides ultra-low latency storage ideal for high-IOPS database, virtualization, and real-time analytics workloads.

Q: What is the maximum memory configuration?
A: The server supports up to 3TB of DDR4 memory using 24 DIMM slots (12 per processor socket). To reach 3TB, you must use 128GB LRDIMM modules with compatible 2nd Gen Intel Xeon Scalable processors (M-series SKUs supporting 1.5TB per socket). Memory speeds of 2666 MT/s or 2933 MT/s are supported. RDIMM and LRDIMM cannot be mixed.
