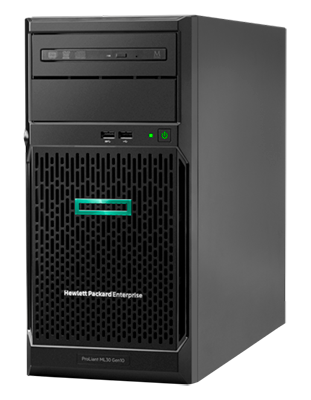

• HPE ProLiant ML30 Gen10 tower server with green LED lights
1 1

HPE

HPE HPE-ML30-G10-PLUS | ProLiant ML30 Gen10 Plus Tower Server, Xeon E-2300

HPE-ML30-G10-PLUS

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant ML30 Gen10 Plus is a compact tower server designed for small offices and remote branches running on-premises or hybrid cloud workloads. Powered by Intel Xeon E-2300 series processors with up to 8 cores and supporting up to 128GB DDR4 ECC memory, it delivers enterprise-class performance with flexible storage options of 4 LFF or 8 SFF hot-plug drives. Advanced management via iLO 5, PCIe Gen4 expansion, and optional redundant power supply provide reliability and scalability for growing businesses.

Features

Intel Xeon E-2300 series processor support with up to 8 cores and 3200 MT/s memory speed
- PCIe Gen4 expansion slot for high-bandwidth networking, storage, or GPU cards
- HPE iLO 5 Standard with silicon root of trust for secure remote management
- Flexible storage with support for up to 72TB across hot-plug LFF or SFF bays
- Intel VROC SATA software RAID with RAID 0, 1, 5, 10 support
- Optional HPE Smart Array E208i-p controller for 12Gb/s SAS/SATA performance
- Embedded dual 1GbE network ports with Broadcom BCM5720 controller
- M.2 slot for high-speed NVMe or SATA boot drives
- Optional redundant 500W Flex Slot power supply with hot-plug capability
- Tool-free access to internal components for easy serviceability
- Active Health System logging for proactive monitoring and support
- Intelligent Provisioning for rapid OS deployment and updates

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Processor: Single-socket Intel Xeon E-2300 series, up to 8 cores, 95W TDP
- Memory: 4x DDR4 ECC UDIMM slots, 3200 MT/s, up to 128GB maximum capacity
- Storage: Up to 4x LFF (3.5-inch) or 8x SFF (2.5-inch) hot-plug or non-hot-plug drive bays, up to 72TB capacity
- RAID: Embedded Intel VROC SATA software RAID (RAID 0/1/5/10); optional HPE Smart Array E208i-p SR Gen10 controller
- Network: Dual embedded Broadcom BCM5720 1GbE RJ45 ports
- Expansion: 4x PCIe slots including 1x PCIe Gen4 x16, 2x PCIe Gen3 x16, 1x PCIe Gen3 x8
- Boot Options: Onboard M.2 slot with NVMe/SATA SSD support
- Management: HPE iLO 5 Standard with remote access, Active Health System, Intelligent Provisioning; optional dedicated iLO management port
- Power Supply: 350W standard non-redundant, optional 500W Flex Slot redundant PSU with Gold/Platinum efficiency
- Form Factor: 4U tower, convertible to rack mount with optional rail kit

FAQs

Q: What processors are compatible with the ML30 Gen10 Plus?
A: The ML30 Gen10 Plus supports single-socket Intel Xeon E-2300 and E-2200 series processors with up to 8 cores and 95W TDP, providing enhanced performance over the Gen10 model which used E-2100 series CPUs.

Q: Can I configure this server with redundant power supplies?
A: Yes, the ML30 Gen10 Plus supports an optional 500W Flex Slot redundant power supply with Gold or Platinum efficiency. The standard configuration includes a single 350W non-redundant power supply.

Q: What RAID options are available on this server?
A: The server includes embedded Intel VROC SATA software RAID supporting RAID 0, 1, 5, and 10 as standard. For enhanced performance and SAS drive support, optional HPE Smart Array controllers like the E208i-p can be added, providing 12Gb/s throughput.

Q: Does this server support both LFF and SFF drives?
A: The ML30 Gen10 Plus is available in chassis configurations supporting either 4x LFF hot-plug or non-hot-plug drives, or 8x SFF hot-plug drives. You select the chassis type at order; they are not interchangeable post-purchase.

Q: What PCIe generation does this server support?
A: The ML30 Gen10 Plus features 4 PCIe expansion slots with enhanced Gen4 support on slot 1 (x16), providing increased bandwidth over the Gen10 model. The remaining slots are PCIe Gen3 for backward compatibility with existing expansion cards.
