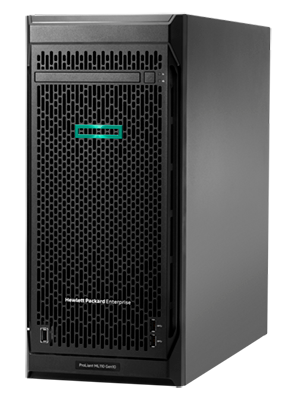

• HPE ProLiant ML110 G10 tower server, black silver perforated front
1 1

HPE

HPE HPE-ML110-G10 | ProLiant ML110 Gen10 Tower Server, Xeon Scalable, 192GB Max

HPE-ML110-G10

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant ML110 Gen10 is a single-socket tower server designed for small to mid-sized businesses and remote office deployments. Supporting Intel Xeon Scalable processors up to 16 cores, 192GB DDR4 memory, and up to 16 SFF or 8 LFF drive bays, it delivers enterprise-class performance and expandability in a compact 4.5U form factor. With iLO 5 management, five PCIe 3.0 slots, and optional redundant power and cooling, it provides reliable infrastructure for growing workloads.

Features

Intel Xeon Scalable processor support (1st/2nd Gen) up to 16 cores for powerful compute performance
- HPE iLO 5 remote management with Intelligent Provisioning for simplified deployment and administration
- Silicon Root of Trust, Runtime Firmware Validation, and Secure Recovery for hardware-level security
- Flexible storage configurations: up to 8 LFF or 16 SFF hot-plug drive bays with multiple controller options
- HPE Smart Array S100i SR Gen10 software RAID with support for RAID 0/1/5/10
- Dual-port embedded 1GbE networking with Broadcom 5720-based HPE 332i adapter
- Five PCIe 3.0 expansion slots for network cards, storage controllers, and GPU acceleration
- Support for up to two GPUs (one single-wide and one double-wide) for graphics or AI workloads
- Optional redundant power supply and fan configurations for high availability
- Tool-free chassis access with lockable side panels for security and ease of service
- Energy-efficient design with 550W standard PSU and optional Platinum-rated hot-plug PSUs
- HPE OneView and iLO integration for centralized infrastructure management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 4.5U Tower (convertible to rack mount)
- Processor: Single-socket Intel Xeon Scalable (1st/2nd Gen), up to 16 cores, up to 110W TDP
- Memory: 6x DDR4 DIMM slots, maximum 192GB using 32GB RDIMMs, 2933 MT/s
- Storage Controller: HPE Smart Array S100i SR Gen10 SW RAID (10 SATA ports), supports RAID 0/1/5/10; optional P408i-p with cache
- Drive Bays: Up to 8x LFF (3.5-inch) or 16x SFF (2.5-inch) hot-plug bays (configuration dependent)
- Network: Embedded dual-port 1GbE (Broadcom 5720-based HPE 332i adapter)
- Expansion: 5x PCIe 3.0 slots; supports up to 2 GPUs (one single-wide, one double-wide)
- Management: HPE iLO 5 with Intelligent Provisioning, Silicon Root of Trust, Secure Recovery
- Power Supply: 550W ATX (standard non-redundant); optional redundant configurations available
- Cooling: 2x non-hot-plug fans (standard); optional redundant fan kit available
- Dimensions: 440mm (W) x 480mm (D) x 195mm (H)
- Operating System Support: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi

FAQs

Q: What Intel Xeon processor families are supported?
A: The ML110 Gen10 supports both 1st and 2nd generation Intel Xeon Scalable processors (Bronze, Silver, and Gold series) up to 16 cores and 110W TDP, providing scalable performance for diverse workloads.

Q: Can this server be rack-mounted?
A: Yes, the ML110 Gen10 can be converted from tower to rack mount configuration using the optional HPE Tower to Rack Conversion Kit, occupying 4.5U of rack space.

Q: What RAID levels are supported with the standard controller?
A: The embedded Smart Array S100i SR Gen10 software RAID controller supports RAID 0, 1, 5, and 10 for SATA drives across up to 10 ports. For enhanced performance and cache-backed protection, optional Smart Array P408i-p or E208i-p controllers are available.

Q: What is the maximum memory configuration?
A: The server supports up to 192GB of DDR4 ECC registered memory across six DIMM slots using 32GB modules at speeds up to 2933 MT/s. Load-reduced and non-volatile DIMMs are not supported.

Q: Is redundant power and cooling available?
A: Yes, the ML110 Gen10 supports optional redundant power supply configurations (using Flex Slot Platinum Hot Plug PSUs with RPS Enablement Kit) and redundant fan kits for enhanced reliability in mission-critical environments.
