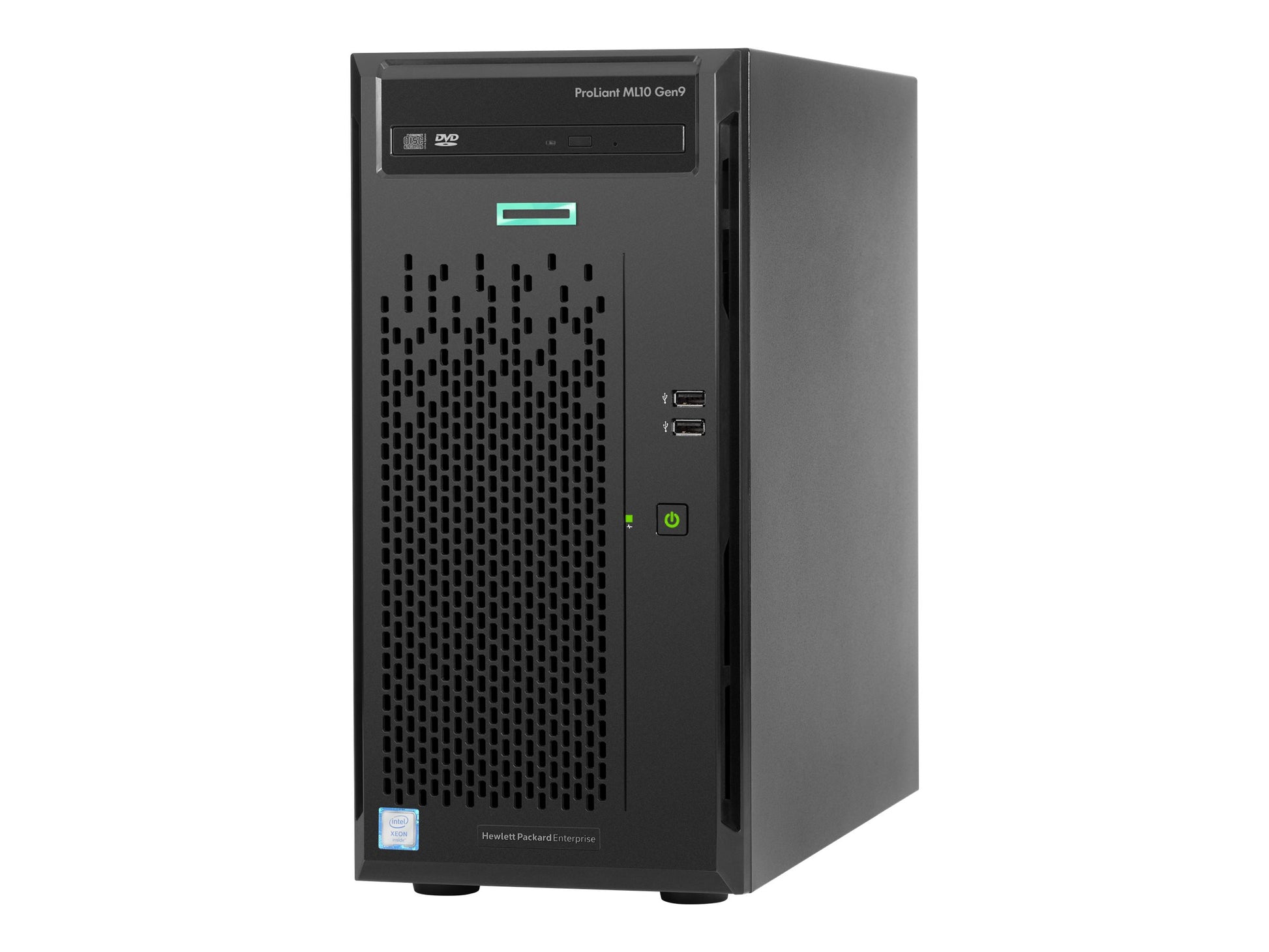

• Black HPE ProLiant ML10 G9 tower server with perforated front panel
1 1

HPE

HPE HPE-ML10-G9 | ProLiant ML10 Gen9 Tower Server, Xeon E3 v5, 64GB Max

HPE-ML10-G9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant ML10 Gen9 is an entry-level single-socket tower server designed for small businesses and remote offices. It supports Intel Xeon E3-1200 v5, Pentium, or Core i3 processors, up to 64GB DDR4 ECC memory, and up to six 3.5-inch SATA drive bays for scalable local storage. Compact, quiet, and affordable, it delivers enterprise-grade performance and expandability with four PCIe 3.0 slots, dual Gigabit Ethernet, and optional Smart Array RAID for data protection.

Features

Single-socket Intel Xeon E3-1200 v5, Pentium, or Core i3 processor support
- Up to 64GB DDR4-2133 ECC unbuffered memory (4 DIMM slots)
- 4 to 6 x 3.5-inch LFF SATA storage bays, up to 24TB total capacity
- Dynamic Smart Array B140i SATA controller with optional H241 Smart HBA for RAID 0/1/5
- 4x PCIe 3.0 expansion slots (full-height/half-length)
- Dual embedded Gigabit Ethernet ports
- Intel Active Management Technology 11.0 (AMT) for remote management on Xeon configurations
- Optional iLO 4 dedicated port kit for advanced out-of-band management
- Trusted Platform Module (TPM) 2.0 option for hardware-based security
- Kensington lock slot for physical security
- Compact 4U tower design, quiet operation suitable for office environments
- Energy-efficient 300W power supply
- Optional DVD-RW optical drive support
- Tool-less chassis access for easy maintenance and upgrades

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 4U Tower, convertible to rack
- Processor: Single-socket Intel Xeon E3-1200 v5, Pentium, or Core i3 (2 or 4 cores)
- Memory: 4 DIMM slots, DDR4 ECC UDIMM, up to 64GB, 2133 MT/s
- Storage: 4–6 x 3.5-inch LFF SATA bays (non-hot-plug), supports up to 24TB
- Network: 2x 1GbE ports (embedded)
- Expansion: 4x PCIe 3.0 slots (x4, x4, x16, x8 physical)
- Storage Controller: Dynamic Smart Array B140i SATA controller (embedded), optional H241 Smart HBA with RAID 0/1/5
- Management: Intel Active Management Technology 11.0 (Xeon only), optional iLO 4 port kit available
- I/O: 4x USB 3.0, 1x DisplayPort, 1x VGA (via adapter)
- Power Supply: 300W non-redundant PSU
- Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Certifications: Energy Star, EPEAT

FAQs

Q: Does the ML10 Gen9 support hot-swap drive bays?
A: No, the ML10 Gen9 uses non-hot-plug SATA drives. The server must be powered down before installing, removing, or upgrading hard drives.

Q: Can I expand storage beyond the standard 4 bays?
A: Yes, up to 6 LFF drives are supported. The 5th drive requires the HPE ML10 Gen9 HDD Cable Screw Kit (841425-B21), and the 6th drive requires the Drive Enablement Kit (836739-B21).

Q: Does the ML10 Gen9 include iLO management?
A: The ML10 Gen9 does not include embedded iLO. Xeon processor configurations support Intel Active Management Technology 11.0 for remote management. An optional dedicated iLO 4 port kit can be added via PCIe expansion.

Q: What RAID levels are supported?
A: The embedded Dynamic Smart Array B140i supports basic SATA storage. The optional H241 Smart HBA enables RAID 0, 1, and 5 with secure encryption capabilities in simple RAID mode.

Q: What is the maximum memory capacity?
A: The ML10 Gen9 supports up to 64GB of DDR4 ECC unbuffered (UDIMM) memory across 4 DIMM slots, with speeds up to 2133 MT/s depending on the processor model selected.
