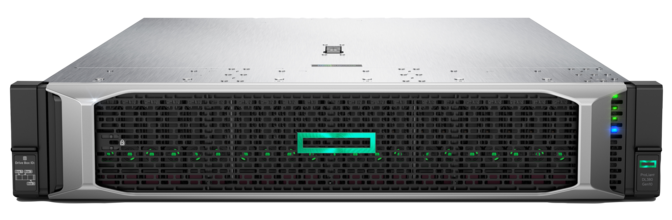

HPE HPE-DL385-G10-PLUS | ProLiant DL385 G10 Plus 2U Dual AMD EPYC Server

HPE-DL385-G10-PLUS

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant DL385 Gen10 Plus is a versatile 2U rack server powered by dual AMD EPYC 7002 or 7003 series processors, delivering up to 128 cores for virtualization, high-performance computing, and software-defined storage workloads. With support for up to 8TB DDR4 memory, PCIe Gen4 expansion, flexible storage configurations including NVMe, SAS, and SATA drives, and HPE iLO 5 remote management, this platform provides enterprise-grade performance and security for demanding datacenter environments. Available in multiple chassis configurations from 8 LFF to 24 SFF or 16 NVMe drive bays, the DL385 Gen10 Plus scales to meet diverse application requirements.

Features

Dual-socket AMD EPYC 7002/7003 series processor support with up to 128 cores total
- PCIe Gen4 support for doubled data transfer rates compared to PCIe Gen3
- Up to 8TB DDR4 memory capacity with 32 DIMM slots and speeds up to 3200 MT/s
- Flexible modular storage with support for SAS, SATA, and NVMe drives in various configurations
- HPE Smart Array and Tri-Mode RAID controllers for advanced storage management
- OCP 3.0 slot for standardized, tool-less networking up to 100GbE
- Up to 8 PCIe Gen4 expansion slots across three optional riser cages
- GPU acceleration support for up to 8 single-wide or 3 double-wide graphics cards
- HPE iLO 5 remote management with embedded security and intelligent provisioning
- Silicon root of trust with AMD Secure Processor for firmware validation
- Hot-plug redundant power supplies and fans for high availability
- HPE Flexible Slot power supplies (800W to 1600W) with 80 PLUS Platinum efficiency
- Tool-less chassis design with easy-access components for rapid serviceability
- Support for multiple operating systems including Windows Server, Linux, and VMware
- Optimized for VDI, software-defined storage, HPC, and memory-intensive workloads

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U rack-mount server
- Processor Support: Dual-socket AMD EPYC 7002 series (2nd Gen) or 7003 series (3rd Gen, v2 model), up to 64 cores per processor
- Maximum Cores: Up to 128 cores total with dual processors installed
- Memory: 32 DIMM slots (16 per processor), supports up to 8TB DDR4 RDIMM/LRDIMM at speeds up to 3200 MT/s
- Storage Configurations: Multiple options including 8/12 LFF SAS/SATA, 8/24 SFF SAS/SATA, or 16 SFF NVMe; up to 32 total drives with optional mid-tray and rear cages
- Storage Controllers: HPE Smart Array controllers and Tri-Mode controllers supporting NVMe, SAS, and SATA drives
- Expansion Slots: Up to 8 PCIe Gen4 slots across primary, secondary, and tertiary risers
- Network: OCP 3.0 slot supporting 1GbE, 10GbE, 25GbE, or 100GbE NICs; optional PCIe stand-up network adapters
- GPU Support: Up to 8 single-wide or 3 double-wide GPUs for workload acceleration
- Remote Management: HPE iLO 5 with dedicated management port, intelligent provisioning, and optional iLO Advanced licensing
- Power Supply: HPE Flexible Slot power supplies, redundant hot-plug capable, 800W to 1600W options, 80 PLUS Platinum certified
- Dimensions: 2U height, 30 inches depth, standard 19-inch EIA rack compatible
- Operating Systems: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere, and other certified OS platforms

FAQs

Q: What processor generations are compatible with the DL385 Gen10 Plus?
A: The DL385 Gen10 Plus supports AMD EPYC 7002 series (2nd generation) processors, while the DL385 Gen10 Plus v2 variant supports both AMD EPYC 7003 series (3rd generation) and select 7002 series processors. Both support up to dual 64-core processors for a maximum of 128 cores per system.

Q: Can I mix NVMe and SAS/SATA drives in the same server?
A: Yes, the DL385 Gen10 Plus offers flexible storage configurations with modular drive cages. You can configure the system with mixed drive types using optional drive cage kits, such as combining 8 NVMe drives in the front with 8 SAS/SATA drives in mid-tray and rear positions, depending on the chassis and controller configuration.

Q: What is the difference between Smart Array and Tri-Mode storage controllers?
A: Smart Array controllers provide traditional RAID capabilities for SAS and SATA drives with hardware acceleration. Tri-Mode controllers add native NVMe support alongside SAS and SATA, allowing you to mix all three drive types on a single controller and optimize storage for different workload requirements without separate HBAs.

Q: How does OCP 3.0 networking differ from traditional PCIe NICs?
A: The OCP 3.0 slot provides a standardized, tool-less networking option that saves PCIe expansion slots for other uses. OCP 3.0 adapters support various speeds from 1GbE to 100GbE and can be easily swapped without opening the chassis, while still allowing traditional PCIe stand-up network adapters for additional connectivity.

Q: What workloads is the DL385 Gen10 Plus best suited for?
A: The DL385 Gen10 Plus excels at virtualization with high VM density, software-defined storage, high-performance computing, database workloads, and analytics applications. The v2 variant with EPYC 7003 processors is particularly well-suited for machine learning, deep learning, and big data analytics due to enhanced compute density and GPU support.
