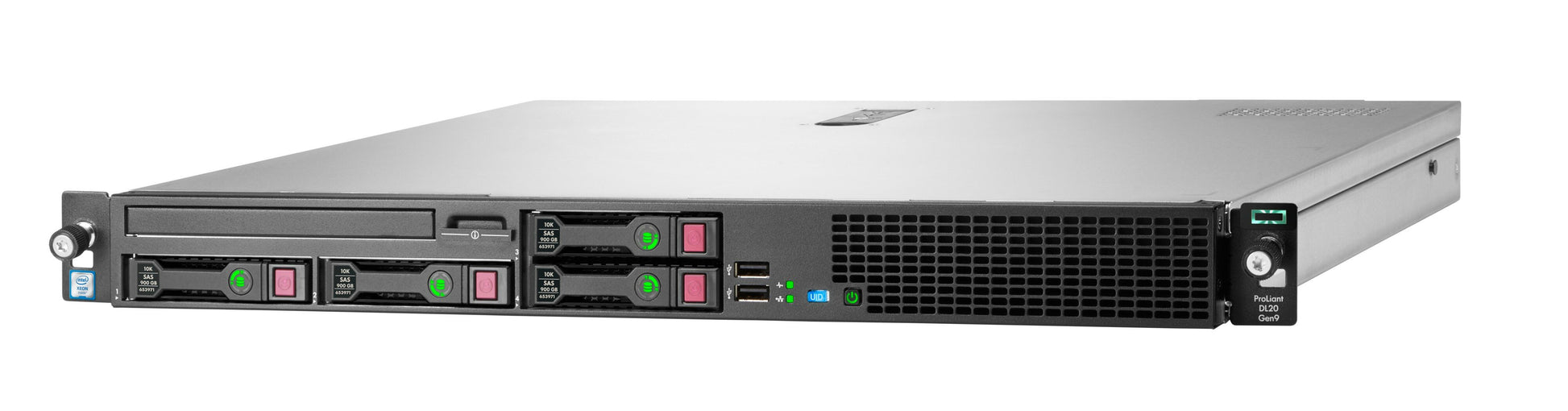

• HPE DL20 Gen9 1U server rack with silver chassis, black accents, pink buttons
1 1

HPE

HPE HPE-DL20-G9 | 1U short-depth | Xeon E3-1200 v5/v6 | 4x SFF or 2x LFF bays | 4 DIMM up to 64GB DDR4 ECC | 2x 1GbE LOM (optional FlexibleLOM) | PCIe Gen3 | iLO 4

HPE-DL20-G9

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

Versatile 1U entry server built for small offices, retail, and edge IT. Supports Intel Xeon E3-1200 v5/v6 processors with up to 64GB ECC DDR4 across 4 DIMM slots. Offers up to 4 SFF or 2 LFF drive bays with RAID options for data protection, plus PCIe Gen3 expansion for NICs and HBAs. Dual 1GbE onboard with optional FlexibleLOM for faster connectivity, and iLO 4 provides secure, remote lifecycle management.

Features

- Compact, quiet 1U server for branch and SMB environments
- Reliable performance with Xeon E3 CPUs and ECC memory
- Flexible storage configurations with hardware RAID options
- Easy expandability through PCIe Gen3 and FlexibleLOM
- Secure, remote lifecycle management with iLO 4

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U short-depth rack
- CPU: Intel Xeon E3-1200 v5/v6; select Core i3/Pentium supported
- Memory: 4x DDR4 ECC UDIMM slots, up to 64GB
- Drive bays: up to 4x 2.5" SFF or 2x 3.5" LFF (varies by chassis)
- Storage: SATA; optional Smart Array SAS/SATA RAID controllers
- Networking: 2x 1GbE onboard; optional FlexibleLOM or PCIe NICs
- Expansion: PCIe Gen3 slots for NICs, RAID/HBA, etc.
- Management: iLO 4 remote management
- Power: non-redundant or redundant hot-plug (by configuration)
- OS support: mainstream Windows Server, Linux, and virtualization platforms

FAQs

Q: What is the maximum memory capacity?
A: Up to 64GB using DDR4 ECC UDIMMs across four slots.

Q: Is this suitable for shallow-depth racks?
A: Yes, the short-depth 1U chassis is designed for space-constrained environments.

Q: Can I add SSDs and HDDs together?
A: Yes, mixed media is supported; ensure your RAID controller and backplane support the chosen drives.

Q: Does it include remote management?
A: Yes, iLO 4 provides remote console and management features.

Q: Can I upgrade to 10GbE?
A: Yes, via FlexibleLOM or a PCIe 10GbE adapter.
