HPE

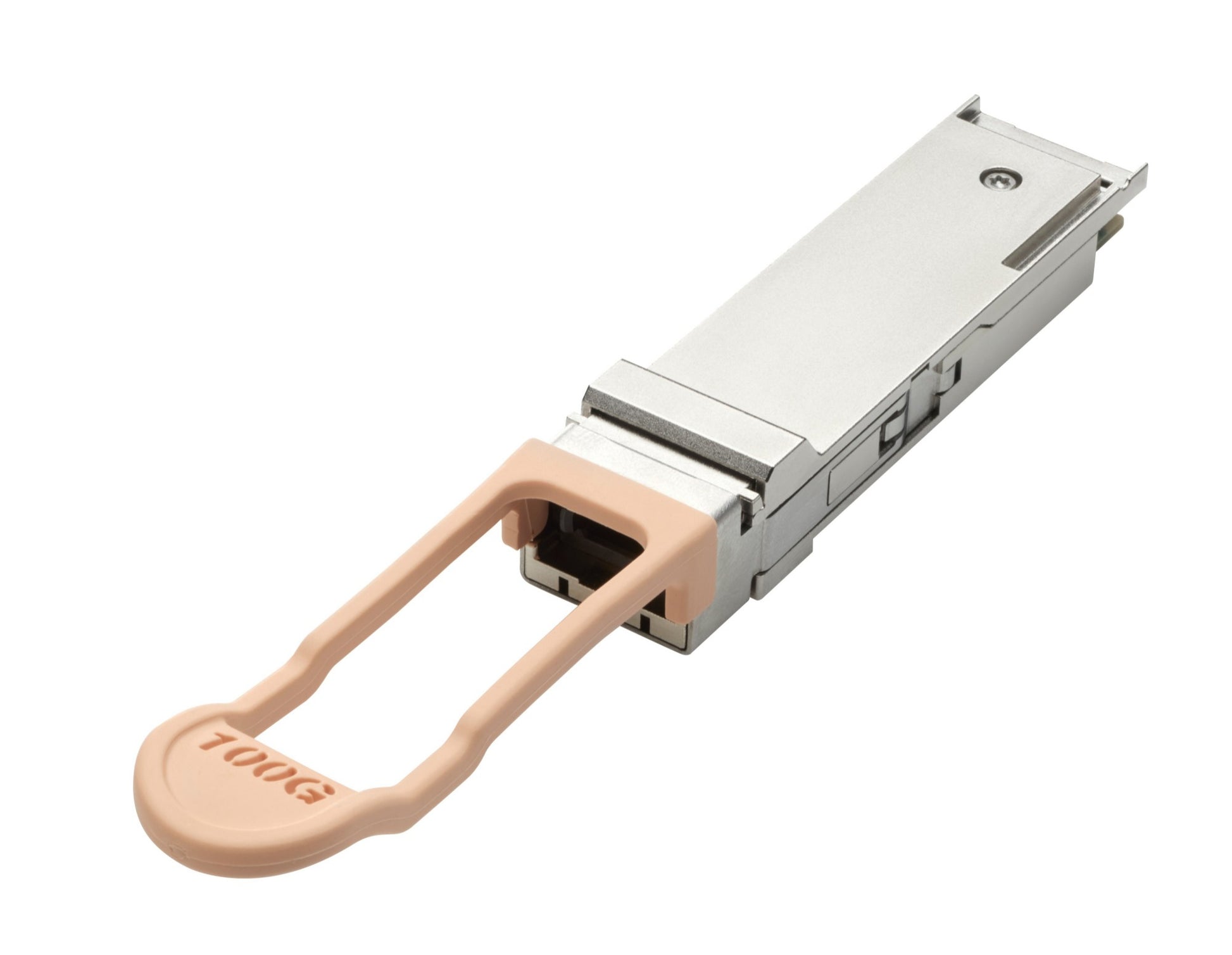

HPE 882251-B21 | Synergy 100G QSFP28 SR4 Transceiver, MPO, 100m OM4

SKU:882251-B21

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE Synergy 100G QSFP28 SR4 transceiver is a hot-pluggable optical module for short-reach multimode links in the data centre. It is listed under the HPE Synergy family and is also suited to HPE storage solutions and networking adapters, giving high-bandwidth Ethernet and Fibre Channel connectivity over MPO-terminated fibre.

This module is multi-protocol, supporting 100GbE, 4x25GbE and 4x32Gb Fibre Channel. It uses the QSFP28 form factor with a single MPO port at 850 nm and complies with IEEE 802.3 100GBASE-SR4. Link distance is 100 m on OM4 fibre at 1.0 dB channel loss, or 85 m on OM4 at 1.5 dB loss, and OM3 and OM4 multimode cabling are supported.

It draws a maximum of 3.5 W from a 3.3 V supply through the host port and operates from 0 to 70 C. For fibre patch cords, use UPC-polished MPO connectors, as APC polish is not recommended.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Standards-based 100GBASE-SR4 optical connectivity over multimode fibre
- Multi-protocol support for 100GbE, 4x25GbE and 4x32Gb Fibre Channel
- Hot-pluggable QSFP28 form factor
- Class 1 laser eye safety to IEC-60825 and CDRH
- Suited to HPE Synergy, HPE storage solutions and networking adapters
- MPO connector for parallel multimode fibre links

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: QSFP28
- Ports: 1 x MPO 100GbE port (IEEE 802.3 100GBASE-SR4)
- Connector type: MPO
- Wavelength: 850 nm
- Fibre type: Multimode, OM3 and OM4
- Link distance: 100 m on OM4 (1.0 dB loss), 85 m on OM4 (1.5 dB loss)
- Protocols: 100GbE, 4x25GbE and 4x32Gb Fibre Channel
- Voltage supply: 3.3 V
- Maximum power consumption: 3.5 W
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Operating relative humidity: 5% to 95%, noncondensing
- Dimensions (H x W x D): 18.35 x 122.3 x 12.90 mm
- Weight: 44 g
- Laser safety: Class 1 (IEC-60825 and CDRH)

FAQs

Q: What fibre does this transceiver need?
A: It uses multimode OM3 or OM4 fibre terminated with MPO connectors. The 100 m reach applies to OM4 at 1.0 dB channel loss.

Q: Which protocols does it support?
A: It supports 100GbE, 4x25GbE and 4x32Gb Fibre Channel, so one module type can serve both Ethernet and Fibre Channel links.

Q: What type of fibre patch cord should I use?
A: Use MPO patch cords with Ultra Physical Contact (UPC) polish. Angled Physical Contact (APC) polish is not recommended for this module.

Q: How much power does it draw?
A: It runs from a 3.3 V supply and draws a maximum of 3.5 W from the host port, with no separate power supply required.

Q: What operating temperature range does it support?
A: It operates from 0 to 70 C at 5% to 95% non-condensing humidity.
