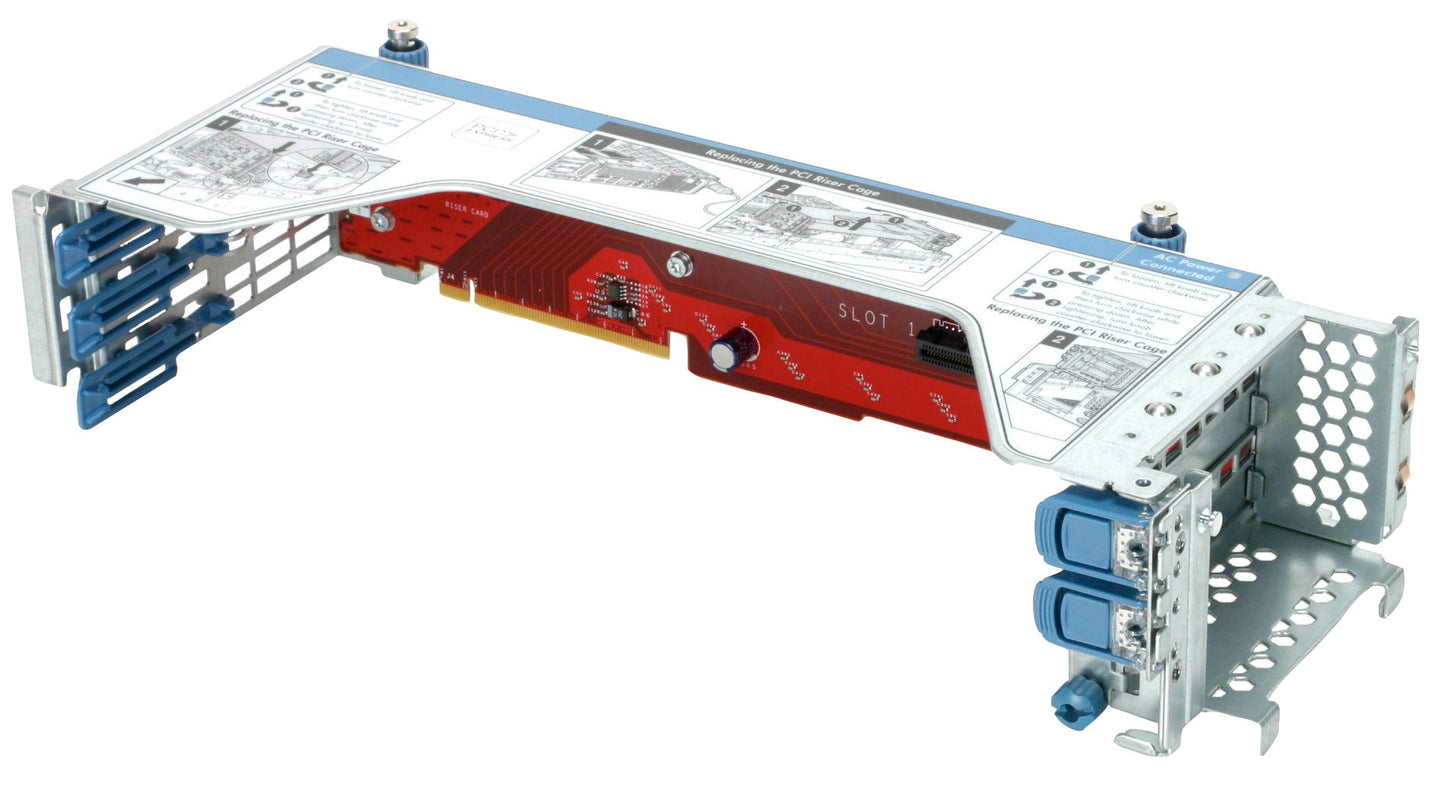

HPE 875780-B21 | DL38x Gen10 tertiary riser | 2x PCIe Gen3 x8 slots | Adds expansion capacity | Riser 3 position

SKU:875780-B21

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Expand I/O capacity on DL38x Gen10 servers with a tertiary riser that provides two additional PCIe Gen3 x8 slots. Ideal for adding NICs, HBAs, or other adapters when primary and secondary risers are populated.

Features

- Adds two PCIe Gen3 x8 slots for increased I/O density
- Optimized for DL38x Gen10 expansion architectures
- Service-friendly installation and maintenance
- Enables flexible NIC/HBA placement for balanced bandwidth

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Will this riser work in all DL38x Gen10 chassis?
A: Support depends on the specific chassis configuration and backplane. Check your server quickspecs or provide the exact model to validate.

Q: Do I need primary/secondary risers installed first?
A: In most configurations, primary and secondary risers populate first. The tertiary riser adds additional capacity where supported.

Q: Does it support GPUs?
A: GPU support varies by chassis power/thermal design and slot layout. Consult the server’s quickspecs for GPU compatibility guidance.

Technical Specifications

- Riser position: Tertiary (Riser 3)
- PCIe interface: PCIe 3.0 (Gen3)
- Slots provided: 2 x PCIe x8
- Use cases: Additional NICs, HBAs, specialty adapters
- Compatibility: DL380/DL385 Gen10 chassis (select configurations)
- Mechanical: Supports adapter form factor per chassis (FHHL/LP depends on server backplane and cover)
- Installation: Tool-less/service-friendly within supported chassis
- Package contents: Tertiary riser assembly, documentation
