HPE

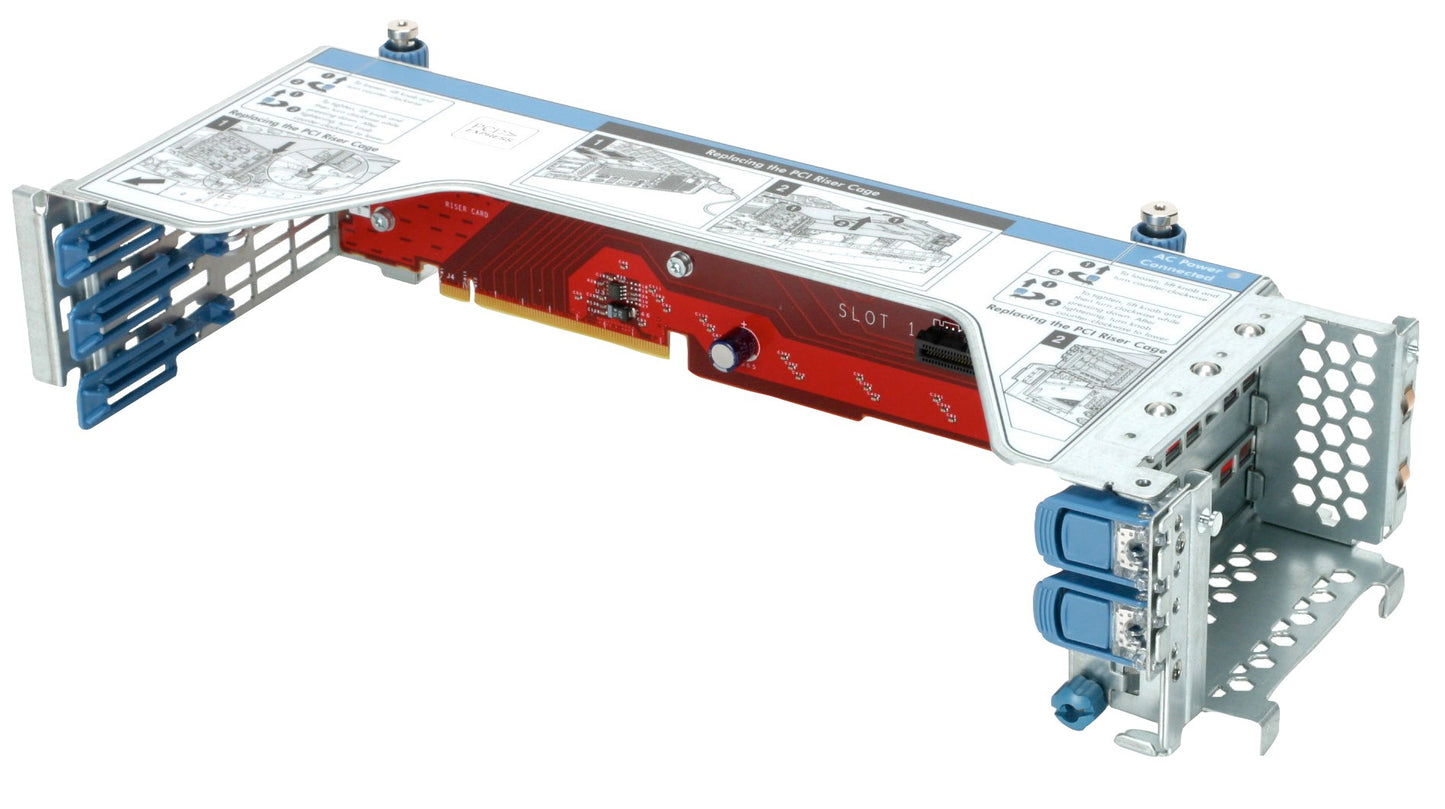

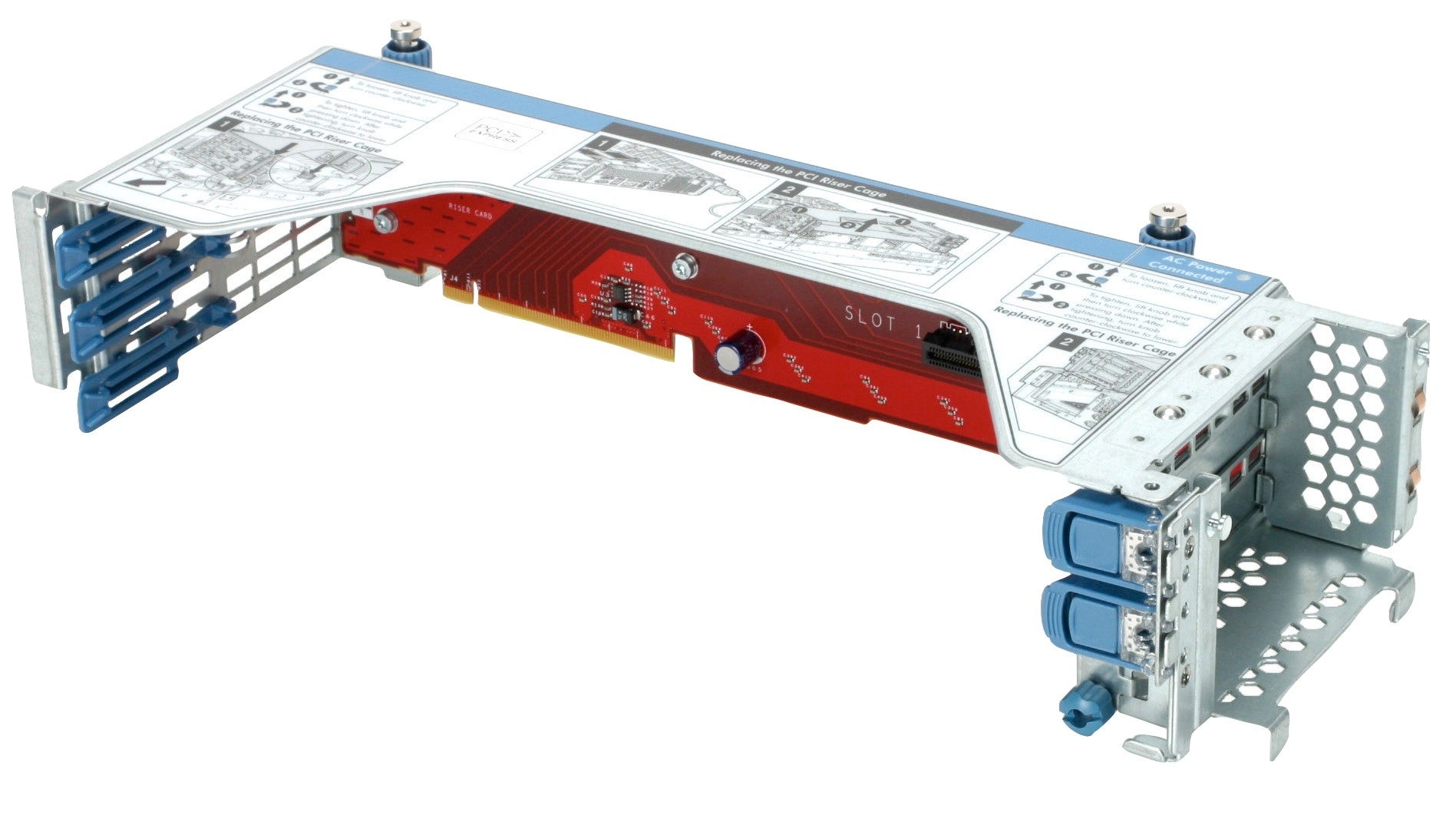

HPE 870548-B21 | Server riser, PCIe Gen3 x8/x16/x8 (3-slot), DL Gen10 compatible

SKU:870548-B21

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Expand your DL Gen10 server with three additional PCIe Gen3 slots configured x8/x16/x8 for balanced bandwidth to NICs, HBAs, GPUs, or accelerators. Designed for clean integration and reliable signal integrity within supported chassis.

Features

- Adds three PCIe Gen3 slots for scalable I/O expansion
- Balanced lane distribution for high-performance adapters
- Clean mechanical integration and signal integrity within the chassis
- Straightforward installation guided by the server’s tool-less design

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Will this riser fit any DL Gen10 model?
A: It is designed for select DL Gen10 servers. Always verify the riser option part against your exact server model and chassis configuration in the official QuickSpecs.

Q: Does it support PCIe Gen4 cards?
A: The riser is PCIe Gen3. Many Gen4/Gen3 cards are backward compatible but will operate at Gen3 speeds when installed in a Gen3 riser.

Q: Can I mix x8 and x16 cards in these slots?
A: Yes, populate cards according to each slot’s physical and electrical lane configuration (x8 or x16) and observe server-specific population rules.

Q: Are brackets or screws included?
A: It includes the riser assembly as supplied for the option kit. Any additional mounting hardware is chassis-specific; check contents in the option documentation.

Technical Specifications

- Product type: PCIe riser assembly
- PCIe version: Gen3
- Slot configuration: x8 / x16 / x8 (3 total slots)
- Intended use: Adds additional PCIe expansion capacity
- Typical add-in support: NICs, HBAs/RAIDs, accelerators (chassis-dependent)
- Installation: Tool-less/chassis-guided (varies by server model)
- Compatibility: Select DL Gen10 servers (refer to server QuickSpecs for exact fitment)
