HPE

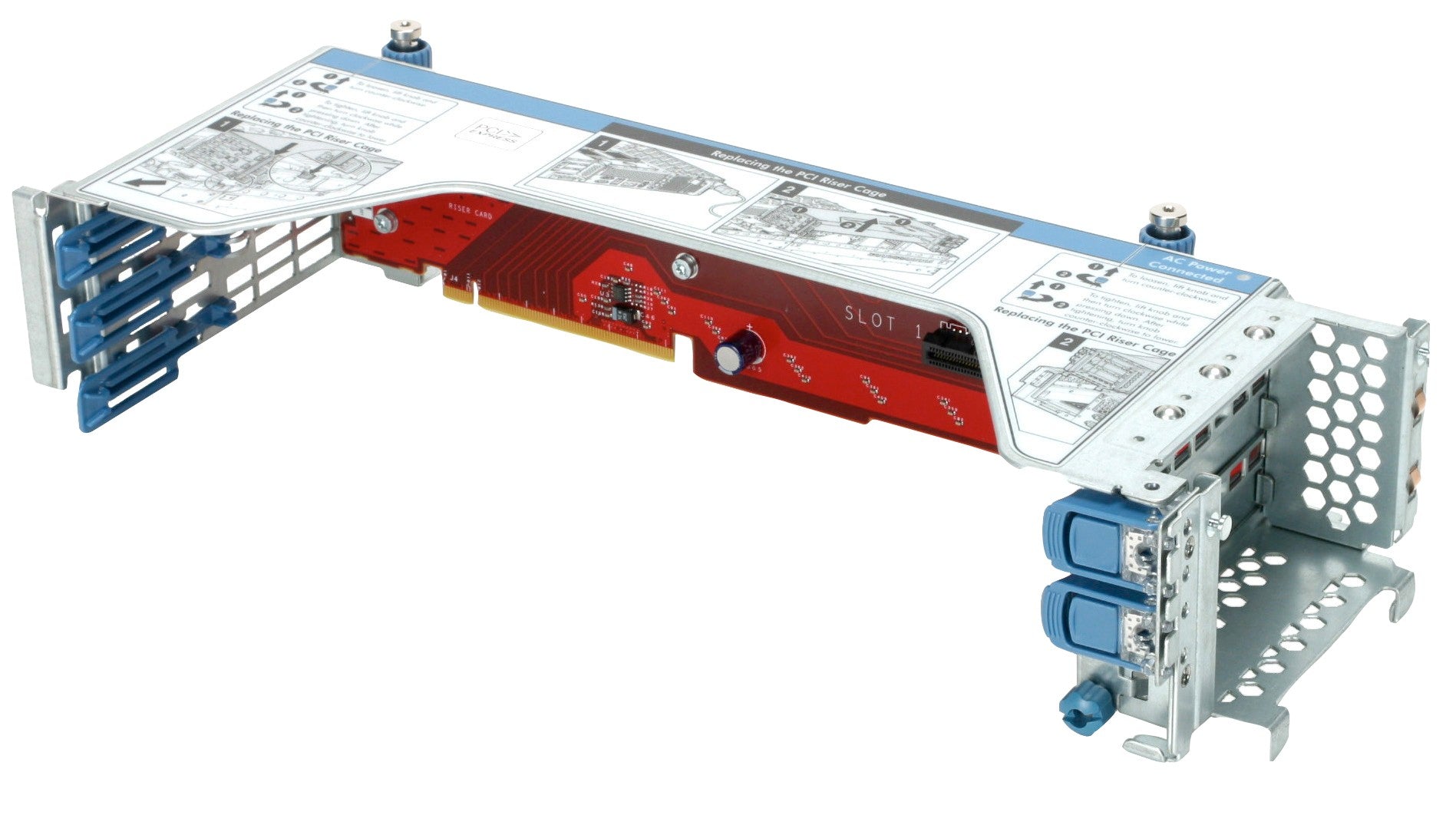

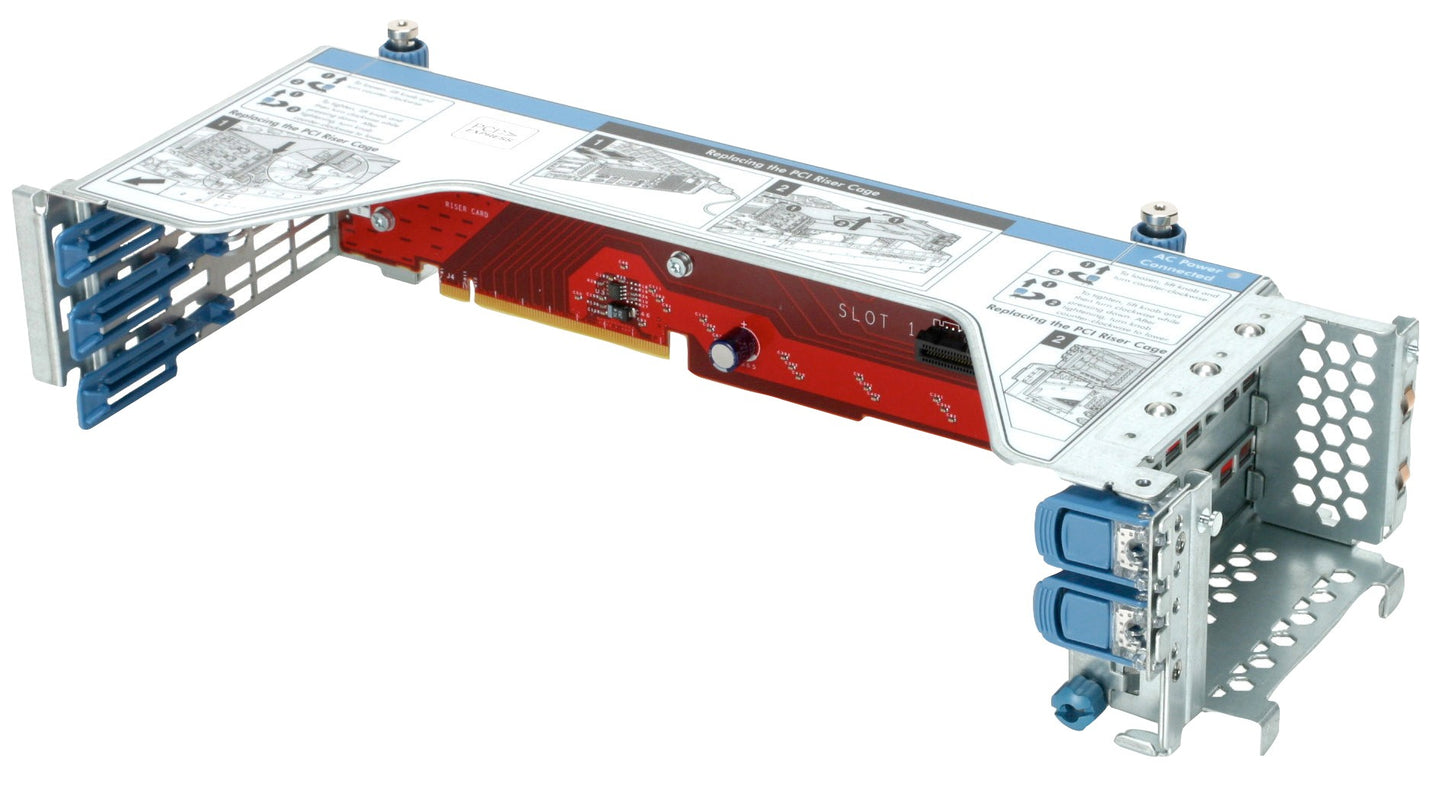

HPE 868002-B21 | DL360 Gen10 10SFF NVMe riser - 8x lanes to CPU2 + 2x to CPU1; enables up to 10 front-bay NVMe (U.2) drives

SKU:868002-B21

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

NVMe riser kit for ProLiant DL360 Gen10 10SFF configurations providing PCIe connectivity for front-bay NVMe drives. Lane mapping allocates 8 lanes to CPU2 and 2 lanes to CPU1 for balanced performance across processors. When combined with the correct NVMe backplane/cabling, enables up to 10 SFF NVMe bays (chassis dependent).

Features

- Unlocks high-performance NVMe storage in a 1U platform
- Balanced CPU lane distribution for consistent throughput
- Scales to 10 SFF NVMe bays (with appropriate backplane)
- OEM kit for reliable fit and simplified install

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Do I need two CPUs installed to use all 10 NVMe bays?
A: Yes. The kit maps 8 lanes to CPU2 and 2 lanes to CPU1; both CPUs must be populated for full use.

Q: Does this kit include the NVMe backplane?
A: No. You need the appropriate NVMe backplane and cables for your DL360 Gen10 10SFF configuration.

Q: Can I mix NVMe with SAS/SATA drives in the same chassis?
A: It depends on the specific backplane and cabling. Some configurations support mixed bays, others do not.

Q: Is this compatible with LFF DL360 Gen10 models?
A: No. It is intended for 10SFF NVMe-enabled configurations.

Technical Specifications

- Compatibility: HPE ProLiant DL360 Gen10 10SFF chassis
- Function: Provides PCIe lanes for front-bay NVMe (U.2) drive connectivity
- Lane mapping: 8x PCIe lanes from CPU2 and 2x PCIe lanes from CPU1
- Capacity: Enables up to 10 SFF NVMe bays (requires appropriate NVMe backplane and cables)
- Requirements: Dual-CPU population required to utilize all 10 lanes
- Kit contents: Riser assembly; cabling/brackets per configuration
- Note: Designed for NVMe; SAS/SATA functionality depends on backplane configuration
