HPE

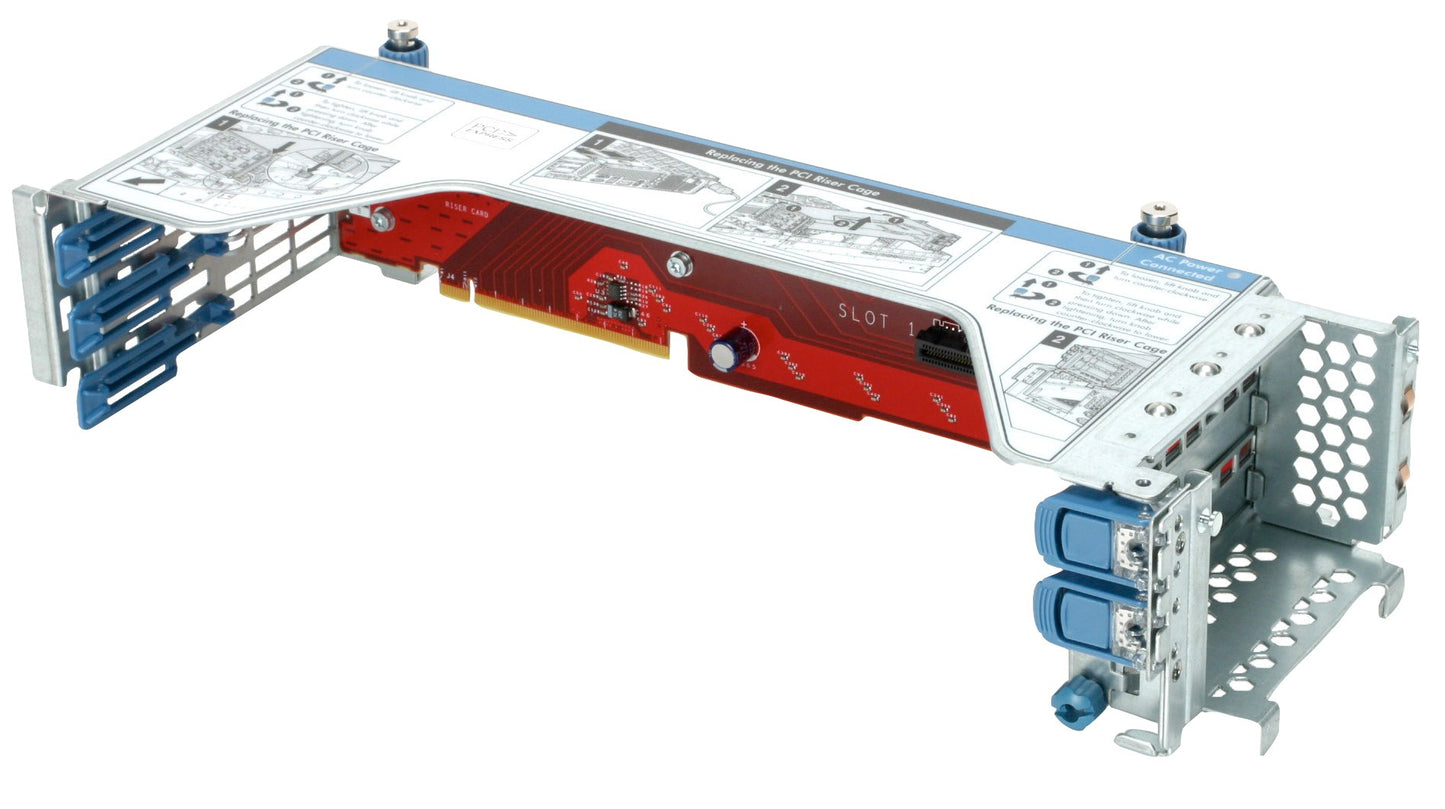

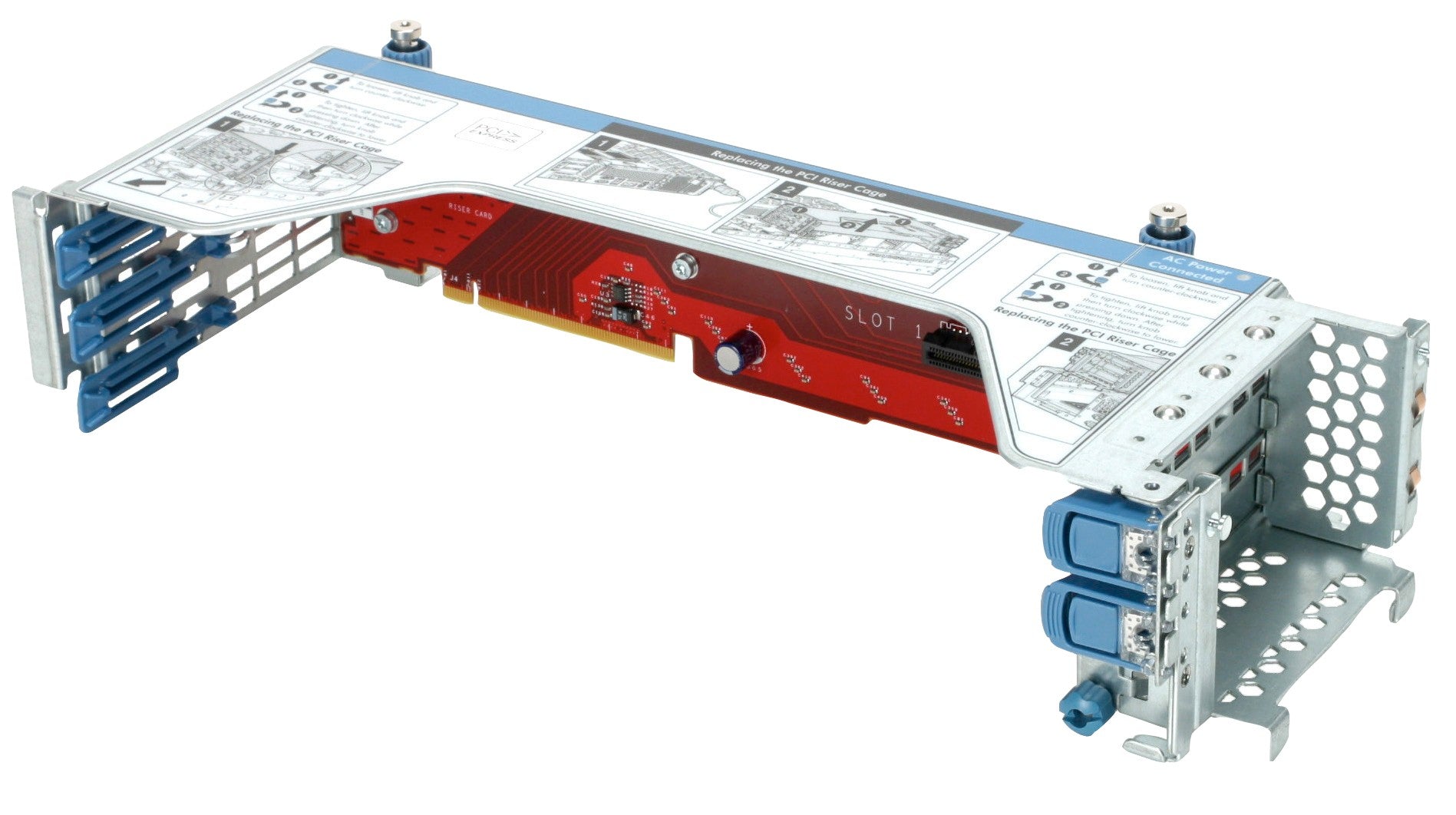

HPE 867806-B21 | DL38X Gen10 PCIe riser x8/x8/x8 with 1x SlimSAS port (supports 2x NVMe) | PCIe Gen3 | expansion for additional adapters + NVMe enablement

SKU:867806-B21

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Triple x8 PCIe riser for DL38X Gen10 platforms featuring a SlimSAS port that supports up to two NVMe drives, combining dense adapter expansion with direct NVMe connectivity. Ideal for adding NICs, storage HBAs, and enabling a pair of cabled NVMe drives.

Features

- Consolidates three PCIe Gen3 x8 slots for dense adapter expansion
- Integrated SlimSAS port enables two NVMe drives
- Balanced mechanical and thermal design for DL38X Gen10
- Ideal for mixed I/O and NVMe storage enablement
- Scales server capabilities without changing the base chassis

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: How many PCIe slots does this riser provide?
A: Three PCIe Gen3 x8 slots.

Q: How many NVMe drives are supported via SlimSAS?
A: Up to two NVMe drives using the single SlimSAS port, with the proper backplane/cabling.

Q: Are NVMe cables and backplanes included?
A: No. NVMe backplane and cables are typically separate options; verify package contents for your configuration.

Q: Does this add RAID functionality?
A: No. It provides PCIe/NVMe connectivity only; RAID features require supported controllers or software.

Q: Will it fit all DL38X Gen10 chassis variants?
A: Fit and slot mapping depend on the specific chassis and riser bay. Consult the server quick specs for your model.

Technical Specifications

- Product type: PCIe riser assembly with NVMe SlimSAS
- Riser slot layout: 3x PCIe Gen3 x8 slots
- NVMe support: 1x SlimSAS port supporting up to 2x NVMe drives
- PCIe standard: Gen3
- Compatibility: DL38X Gen10 platforms (e.g., DL380 Gen10, DL385 Gen10)
- Typical use: Add NICs/HBAs/accelerators while enabling two NVMe drives
- Cabling/backplane: NVMe drive connectivity requires appropriate NVMe backplane/cables
- Installation: Fits designated riser location per server configuration
- Notes: Check server quick specs for slot height/length support and mechanical clearance
