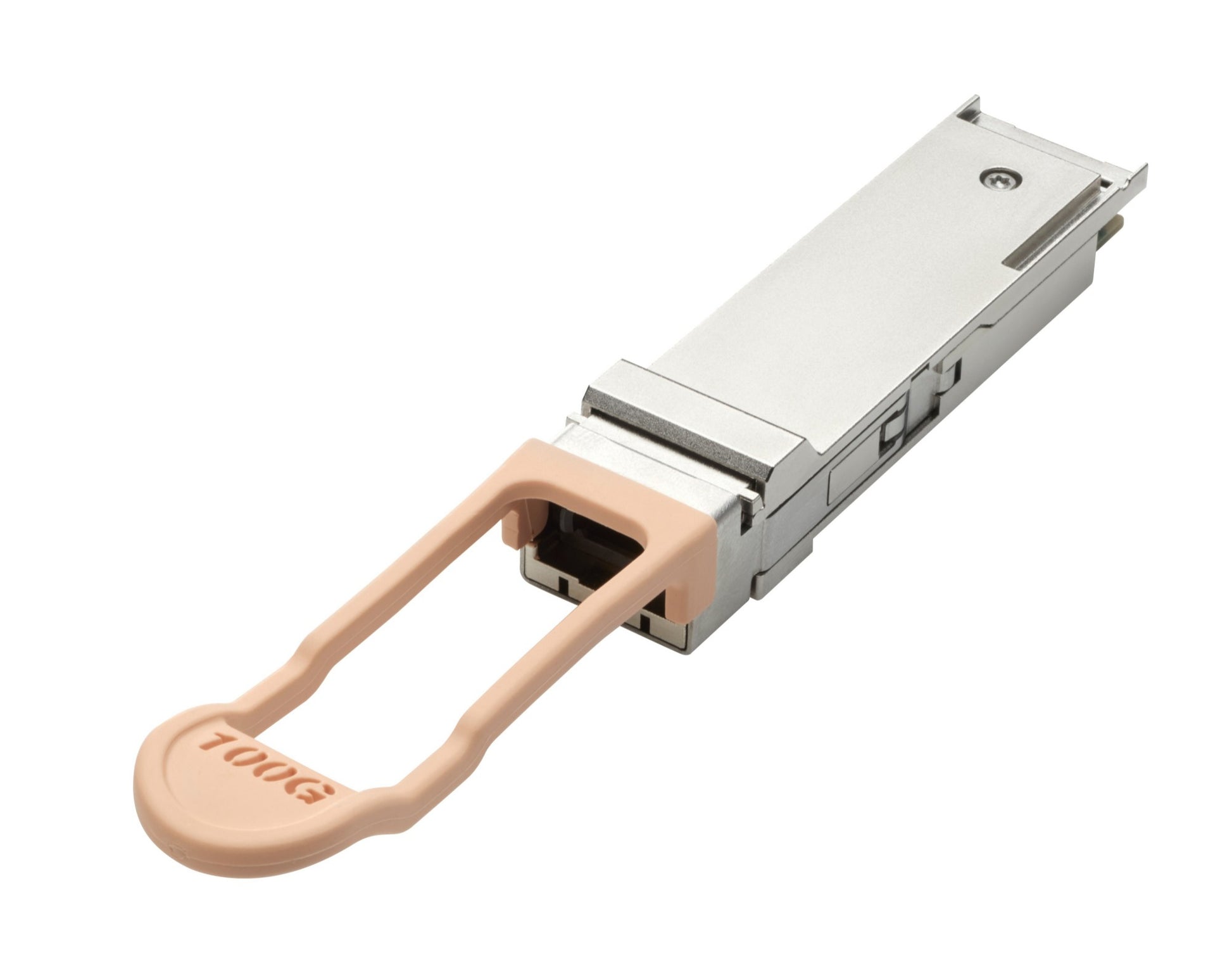

HPE 845972-B21 | 100G QSFP28 BiDi Transceiver, 855/908nm, 100m OM4
SKU:845972-B21
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This HPE 100G QSFP28 BiDi transceiver provides 100GbE over duplex LC multimode fibre, with a reach of up to 100 m on OM4. It suits short-reach server and network adapter connections in HPE environments, and lets existing duplex LC cabling be reused instead of moving to parallel fibre.
The bidirectional design carries two lanes on each fibre strand at 855 nm and 908 nm, using 2x PAM4 50G signalling. Reach is up to 70 m on OM3, 100 m on OM4 and 150 m on OM5. The module draws a maximum of 3.5 W from a 3.3 V supply, supports Digital Optical Monitoring and has a duplex LC (UPC) connector.
This is the first-generation 100G BiDi optic, so it is not interoperable with 100G SR1.2 transceivers such as P90358-B21 and S4B44A, because their FEC modes differ. It is not supported over OM1 or OM2 fibre. It is an HPE Server SKU, so check the HPE Compute transceiver and cable hardware matrix for compatible network adapters.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 100GbE over duplex LC multimode fibre, so existing duplex LC cabling can be reused
- Bidirectional design carries 2 lanes on each fibre strand
- Supports OM3, OM4 and OM5 multimode fibre
- Digital Optical Monitoring (DOM) support
- Low power draw of 3.5 W maximum
- Listed in the HPE 25G and 100G Transceivers QuickSpecs
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 1 x LC 100GbE (IEEE 802.3 100GBASE-BiDi)
- Form factor: QSFP28
- Connector: Duplex LC (UPC)
- Wavelength: 855 nm / 908 nm
- Fibre type: Multimode
- Reach on OM3: up to 70 m
- Reach on OM4: up to 100 m
- Reach on OM5: up to 150 m
- Signalling: 2 lanes per fibre, 2x PAM4 50G
- Digital Optical Monitoring (DOM): Yes
- Voltage supply: 3.3 V
- Maximum power consumption: 3.5 W
- Dimensions: 18.60 x 128.8 x 12.90 mm
- Weight: 44 g
- Operating temperature: 10 to 60 C
- Operating relative humidity: 5% to 95%, non-condensing
- Storage temperature: -40 to 85 C
FAQs
Q: What fibre and reach does this transceiver support?
A: It runs over multimode fibre with duplex LC connectors. Reach is up to 70 m on OM3, 100 m on OM4 and 150 m on OM5. It is not supported over OM1 or OM2 fibre.
Q: Is it compatible with 100G SR1.2 transceivers?
A: No. This is the first-generation 100G BiDi optic. Its FEC mode is incompatible with 100G SR1.2 transceivers such as P90358-B21 and S4B44A, so both ends of a link need matching BiDi optics.
Q: What patch cord polish should I use?
A: Use duplex LC patch cords with an Ultra Physical Contact (UPC) polish. Angled Physical Contact (APC) polish is not recommended.
Q: Which devices does it work with?
A: It is an HPE Server SKU for compatible HPE network adapters. Check the HPE Compute transceiver and cable hardware matrix to confirm support for your adapter.
Q: How much power does it draw?
A: It runs from a 3.3 V supply drawn from the host port, with a maximum power consumption of 3.5 W.
