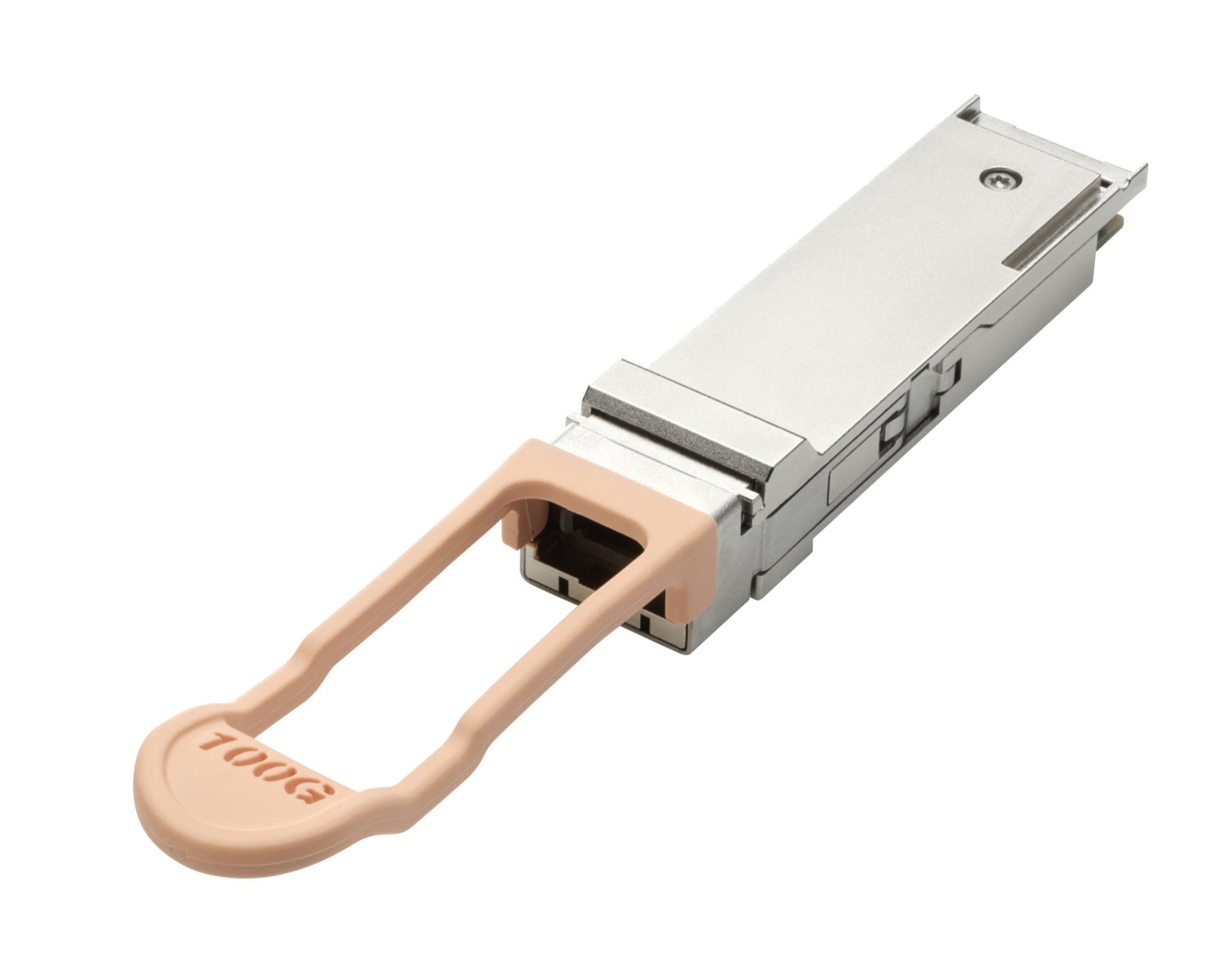

HPE 845966-B21 | 100G QSFP28 Transceiver, 100GBASE-SR4, MPO, 100m OM4
SKU:845966-B21
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 100G QSFP28 transceiver supports the 100GBASE-SR4 standard and is part of the HPE 25G and 100G Transceivers range. It provides 100GbE connectivity over multimode fibre using an MPO connector, and suits short-reach data-centre links such as server-to-switch and switch-to-switch connections.
The module carries four 25G lanes at 850 nm through a single MPO port, reaching up to 70 m on OM3 and up to 100 m on OM4 multimode fibre. It draws a maximum of 3.5 W from a 3.3 V supply, and the compact QSFP28 form factor measures 18.35 x 72.7 x 8.5 mm and weighs 36 g, which keeps port density high. It is the parallel-optic MPO 100GBASE-SR4 variant, distinct from the bidirectional LC option (845972-B21) and the 25Gb SFP28 SR module (845398-B21).
It is designed for HPE servers, adapters and switches with QSFP28 100GbE ports. Cabling must be MPO-12 multimode fibre (OM3 or OM4) with UPC polish.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Standards-based 100GbE using 4x25G lanes (100GBASE-SR4)
- QSFP28 form factor for high-density 100G ports
- Up to 100 m reach over OM4 multimode fibre
- Up to 70 m reach over OM3 multimode fibre
- Low power draw of 3.5 W maximum from the host port
- Validated interoperability with HPE networking and server platforms
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Standard: IEEE 802.3 100GBASE-SR4
- Ports: 1 x MPO 100GbE port
- Form factor: QSFP28
- Connector type: MPO
- Wavelength: 850 nm
- Fibre type: Multimode
- Cable type: OM3, OM4
- Reach: up to 70 m on OM3, up to 100 m on OM4
- Supply voltage: 3.3 V
- Maximum power consumption: 3.5 W
- Dimensions: 18.35 x 72.7 x 8.5 mm
- Weight: 36 g
- Operating temperature: 0 to 70 C
- Operating relative humidity: 0% to 85%, noncondensing
- Storage temperature: -40 to 85 C
- Fibre patch cords: UPC polish
FAQs
Q: What fibre does this transceiver need?
A: It needs MPO-12 multimode fibre, OM3 or OM4, with UPC polish. APC polished patch cords are not recommended.
Q: How far can it reach?
A: Up to 70 m over OM3 and up to 100 m over OM4 multimode fibre.
Q: What host ports is it designed for?
A: It is designed for HPE servers, adapters and switches with QSFP28 100GbE ports.
Q: How does it differ from the 845972-B21 and 845398-B21?
A: This module is the parallel-optic MPO 100GBASE-SR4 type. The 845972-B21 is a bidirectional LC module, and the 845398-B21 is a 25Gb SFP28 SR module.
Q: How much power does it draw?
A: It runs from a 3.3 V supply and draws a maximum of 3.5 W from the host port.
