HPE 845416-B21 | 25G/100G QSFP28 to 4x SFP28 DAC Breakout Cable, 3m
SKU:845416-B21
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

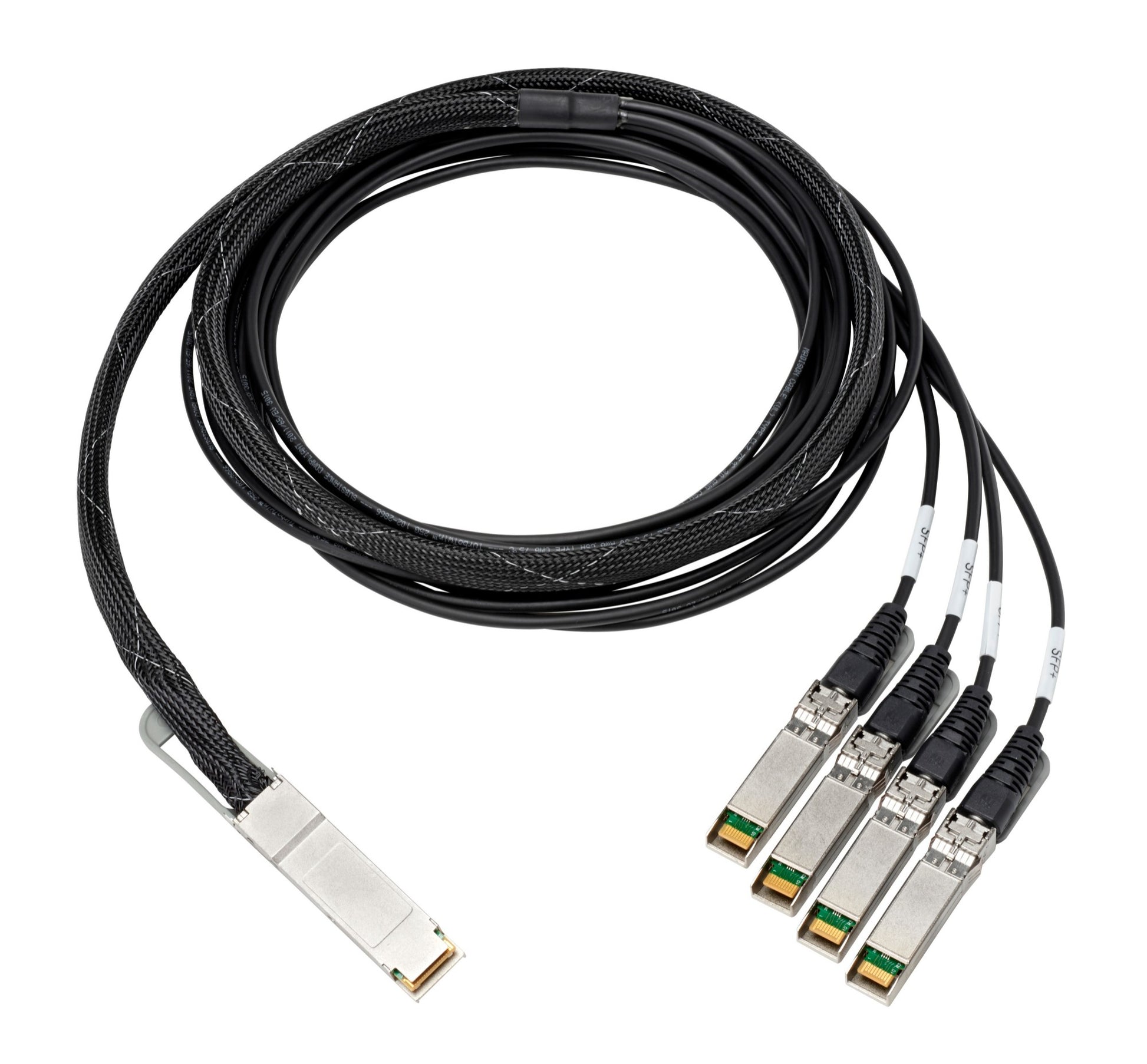

This is a 3 m passive direct attach copper breakout cable from the HPE 25Gb and 100Gb Cables range. It splits a single 100Gb QSFP28 port into four 25Gb SFP28 connections, so one 100GbE switch port can feed several 25GbE devices.
It is built for short-reach data-centre links between a 100GbE QSFP28 switch port and up to four 25GbE SFP28 server, storage or switch ports, either within a rack or to adjacent racks. As a passive cable it needs no external power and draws a maximum of 0.1 W. The 3 m length is 9.84 ft, with a cable impedance of 110 ohm and a time delay of 4.5 ns per metre.
The cable is intended for HPE compute, storage and switching platforms that have QSFP28 ports on one end and SFP28 ports on the other. Operating system support follows the server OS support matrix.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Splits a single 100Gb QSFP28 port into four 25Gb SFP28 links
- Passive direct attach copper construction with no external power required
- Low power draw of 0.1 W maximum
- Suited to short-reach links within a rack or to adjacent racks
- Part of the HPE 25Gb and 100Gb Cables portfolio for HPE compute, storage and switching platforms
- Standards-based high-speed connectivity for data-centre and hybrid-cloud architectures
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Connector type: QSFP28 (100Gb) to 4 x SFP28 (25Gb) breakout
- Cable type: Passive direct attach copper
- Length: 3 m (9.84 ft)
- Maximum power: 0.1 W
- Cable characteristic impedance: 110 ohm
- Time delay: 4.5 ns/m
- Cable diameter: 8.8 +/- 0.3 mm; 4.5 +/- 0.2 mm
- Minimum cable bend radius: 45 mm
- Weight: 1.26 lb (fully loaded with a QSFP28 transceiver at one end and four SFP28 transceivers at the other)
- Operating temperature: 0 to 70 C
- Operating relative humidity: 5% to 85%, noncondensing
- Storage temperature: -20 to 85 C
- Storage relative humidity: 0% to 85%, noncondensing
- Altitude: Up to 3 km (10,000 ft)
FAQs
Q: What does this breakout cable connect?
A: One end has a single 100Gb QSFP28 connector for a switch port. The other end splits into four 25Gb SFP28 connectors for server, storage or switch ports.
Q: Does it need external power?
A: No. It is a passive cable with no external power, and it draws a maximum of 0.1 W.
Q: Which platforms is it intended for?
A: It is intended for HPE compute, storage and switching platforms with QSFP28 ports on one end and SFP28 ports on the other. Operating system support follows the server OS support matrix.
Q: How far can it reach?
A: The cable is 3 m long (9.84 ft), so it suits short links within a rack or between adjacent racks.
Q: What is the operating temperature range?
A: It operates from 0 to 70 C at 5% to 85% relative humidity, noncondensing.
