HPE 845410-B21 | 100G QSFP28 to QSFP28 Active Optical Cable, 7m
SKU:845410-B21
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

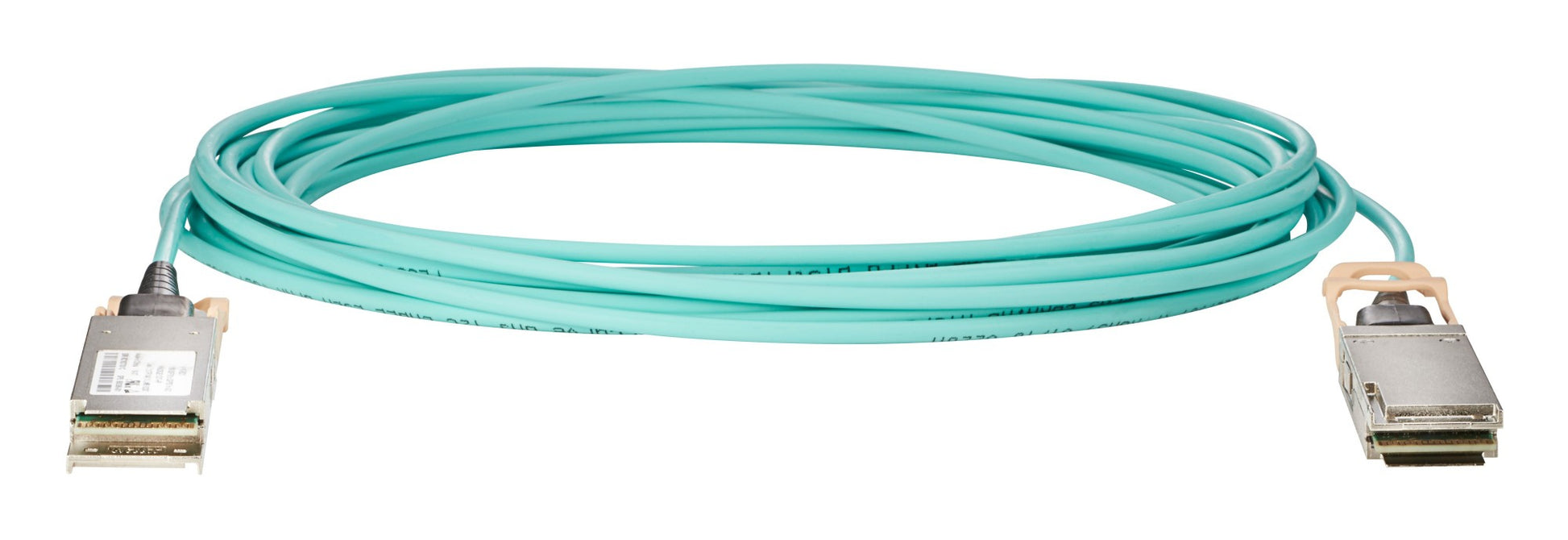

This HPE 100G QSFP28 to QSFP28 active optical cable is a fixed-length 7m link for data-centre connections such as server-to-switch, where 100Gb bandwidth is needed over short distances. It suits Telco, e-commerce and high performance computing (HPC) environments dealing with rapid bandwidth growth.
A QSFP28 transceiver is permanently attached at each end of the cable, and it is powered from the host port with no separate power supply. Power draw is a maximum of 3.5W per cable end. The cable is 3mm in diameter with a 25mm minimum bend radius and weighs 0.15kg fully loaded with a transceiver at each end. HPE positions active optical cables as lighter and lower power than traditional copper cabling.
It connects to QSFP28 100Gb ports and is listed in the HPE QuickSpecs for -B21 SKUs across a wide range of HPE compute servers, including ProLiant DL, BL, ML, Synergy, Apollo, Edgeline and SimpliVity systems, as well as storage server lines.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 100Gb bandwidth for Telco, e-commerce and HPC data growth
- QSFP28 transceiver permanently attached at each end
- Much lighter than traditional copper cabling
- Consumes less power than traditional copper cabling
- Powered from the host port with no separate power supply
- Fixed 7m length for server-to-switch runs
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Connector type: QSFP28 to QSFP28
- Data rate: 100Gb
- Cable type: Active Optical Cable (transceivers fixed at each end)
- Length: 7 m (22.97 ft)
- Power consumption: 3.5W maximum per cable end
- Weight: 0.15 kg (0.33 lb), fully loaded with a QSFP28 transceiver at each end
- Cable diameter: 3 mm
- Minimum cable bend radius: 25 mm
- Operating temperature: 0 to 70 C (32 to 158 F)
- Operating relative humidity: 0% to 85%, noncondensing
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Storage relative humidity: 0% to 85%, noncondensing
- Altitude: up to 3 km (10,000 ft)
- Bit error rate (BER): 10-15 maximum
- Crosstalk between pairs: 26 dB maximum
- Time delay: 1.57 nsec/ft
FAQs
Q: Does this cable need a separate power supply?
A: No. It is powered from the host QSFP28 port and draws a maximum of 3.5W per cable end.
Q: Can I swap the transceivers on this cable?
A: No. This is an active optical cable with a QSFP28 transceiver permanently attached at each end, so it is supplied as a single fixed-length 7m assembly.
Q: What ports does it connect to?
A: It connects to QSFP28 100Gb ports at both ends, for example between a server adapter and a 100Gb switch port.
Q: Which HPE servers is it listed for?
A: It appears in the HPE QuickSpecs for -B21 SKUs across ProLiant DL325, DL360, DL380, DL385, DL560 and DL580, BL460c, ML350, Synergy 480 and 660, Apollo 2000 and 6000, Edgeline and SimpliVity systems. HPE notes this may not be a complete listing.
Q: What is the maximum length of this cable?
A: This SKU is a fixed 7m (22.97 ft) cable. Other lengths are separate part numbers.
