HPE 845406-B21 | 100G QSFP28 to QSFP28 Passive DAC Cable, 3m
SKU:845406-B21
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

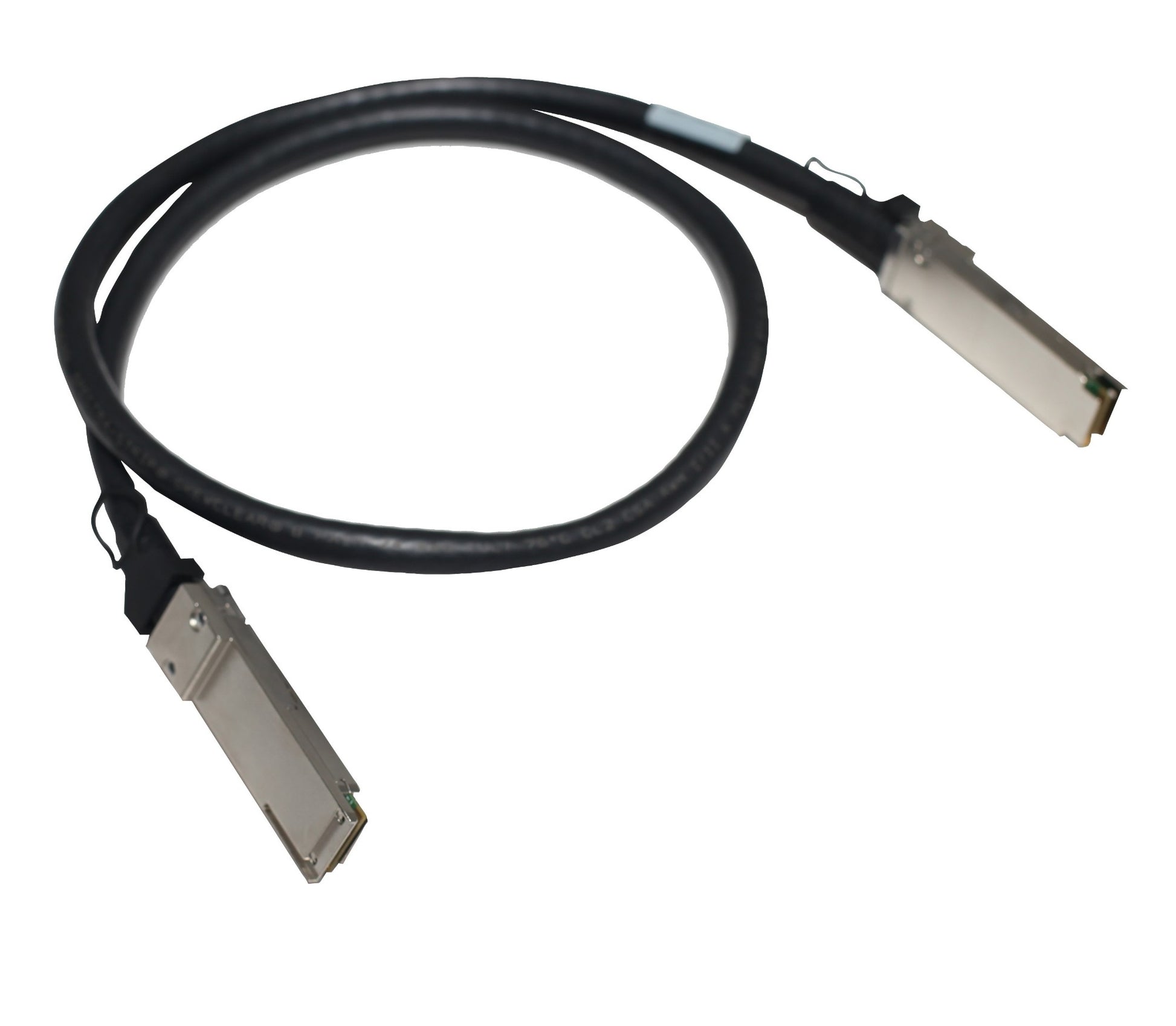

The HPE 100Gb QSFP28 to QSFP28 Direct Attach Copper Cable is a 3 m passive twinax cable with a QSFP28 connector at each end. It is built for short-reach 100GbE links inside a rack or between adjacent racks in data centres and cloud environments, such as server-to-switch and top-of-rack switch-to-switch connections. It belongs to the HPE 25Gb and 100Gb Cables range.
The cable runs at 100Gb per second, four times the speed of 25Gb connections, and draws 0.1 W maximum, so it adds little power or cooling load compared with optical modules. It is 3 m (9.84 ft) long, with a cable diameter of 8.8 mm and a minimum bend radius of 45 mm. Operating temperature is 0 to 70 C. Consolidating bandwidth onto 100Gb links reduces cabling complexity and frees up rack space.
It connects 100Gb QSFP28 ports on HPE servers, adapters and switches. The same family also includes 1 m (845404-B21) and 5 m (845408-B21) lengths, and a 100Gb to 4x25Gb breakout cable (845416-B21). Check the relevant HPE server and switch QuickSpecs for supported 100Gb ports.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 100Gb QSFP28 technology delivers four times the speed of 25Gb connections
- Higher switch port density at lower cost and power than 40Gb solutions
- Bandwidth consolidation reduces cabling complexity, power and cooling, and frees up space
- Passive copper design with no external power supply
- Suited to the data growth of data centres and cloud-based services
- Part of the HPE QSFP28 direct attach cable family alongside 1 m and 5 m lengths
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Type: Direct attach copper cable (DAC), passive twinax
- Connectors: QSFP28 to QSFP28
- Data rate: 100Gb
- Length: 3 m (9.84 ft)
- Power: 0.1 W maximum
- Cable characteristic impedance: 110 ohm
- Time delay: 4.5 ns/m
- Cable diameter: 8.8 +/- 0.3 mm
- Minimum cable bend radius: 45 mm
- Weight: 0.66 lb (fully loaded, with a QSFP28 transceiver at each end)
- Operating temperature: 0 to 70 C (32 to 158 F)
- Operating relative humidity: 5% to 85%, noncondensing
- Storage temperature: -20 to 85 C (-4 to 185 F)
- Storage relative humidity: 0% to 85%, noncondensing
- Altitude: up to 3 km (10,000 ft)
FAQs
Q: Does this cable need external power?
A: No. It is a passive copper cable with no external power supply. The electrical power draw is 0.1 W maximum.
Q: What ports does it connect to?
A: It links 100Gb QSFP28 ports on HPE servers, adapters and switches. Check the HPE server and switch QuickSpecs for the supported 100Gb ports on your platform.
Q: How does it differ from the other 100Gb QSFP28 cables in this family?
A: This SKU is the 3 m QSFP28 to QSFP28 cable. 845404-B21 is the 1 m length and 845408-B21 is the 5 m length. 845416-B21 is a 3 m breakout cable that splits 100Gb QSFP28 into 4x25Gb SFP28.
Q: What is the minimum bend radius?
A: The minimum cable bend radius is 45 mm. The cable diameter is 8.8 +/- 0.3 mm.
Q: Where is a 3 m passive DAC typically used?
A: It suits short-reach 100GbE links inside a rack or between adjacent racks, such as server-to-switch and top-of-rack switch-to-switch connections.
