HPE 844477-B21 | 25G SFP28 to SFP28 DAC Cable, Passive Twinax, 3m
SKU:844477-B21
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

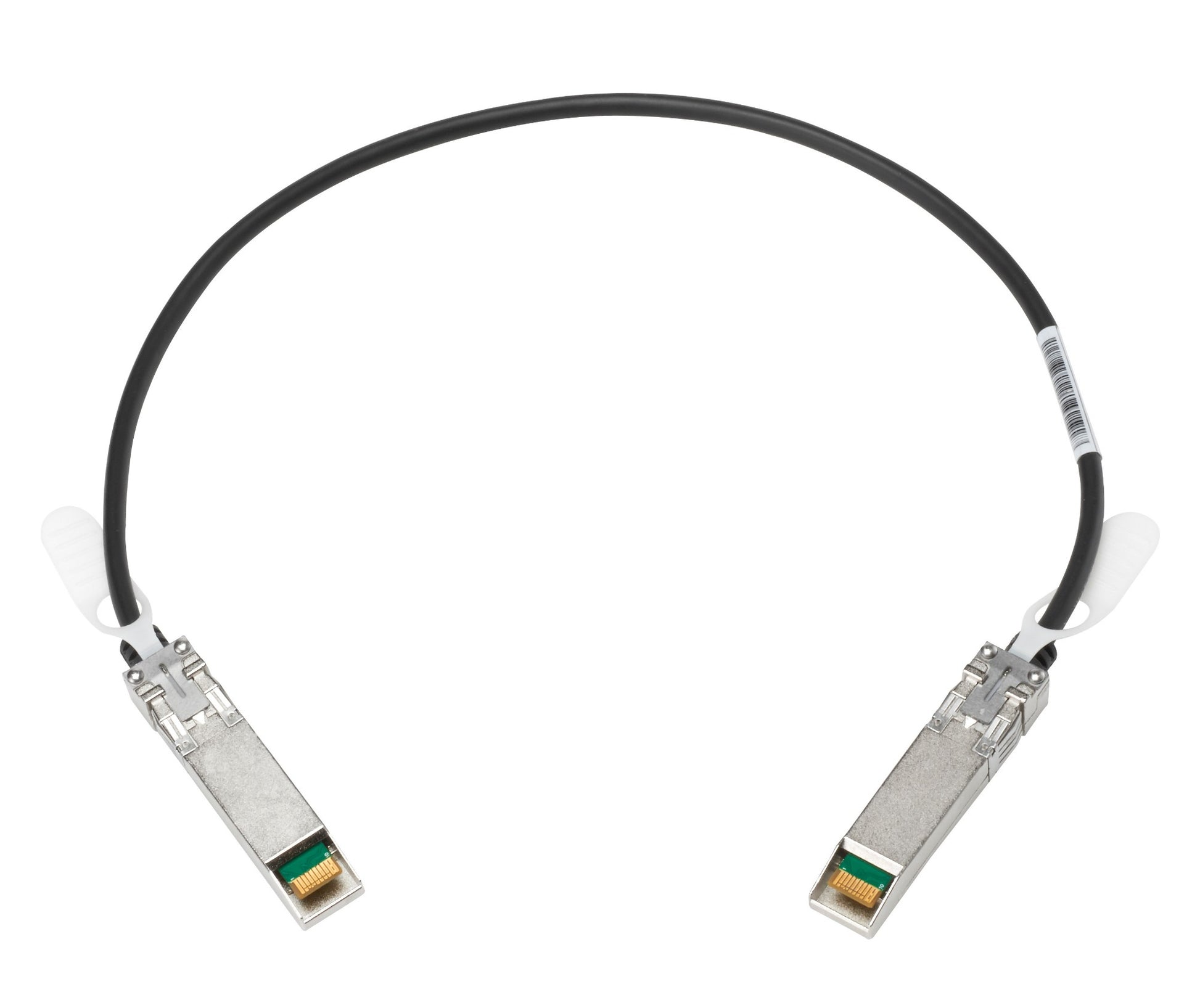

This is a 3 m passive direct attach copper cable with SFP28 connectors at both ends, built for short-reach 25GbE links. It suits direct connections between SFP28 ports, such as a server network adapter to a top-of-rack switch, where a low-cost copper link is preferred over separate optics and fibre.
The cable is a twinax design rated for 25GBASE-CR at 25 Gb/s. It uses 30 AWG conductors with a black PVC (OFNR) jacket and a minimum bend radius of 23 mm. DOM support is provided, and the operating temperature range is 0 to 70 C. Being passive, it needs no external power.
The 3 m length is the point that separates this part from the shorter and longer variants in the same family. It is intended for use with HPE devices that have SFP28 ports.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Passive copper design with no external power needed
- SFP28 connectors at both ends for direct port-to-port links
- Rated for 25GBASE-CR at 25 Gb/s
- Digital optical monitoring (DOM) support
- 30 AWG twinax with a flame-rated PVC (OFNR) jacket
- Suited to short-reach server to top-of-rack switch connections
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Connector: SFP28 to SFP28
- Data rate: 25GBASE-CR, 25 Gb/s
- Cable type: Passive copper twinax
- Cable length: 3 m
- Wire gauge: 30 AWG
- Minimum bend radius: 23 mm
- Jacket material: PVC (OFNR)
- Colour: Black
- Operating temperature: 0 to 70 C
- DOM support: Yes
- Power: Passive, no external power required
FAQs
Q: Does this cable need external power?
A: No. It is a passive copper twinax cable and draws no external power.
Q: What speed does this cable support?
A: It is rated for 25GBASE-CR at 25 Gb/s between two SFP28 ports.
Q: What is the length of this cable?
A: This part is 3 m long. Shorter and longer lengths are separate part numbers.
Q: Where is this cable typically used?
A: It is used for short-reach 25GbE links, such as connecting a server network adapter to a top-of-rack switch.
