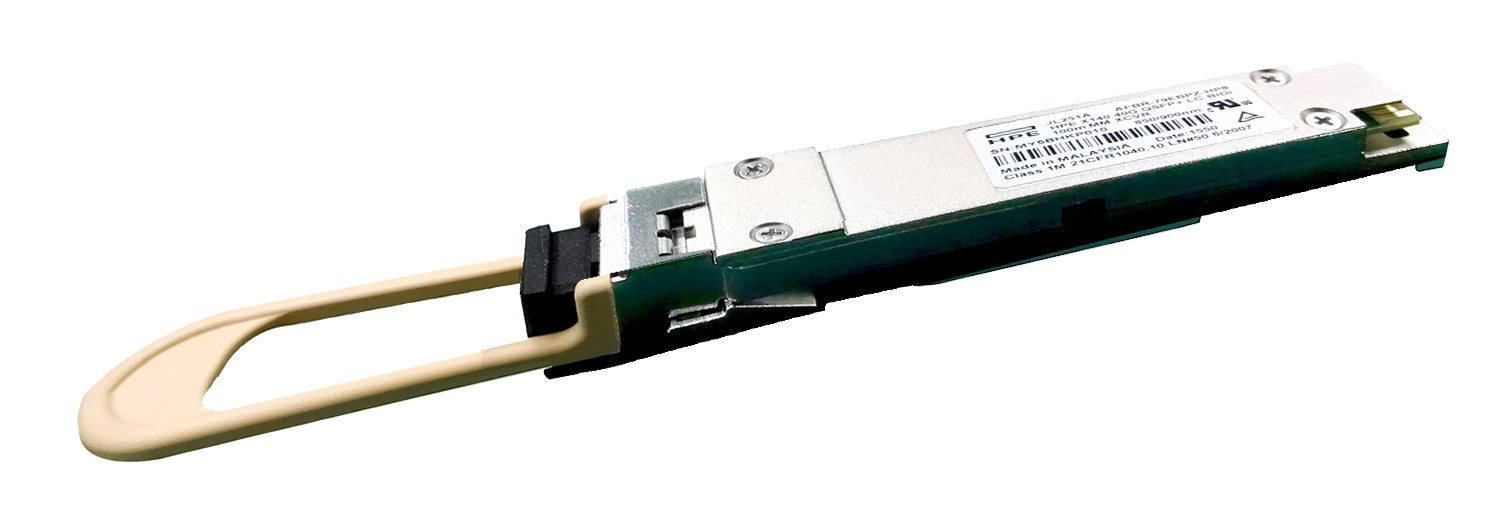

HPE 841716-B21 | 40G QSFP+ BiDi Transceiver, LC Duplex, 100m OM3/150m OM4
SKU:841716-B21
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This is a 40GBASE-SR-BiDi QSFP+ transceiver from the HPE 40GbE QSFP+ Transceivers range. It carries 40GbE over a single LC duplex multimode fibre pair, so existing duplex fibre cabling can be reused for 40G links without moving to MPO/MTP parallel cabling. It suits server-to-switch and switch-to-switch connections in data centres and enterprise networks.
The module is hot-pluggable and uses an LC duplex connector. It supports links up to 100 m on OM3 and up to 150 m on OM4 multimode fibre, using 850nm/900nm wavelengths. It integrates four electrical data lanes in each direction into transmission over one fibre pair. Maximum power consumption is 3.5 W, drawn from the host port.
It is intended for HPE servers and HPE network equipment with 40GbE QSFP+ ports, and is QSFP+ MSA and SFF-8436 compliant. It complements HPE 40GbE QSFP+ MPO transceivers for high-density, low-power 40GbE builds.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- LC duplex connector allows reuse of existing duplex fibre cable infrastructure in the data centre
- Links up to 100 m on OM3 and up to 150 m on OM4 optical fibre
- Low power consumption, 3.5 W maximum
- Compliant with 40GbE XLPPI and QSFP+ SFF-8436 electrical specifications
- Hot-pluggable for ease of installation
- Integrates four electrical data lanes in each direction into transmission over a single LC duplex fibre pair
- Complements HPE 40GbE QSFP+ MPO transceivers for high-density, low-power 40GbE solutions
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- HPE part number: 841716-B21
- Standard: 40GBASE-SR-BiDi
- Form factor: QSFP+, hot-pluggable
- Connector type: LC duplex
- Media type: Multi-mode optical fibre (MMF)
- Wavelength: 850nm/900nm
- Maximum distance: 100 m (OM3) / 150 m (OM4)
- Maximum power consumption: 3.5 W
- Electrical interface: 40GbE XLPPI and QSFP+ SFF-8436
- Weight: 35 g (0.08 lb)
- Dimensions (L x W x H): 121.8 x 18.35 x 12.9 mm
FAQs
Q: What fibre does this transceiver use?
A: It uses multimode fibre with an LC duplex connector. Links reach up to 100 m on OM3 and up to 150 m on OM4.
Q: Do I need MPO/MTP parallel cabling?
A: No. It carries 40GbE over a single LC duplex fibre pair, so existing duplex fibre cabling can be reused.
Q: What devices does it work with?
A: It is intended for HPE servers and HPE network equipment with 40GbE QSFP+ ports and is QSFP+ MSA and SFF-8436 compliant. Check the HPE QuickSpecs for the exact supported adapter and switch list.
Q: How much power does it draw?
A: Maximum power consumption is 3.5 W, drawn from the host port.
Q: Can it connect to a standard 40GBASE-SR4 MPO transceiver?
A: No. This is a BiDi module for LC duplex fibre, so both ends of the link should use matching 40GBASE-SR-BiDi modules.
