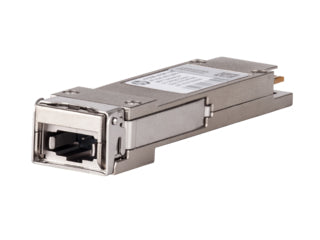

HPE 817040-B21 | Synergy 40G QSFP+ SR4 Transceiver, 850nm, MPO, 100m OM3
SKU:817040-B21
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This QSFP+ optical transceiver is built for HPE Synergy 40Gb F8 switch modules. It suits 40GbE uplinks and short-reach multimode links inside HPE Synergy infrastructure, and it can also be used in 4x10GbE or 4x8Gb Fibre Channel breakout designs in the data centre.
It is a 40GBASE-SR4 module operating at 850 nm with an MPO (MPO-12) multimode connector. It delivers 40 Gbps and reaches up to 100 m on OM3 fibre and 150 m on OM4 fibre. It complies with IEEE 802.3ba and uses four independent transmit and receive channels. For a straight 40GbE link, connect it with MPO-to-MPO cabling. For breakout connections to 10GbE or 8Gb Fibre Channel, use MPO-to-4xLC cabling.
The module is designed for HPE Synergy 40Gb F8 switch modules. The alternate spare part number is 817042-001.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Supports 40GbE, 4x10GbE or 4x8Gb Fibre Channel operation from a single module type
- Deployable as a 40GbE uplink with MPO-to-MPO cable
- Supports breakout connections with MPO-to-4xLC cabling
- Four independent transmit and receive channels
- Designed for HPE Synergy 40Gb F8 switch modules
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Device type: QSFP+ transceiver module
- Form factor: Plug-in module, QSFP+
- Cabling type: 40GBASE-SR4
- Data rate: 40 Gbps
- Supported protocols: 10 Gigabit Ethernet, 40 Gigabit Ethernet, 8Gb Fibre Channel
- Optical wavelength: 850 nm
- Connector: MPO (MPO-12), multimode
- Maximum distance: 100 m on OM3, 150 m on OM4
- Fibre type: Multimode (OM3/OM4)
- Standard: IEEE 802.3ba (40GBASE-SR4)
- Operating mode: Full duplex
- Weight: approx. 35 g
- Alternate spare part number: 817042-001
FAQs
Q: Which HPE modules does this transceiver work with?
A: It is designed for HPE Synergy 40Gb F8 switch modules.
Q: Can it be used for breakout connections?
A: Yes. With MPO-to-4xLC cabling it can run as a 4x10GbE or 4x8Gb Fibre Channel breakout.
Q: What fibre and distance does it support?
A: It uses multimode fibre with an MPO connector, reaching up to 100 m on OM3 and 150 m on OM4.
Q: What cable do I need for a 40GbE link?
A: Use MPO-to-MPO multimode fibre cabling for a straight 40GBASE-SR4 connection.
