HPE

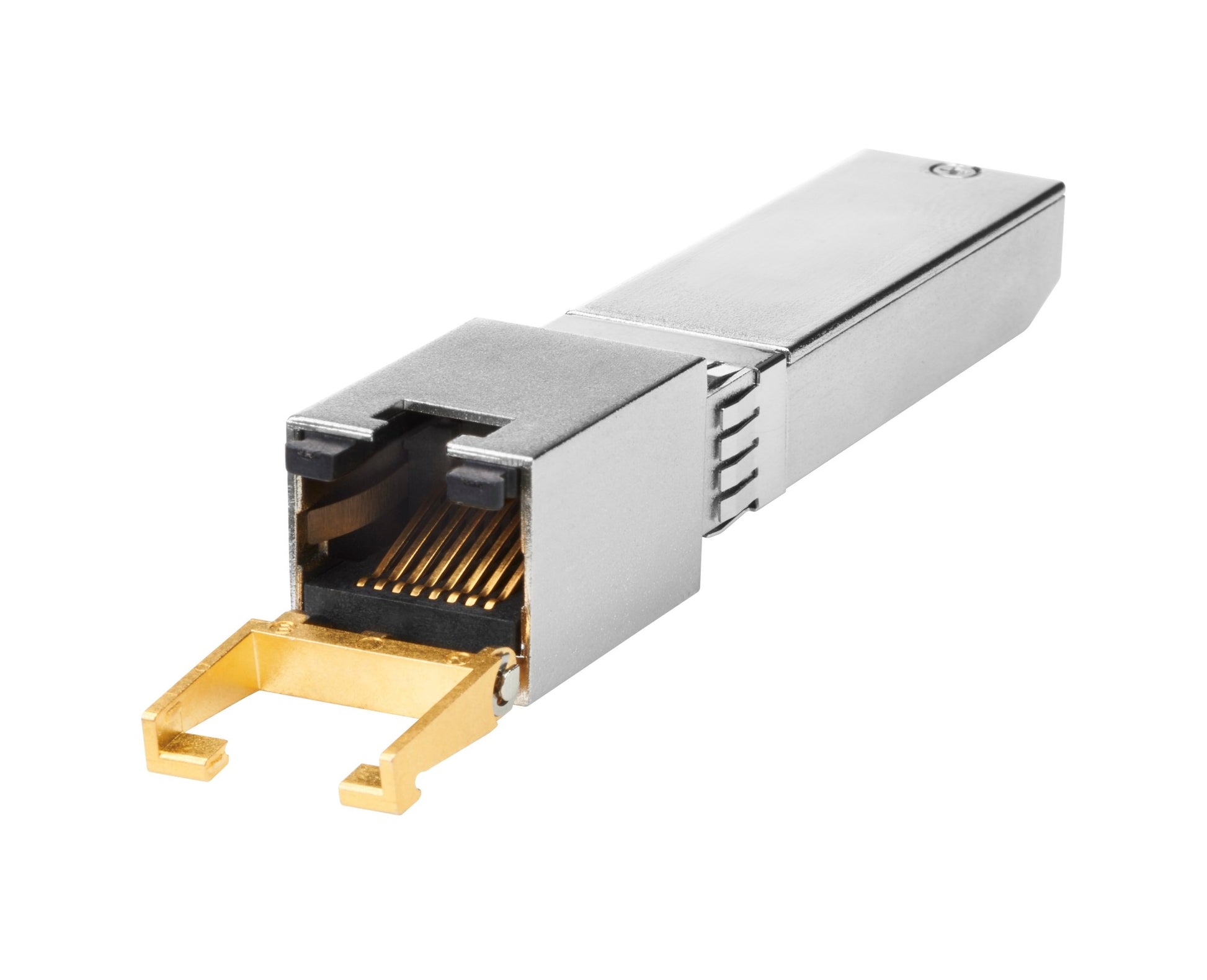

HPE 813874-B21 | 10GBASE-T SFP+ Transceiver, RJ45, Cat 6a/7, 30m

SKU:813874-B21

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE 10GBASE-T SFP+ transceiver carries 10GbE over twisted-pair copper through a standard RJ45 connector. It suits server, storage and switch connections where copper cabling is already in place or preferred, and gives a lower-cost alternative to fibre for short runs. It sits in the HPE Extended Catalog Networking Transceivers range, which targets specialised workloads and markets.

It uses the SFP+ form factor and is SFF-8431 and SFF-8432 MSA compliant. Links run at 10GbE, full duplex only, over Cat 6a or Cat 7 cabling for distances up to 30 m. The module is powered from the host SFP+ port and draws 2.3 W typical and 2.5 W maximum. It operates from 0 to 70 C and measures 7.11 x 1.35 x 1.40 cm.

Check the switch release notes for the minimum software version that supports this transceiver. Some switches also limit how many of these modules can be installed at once. Operating system support for server use follows the server OS support matrix.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- SFF-8431 and SFF-8432 MSA compliant SFP+ module
- 10GbE copper links up to 30 m over Cat 6a/7 cabling
- RJ45 connector for use with standard twisted-pair cabling
- Low power draw of 2.3 W typical from the host SFP+ port
- Cost-effective copper alternative to fibre for short 10GbE runs
- Part of the HPE extended catalog for specific markets and workloads

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 1 x 10GbE SFP+ port
- Duplex: Full duplex only
- Standard: 10GBASE-T
- Connector type: RJ45
- Form factor: SFP+, SFF-8431 and SFF-8432 MSA compliant
- Cable type: Cat 6a/7
- Maximum distance: 30 m
- Media type: Copper
- Power consumption: 2.3 W typical, 2.5 W maximum
- Dimensions (D x W x H): 7.11 x 1.35 x 1.40 cm
- Weight: 0.04 lb
- Operating temperature: 0 to 70 C (32 to 158 F)
- Operating relative humidity: 5% to 95%, noncondensing
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Storage relative humidity: 5% to 95%, noncondensing
- Altitude: up to 10,000 ft (30 km)

FAQs

Q: What cable does this transceiver need?
A: It uses Cat 6a or Cat 7 twisted-pair cabling with RJ45 connectors. Links of up to 30 m are supported.

Q: What power does it draw?
A: It is powered from the host SFP+ port. It draws 2.3 W typical and 2.5 W maximum, so check that your switch or adapter can supply the power budget for the ports you plan to populate.

Q: Will it work with my switch?
A: Check the switch release notes for the minimum software version that supports this transceiver. Some switches also limit how many of these modules can be installed at once.

Q: Does it support speeds below 10GbE?
A: No. This module supports 10GbE only, in full duplex. The host port must support 10G SFP+ operation.

Q: Does it need a licence or subscription?
A: No. It is a passive hardware module powered by the host SFP+ port and needs no licence.
