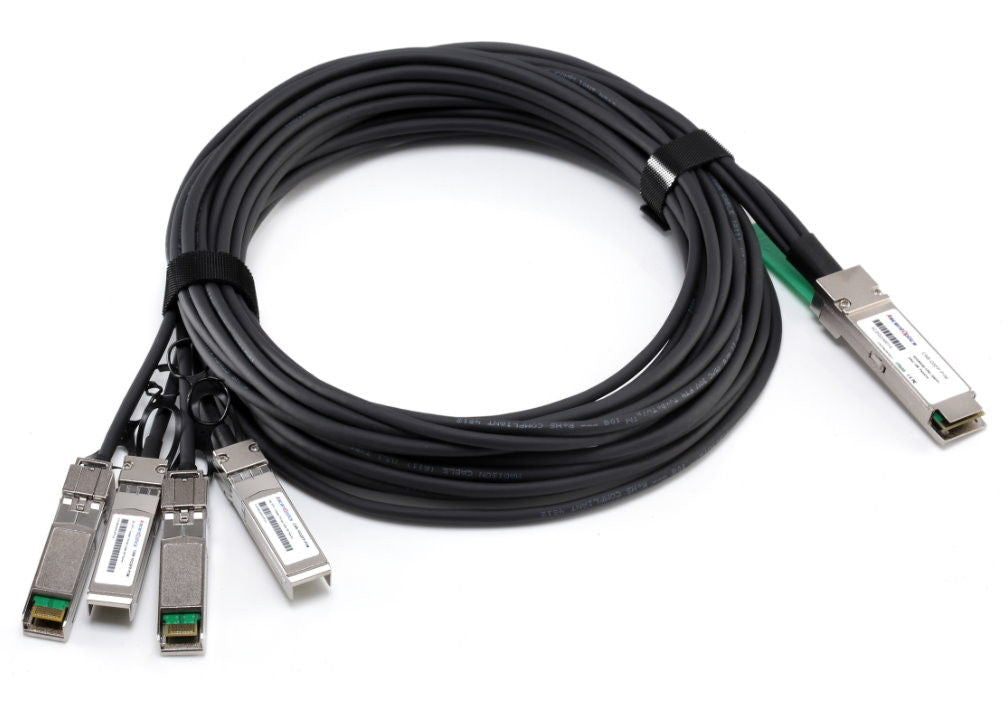

HPE 721076-B21 | 40G QSFP+ to 4x 10G SFP+ AOC Breakout Cable, 15m
SKU:721076-B21
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This active optical breakout cable connects one 40GbE QSFP+ port to four 10GbE SFP+ ports over a 15 m run. It is designed for the HPE BladeSystem c-Class range, including Virtual Connect FlexFabric modules, and suits breaking out 40GbE uplinks into four separate 10GbE connections to top-of-rack switches or servers.
The cable is a factory-terminated active optical assembly with transceivers fitted at both ends, delivering 40 Gbps aggregate as four independent 10 Gbps links. Power draw is a maximum of 1.5 W per cable end, drawn from the host port. The cable is a thin 3 mm diameter with a 25 mm minimum bend radius, which helps with dense blade enclosure cabling. Bit error rate is 10^-15 maximum.
It is compatible with the HPE Virtual Connect FlexFabric-20/40 F8 Module and other HPE QSFP+ 40GbE ports. Shorter 7 m (721070-B21) and 10 m (721073-B21) breakout lengths are available in the same range.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Splits one 40G QSFP+ port into four independent 10G SFP+ links
- Factory-terminated active optical assembly with transceivers fitted at both ends
- Low power draw of 1.5 W max per cable end
- Thin 3 mm cable with 25 mm minimum bend radius for dense blade enclosure cabling
- Part of the HPE 40G QSFP+ AOC range with 7 m, 10 m and 15 m breakout lengths
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Connector 1: QSFP+
- Connector 2: 4 x SFP+
- Cable type: Active optical (fibre optic)
- Cable length: 15 m (49.21 ft)
- Data rate: 40 Gbps (4 x 10 Gbps)
- Cable diameter: 3 mm
- Minimum cable bend radius: 25 mm
- Power consumption: 1.5 W maximum per cable end
- Cable characteristic impedance: Non-conductive
- Crosstalk between pairs: 26 dB max
- Bit error rate (BER): 10^-15 max
- Time delay: 1.57 nsec/ft
- Operating temperature: 0 to 70 C (32 to 158 F)
- Operating relative humidity: 5% to 85%, non-condensing
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Storage relative humidity: 5% to 85%, non-condensing
- Altitude: up to 3 km (10,000 ft)
FAQs
Q: What does this cable connect?
A: It connects one 40GbE QSFP+ port to four 10GbE SFP+ ports, giving four independent 10G links from a single 40G port.
Q: Does it need external power?
A: No. It is powered from the host port and draws a maximum of 1.5 W per cable end.
Q: Which HPE equipment is it designed for?
A: It is designed for HPE BladeSystem c-Class, including the HPE Virtual Connect FlexFabric-20/40 F8 Module, and other HPE QSFP+ 40GbE ports.
Q: How does this differ from the other breakout lengths?
A: This 721076-B21 cable is the 15 m length. The same range includes a 7 m version (721070-B21) and a 10 m version (721073-B21).
Q: How tightly can the cable be bent?
A: The cable is 3 mm in diameter with a minimum bend radius of 25 mm, which suits dense enclosure cabling.
