HPE 720211-B21 | BladeSystem c-Class 40G QSFP+ AOC Cable, 15m

SKU:720211-B21

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

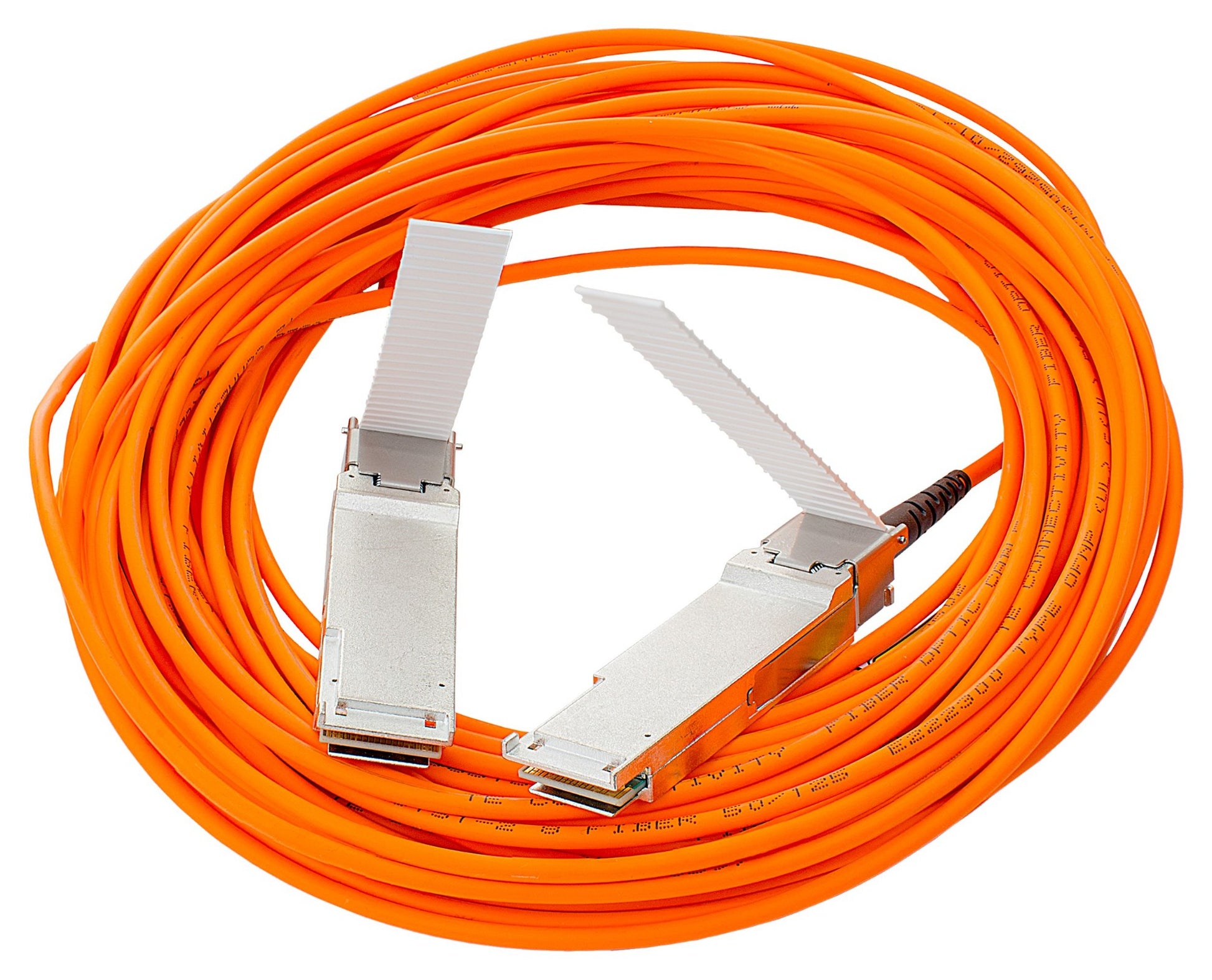

This 15m active optical cable from the BladeSystem c-Class range carries 40GbE links between HPE BladeSystem or Synergy interconnect modules and QSFP+ switch or network ports. It suits data centre teams that need 40G uplinks and interconnects from blade enclosures to top-of-rack or core switches over longer distances than direct attach copper allows.

The cable has a QSFP+ connector at each end with integrated optical transceivers, so no separate optics are needed. It runs at 40Gbps over a 15m (49.21 ft) length, with a slim 3mm cable diameter and a 25mm minimum bend radius that helps with tidy routing between racks or across a row. Power is drawn from the host QSFP+ port, so no separate power supply is required.

It is listed by HPE as a QSFP+ uplink option for the HPE Synergy 40Gb F8 Switch Module and is sold for HP BladeSystem c-Class interconnects. It can also be used with other 40G QSFP+ ports.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Active optical cable with integrated QSFP+ transceivers at both ends
- Supports 40GbE links in BladeSystem and Synergy environments
- Long 15m reach for rack-to-rack or row connections
- Slim 3mm cable with a 25mm minimum bend radius for easier routing
- Powered from the host QSFP+ port, no separate power supply needed
- Usable with other 40G QSFP+ ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product type: Active Optical Cable (AOC)
- Data rate: 40 Gbps
- Connectors: 1 x QSFP+ on each end
- Cable length: 15 m (49.21 ft)
- Cable type: Fibre optic (active)
- Cable diameter: 3 mm
- Minimum bend radius: 25 mm
- Crosstalk: 26 dB max
- Time delay: 1.57 nsec/ft
- Power: Drawn from host QSFP+ port
- Compatibility: HPE BladeSystem c-Class, HPE Synergy 40Gb F8 Switch Module
- Manufacturer part number: 720211-B21

FAQs

Q: Does this cable need a separate power supply?
A: No. The integrated transceivers are powered from the host QSFP+ port, so no external power is required.

Q: What equipment is this cable compatible with?
A: It is sold for HPE BladeSystem c-Class interconnects and is listed by HPE as a QSFP+ uplink option for the HPE Synergy 40Gb F8 Switch Module. It can also be used with other 40G QSFP+ ports.

Q: Do I need to buy separate optical transceivers for this cable?
A: No. This is an active optical cable with the QSFP+ transceivers built into both ends, so it connects directly between two QSFP+ ports.

Q: How does the 15m version differ from other lengths of this cable?
A: The cable type and 40G QSFP+ connectors are the same across lengths. This SKU provides a 15m (49.21 ft) reach, suited to rack-to-rack or row connections beyond the range of direct attach copper.

Q: What is the minimum bend radius?
A: The minimum cable bend radius is 25mm, and the cable diameter is 3mm.
