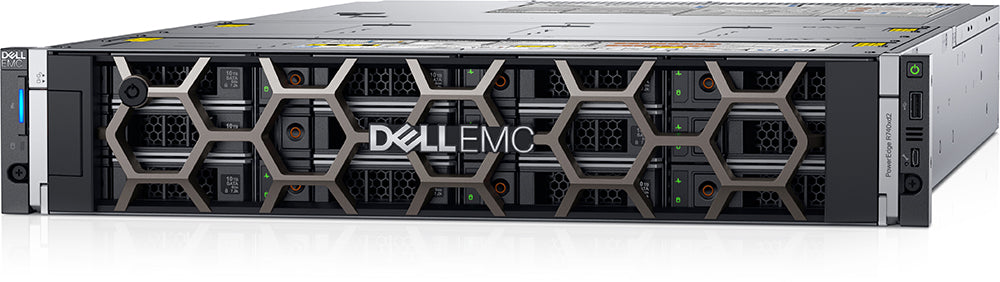

• Dell R740xd2 2U server rack with hexagonal panel and dual Xeon Scalable
1 1

Dell

Dell R740xd2 | 2U Capacity-Optimized Rack Server, 26x 3.5in Bays

R740xd2

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Dell PowerEdge R740xd2 is a 2U rack server engineered for data-intensive workloads requiring massive internal storage capacity. Supporting up to 26 x 3.5-inch drives and dual 2nd Gen Intel Xeon Scalable processors, it delivers exceptional storage density for media streaming, software-defined storage, content delivery networks, and large-scale data repositories. With up to 1TB DDR4 memory, PERC RAID controllers, iDRAC9 enterprise management, and hot-plug redundant power supplies, the R740xd2 provides enterprise-class reliability and performance for applications that demand close proximity between compute and storage resources.

Features

Dual 2nd Gen Intel Xeon Scalable processor support with up to 44 total cores
- Exceptional storage density with up to 26 x 3.5-inch hot-swappable drive bays
- Flexible drive configurations supporting SAS, SATA HDD, and SSD media
- Up to 1TB DDR4 registered ECC memory across 16 DIMM slots
- PCIe 3.0 expansion with up to 5 slots for network adapters and accelerators
- Advanced RAID support with PERC H740P/H730P controllers featuring battery-backed cache
- iDRAC9 with Lifecycle Controller for comprehensive out-of-band management
- QuickSync 2 for mobile device management access
- Redundant hot-plug power supplies with 750W or 1100W Platinum efficiency options
- Front-serviceable, hot-swappable drives for simplified maintenance
- Embedded diagnostics and automated firmware updates
- Server Lockdown mode to prevent unauthorized configuration changes
- Cryptographically signed firmware and Secure Boot
- Silicon Root of Trust and TPM 2.0 support
- OpenManage integration with VMware vCenter and Microsoft System Center
- Optional Boot Optimized Storage Solution (BOSS) for M.2 SSDs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U rack server
- Processor: Dual-socket, supports up to two 2nd Gen Intel Xeon Scalable processors, up to 22 cores each
- Memory: 16 DDR4 RDIMM slots, up to 1024GB maximum capacity, speeds up to 2933 MT/s
- Drive Bays: Up to 24 x 3.5-inch front bays plus 2 x 3.5-inch rear bays (26 total) for SAS/SATA HDD/SSD, or configurations supporting 16 x 3.5-inch plus 8 x 2.5-inch drives
- Storage Capacity: Maximum 364TB with 3.5-inch drives
- RAID Controllers: Supports PERC H330, H730P, H740P, and HBA330 controllers
- Expansion: Up to 5 PCIe Gen 3 slots
- Network: 2 x 1GbE LOM ports, optional LOM riser for 2 x 10GbE SFP+ or 2 x 25GbE SFP+ or 2 x 10GbE BaseT
- Management: iDRAC9 with Lifecycle Controller, dedicated management port
- Power Supplies: Dual hot-plug redundant PSUs, 750W or 1100W Platinum or HVDC options
- Front I/O: 1 x USB 3.0, 1 x managed micro-USB, iDRAC Direct USB
- Rear I/O: VGA, serial, 2 x USB 3.0, iDRAC dedicated LAN

FAQs

Q: What workloads is the R740xd2 optimized for?
A: The R740xd2 is designed for capacity-intensive workloads including media streaming, software-defined storage (SDS), content delivery networks, large-scale file servers, video surveillance archives, and on-premise email/messaging systems requiring massive internal storage.

Q: How does the R740xd2 differ from the standard R740?
A: The R740xd2 offers significantly higher storage density with support for up to 26 x 3.5-inch drives compared to the R740's standard configuration. The R740xd2 uses a unique chassis design that prioritizes storage capacity over PCIe expansion, making it ideal for data-heavy applications.

Q: What is the maximum memory configuration supported?
A: The R740xd2 supports up to 16 DDR4 RDIMM slots with a maximum capacity of 1024GB (1TB). It supports memory speeds up to 2933 MT/s depending on processor and DIMM configuration, with 10 DIMM slots allocated to CPU1 and 6 slots to CPU2.

Q: Can I mix different drive types in the R740xd2?
A: Yes, the R740xd2 supports mixing SAS, SATA, and SSD drives, allowing you to tier data by placing frequently-accessed data on SSDs while using high-capacity HDDs for archival storage. 2.5-inch drives can be installed in 3.5-inch bays using hybrid carriers.

Q: What RAID controllers are compatible with this server?
A: The R740xd2 supports Dell PERC H330, H730P (2GB NV cache), H740P, and HBA330 controllers. These provide flexible RAID levels and caching options to optimize performance and data protection for various storage workloads.
