Blue Cable Co

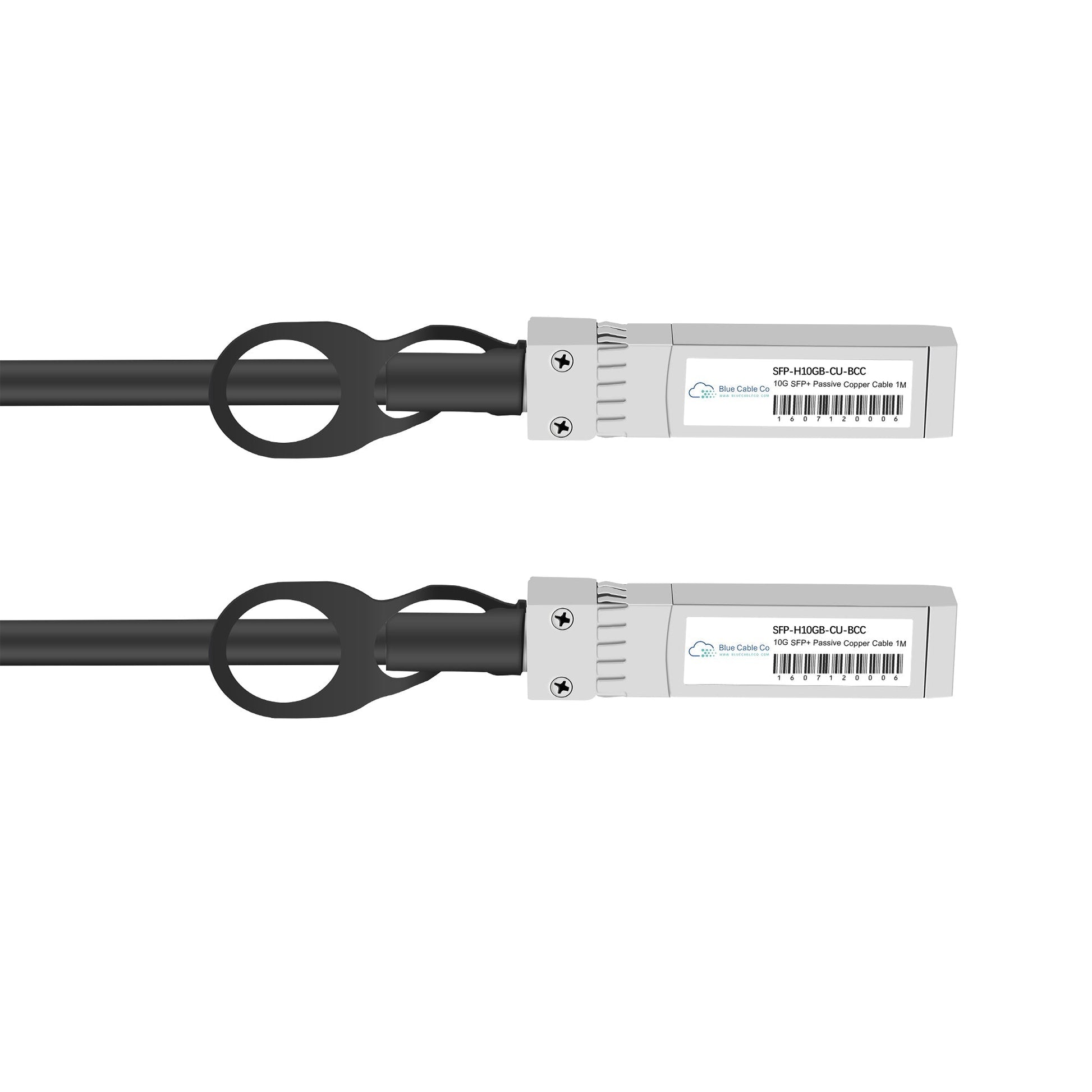

CPAC-DAC-10G-xM-D-BCC | Checkpoint Compatible SFP+ to SFP+ DAC Cable, Passive, 10GB, 10GBASE-CU | 1 to 5M

CPAC-DAC-10G-1M-D-BCC

11 in stock

$35.75 AUD
$35.75 AUD
$35.75 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Length (Meters)

Description

The CPAC-DAC-10G-xM-D-BCC is a drop-in compatible replacement for the Checkpoint CPAC-DAC-10G-1M-D. This passive twinaxial copper cable assembly provides plug-and-play compatibility with Checkpoint security appliances featuring 10GbE SFP+ ports. - Complies with 10GBASE-CU (IEEE 802.3ae), SFP+ MSA (SFF-8431, SFF-8432) standards, guaranteeing interoperability with Checkpoint platforms and third-party equipment using standard SFP+ interfaces - SFP+ to SFP+ form factor with pre-terminated connectors, 10 Gbps full-duplex electrical signalling over passive twinax copper - 30AWG cable suitable for short-range rack and adjacent-rack interconnects up to 5 meters without active signal conditioning - Available in 1M, 2M, and 5M lengths to accommodate variable inter-equipment spacing in data centre and perimeter security deployments - Operating temperature range 0 to 70 degrees C for standard networking environments

Features

• Passive copper design eliminates power consumption beyond host port requirements, reducing thermal load and operating cost compared to active optical alternatives
• 10GBASE-CU compliance ensures reliable electrical signalling at 10.3125 Gbps line rate, supporting full-duplex operation without packet loss or retransmission overhead
• Hot-swappable SFP+ connectors allow in-service cable replacement without disrupting adjacent links or requiring appliance reboot
• 30AWG twinaxial cable construction provides EMI shielding and differential pair integrity for reliable operation in high-density security appliance and switch environments
• Compatible with Checkpoint security gateway platforms equipped with 10GbE SFP+ interface cards, including models specified in the Checkpoint Appliance Accessory Guide
• Cost-effective alternative to SFP+ transceivers plus fibre patch cords for short intra-rack and inter-rack connections where reach requirements permit passive copper

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: CPAC-DAC-10G-xM-D-BCC
Reference SKU: CPAC-DAC-10G-1M-D
Compatibility: Checkpoint compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP+ to SFP+
Data Rate: 10 Gbps
Cable Type: Passive twinaxial copper (30AWG)
Standards: 10GBASE-CU (IEEE 802.3ae), SFP+ MSA (SFF-8431, SFF-8432)
Available Lengths: 1M, 2M, 5M
Operating Temperature: 0 to 70 degrees C
Operating Humidity: 10 to 90% relative humidity

FAQs

Q: Will this work in place of the Checkpoint CPAC-DAC-10G-1M-D?
A: Yes. This cable is electrically and mechanically compatible with the CPAC-DAC-10G-1M-D and complies with the same 10GBASE-CU and SFP+ MSA standards. It is plug-and-play compatible with Checkpoint security appliances and provides identical 10 Gbps passive copper connectivity.

Q: Which Checkpoint platforms support this cable?
A: This cable is compatible with Checkpoint security appliances equipped with 10GbE SFP+ interface cards, including the 5600, 5800, 5900, 6500, 6600, 6800, 15000, 16000, 23000, 28000 series, and Maestro Hyperscale Orchestrator platforms with SFP+ ports. Verify your specific appliance has 10G SFP+ ports using the Checkpoint Appliance Accessory Guide or platform datasheet.

Q: What is the maximum reach for passive DAC at 10 Gbps?
A: Passive 10GBASE-CU DAC cables are specified for up to 5 meters. Electrical signal attenuation in passive copper limits practical reach. For runs longer than 5M, consider active DAC or SFP+ optical transceivers. The 30AWG cable construction used here is suitable for all lengths offered (1M, 2M, 5M) at 10 Gbps data rate.

Q: Can I mix DAC cable lengths between appliances in the same installation?
A: Yes. Each cable is an independent point-to-point link, and mixing 1M, 2M, and 5M lengths has no impact on interoperability or electrical performance. Choose cable length based on physical appliance spacing. All lengths use the same passive copper technology and support the same 10 Gbps line rate.

Q: Does this cable require any configuration or driver changes on the Checkpoint appliance?
A: No. The cable presents as a standard SFP+ physical layer to the host appliance and requires no software configuration, driver update, or EEPROM customisation. The Checkpoint appliance automatically detects the cable as a 10GBASE-CU link and brings the interface online without manual intervention.
