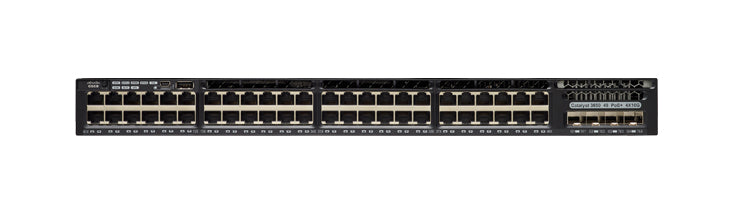

• Cisco WS-C3650-48TQ-L 48-port Gigabit Ethernet Switch with 4x10G SFP+ Uplinks
1 1

Cisco

Cisco WS-C3650-48TQ-L | Catalyst 3650 48-Port Gigabit Switch, 4x 10G SFP+, LAN Base

WS-C3650-48TQ-L

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst WS-C3650-48TQ-L is an enterprise-class stackable Layer 2+ access switch featuring 48 Gigabit Ethernet ports and 4x 10G SFP+ uplinks. With LAN Base feature set, it delivers comprehensive Layer 2 switching with optional StackWise-160 stacking for unified wired-wireless convergence. Ideal for campus and enterprise access layer deployments requiring high-density connectivity and 10G uplink performance.

Features

Comprehensive Layer 2 switching with LAN Base feature set
- Optional StackWise-160 stacking technology (160 Gbps stack bandwidth, up to 9 units)
- Cisco Unified Access Data Plane (UADP) ASIC for advanced performance
- Modular and field-replaceable redundant fans and power supply
- Dedicated 10/100/1000 management port (Mgmt-vrf)
- Dual console ports: RJ-45 and USB Type-B (mini-B)
- VLAN support: Up to 255 VLANs
- Spanning Tree Protocol: RSTP, MSTP, Rapid PVST+
- Link Aggregation: LACP (IEEE 802.3ad) and PAgP
- Quality of Service (QoS): MQC-based classification, marking, policing, and queuing
- Security: IEEE 802.1X, Port Security, DHCP Snooping, Dynamic ARP Inspection (DAI), IP Source Guard, RADIUS, TACACS+
- Access Control Lists (ACLs): IPv4 and IPv6 ACLs
- Flexible NetFlow (FNF) support
- IGMP snooping and MLD snooping for multicast optimization
- Energy Efficient Ethernet (EEE) IEEE 802.3az
- Uni-Directional Link Detection (UDLD)
- Remote Switch Port Analyzer (RSPAN) and SPAN
- Static routing support (up to 16 user-configured routes on LAN Base)
- Cisco Discovery Protocol (CDP) and Link Layer Discovery Protocol (LLDP)
- Cisco Prime Infrastructure and DNA Center ready
- Front-to-back airflow cooling

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Total Ports: 48x 10/100/1000 Ethernet (RJ-45)
- Uplink Ports: 4x 10 Gigabit Ethernet SFP+ (or 4x 1G SFP)
- Form Factor: 1U rack-mountable
- Switching Capacity: 176 Gbps
- Forwarding Rate: 130.95 Mpps
- MAC Address Table: 32,000 entries
- VLAN Support: Up to 255 VLANs (LAN Base)
- Memory: 4 GB RAM
- Flash Memory: 2 GB
- Stacking: Optional StackWise-160 (160 Gbps stack bandwidth, up to 9 switches)
- Power Supply: 250W AC
- PoE: No PoE support
- Management: CLI, Web GUI, SNMP, Cisco Prime Infrastructure
- Standards: IEEE 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3u, 802.3x, 802.3z
- Dimensions (W x D x H): 44.5 x 44.8 x 4.4 cm
- Operating Temperature: 0 to 45°C
- Certifications: FCC, CE, RoHS, VCCI, KCC, BSMI

FAQs

Q: What is the difference between LAN Base and IP Base feature sets?
A: LAN Base provides comprehensive Layer 2 switching with up to 255 VLANs, ACLs, QoS, and limited static routing. IP Base adds full Layer 3 routing capabilities (OSPF, EIGRP stub, RIP), support for 4094 VLANs, wireless controller functionality, and routed access. LAN Base switches can only stack with other LAN Base models.

Q: Can I upgrade the LAN Base license to IP Base or IP Services?
A: Yes, the WS-C3650-48TQ-L supports transparent software feature set upgrades through Cisco IOS CLI using the Right-To-Use (RTU) license process. You can purchase upgrade licenses (L-C3650-48-L-S for IP Base or L-C3650-48-L-E for IP Services) to unlock additional features.

Q: Does this switch support PoE?
A: No, the WS-C3650-48TQ-L does not support Power over Ethernet. For PoE+ capability, consider the WS-C3650-48PQ-L (390W) or WS-C3650-48FQ-L (775W) models which feature the same port configuration with PoE+ on all 48 ports.

Q: Is stacking supported on this model?
A: Yes, the WS-C3650-48TQ-L supports optional StackWise-160 stacking through the purchase of the C3650-STACK-KIT module. StackWise-160 provides 160 Gbps stack bandwidth and supports up to 9 switches in a single stack. Note that LAN Base switches can only stack with other LAN Base feature set switches.

Q: What are the uplink options for this switch?
A: The switch features 4x 10 Gigabit Ethernet uplink ports with SFP+ interfaces. These ports also support 1G SFP modules for flexible deployment. The 10G SFP+ uplinks provide high-bandwidth connectivity to distribution or core layers, ideal for campus aggregation and data center access applications.
