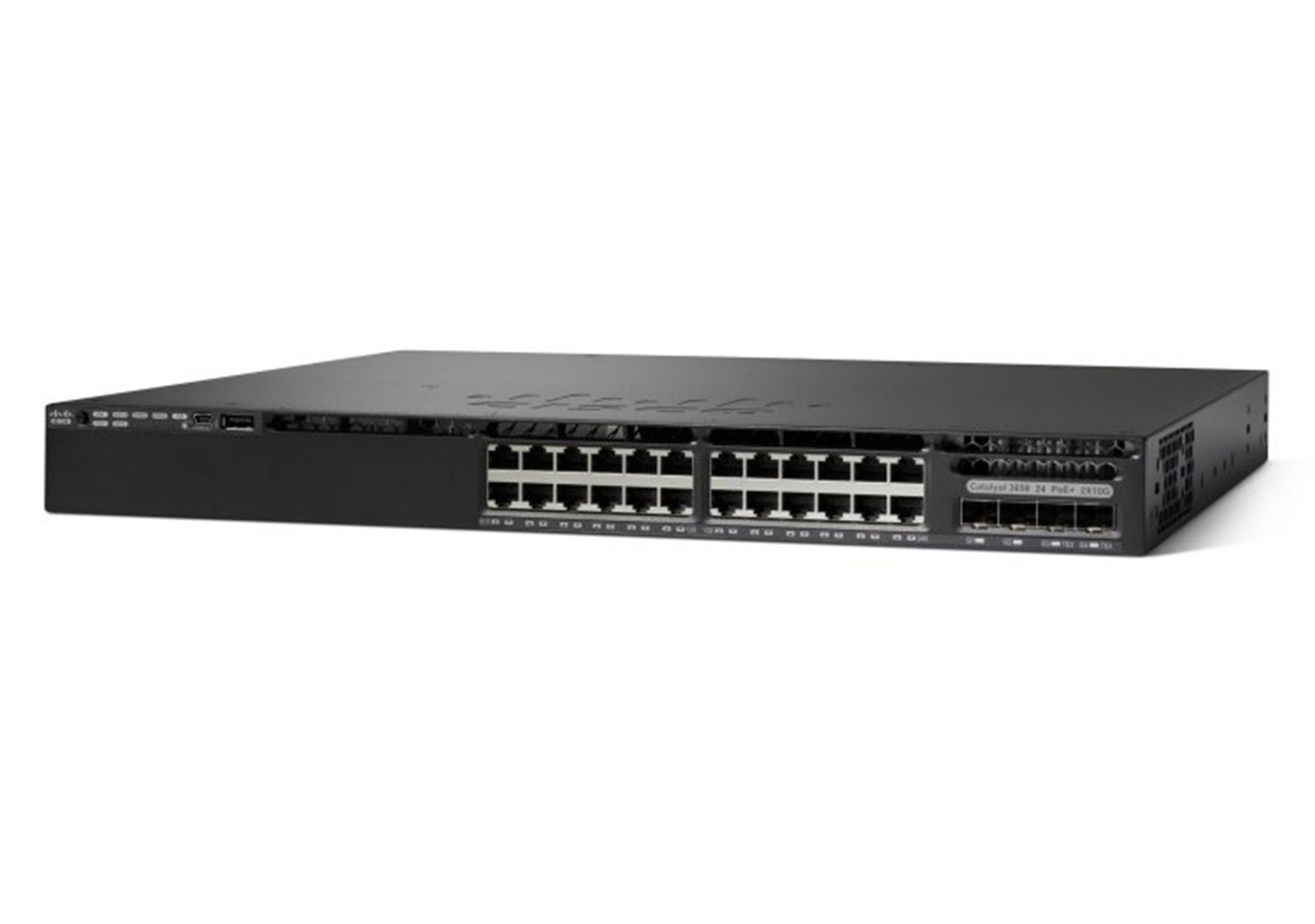

• Cisco WS-C3650-24TS-S switch with 24x1G ports and 4x1G SFP uplinks
1 1

Cisco

Cisco WS-C3650-24TS-S | Catalyst 3650 24-Port Gigabit Switch, 4x 1G SFP

WS-C3650-24TS-S

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst 3650-24TS-S is an enterprise-class stackable access layer switch designed for converged wired and wireless networks. Featuring 24 Gigabit Ethernet ports and 4x 1G SFP uplinks with IP Base software, it delivers uniform policy enforcement and advanced application visibility across unified access deployments. This 1U switch supports StackWise-160 technology for scalable, resilient campus networks.

Features

Cisco Unified Access Data Plane (UADP) ASIC architecture
- StackWise-160 stacking: up to 9 switches, 160 Gbps stack bandwidth
- Converged wired and wireless policy enforcement
- Flexible NetFlow for application visibility and traffic analytics
- Layer 2 switching with 1000 VLANs and 1000 SVIs
- IPv4 and IPv6 routing: up to 24,000 routes
- MAC address table: 32,000 entries
- Modular uplinks and field-replaceable fan tray
- Redundant power supply support (optional)
- 802.1x authentication and DHCP snooping
- Dynamic ARP inspection and IP Source Guard
- Quality of Service (QoS) with hardware-based classification
- Energy Efficient Ethernet (EEE) IEEE 802.3az
- Comprehensive security policies for wired and wireless users
- SNMP v1/v2c/v3, RMON, and LLDP support
- Web-based management interface and Cisco IOS CLI

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

24x 10/100/1000 Ethernet RJ45 ports
- 4x 1G SFP uplink ports
- Switching capacity: 88 Gbps
- Forwarding rate: 41.66 Mpps
- StackWise-160 technology: stack up to 9 switches with 160 Gbps stack bandwidth
- Memory: 4 GB RAM, 2 GB Flash
- IP Base feature set
- Power supply: 250W AC
- Form factor: 1U rackmount
- Dimensions: 44.5 x 44.5 x 4.4 cm
- Weight: 7.5 kg (16.5 lbs)
- Management: CLI, Web UI, SNMP, RMON
- Console port: RJ45
- MTBF: 336,090 hours
- Standards: IEEE 802.1D/p/Q/s/w/x, IEEE 802.3/ab/ad/u/x/z

FAQs

Q: Does the WS-C3650-24TS-S support Power over Ethernet?
A: No, this model does not support PoE. It provides data connectivity only through its 24 Gigabit Ethernet ports. For PoE requirements, consider the WS-C3650-24PS-S which offers PoE+ capability.

Q: Can this switch integrate wireless access points?
A: Yes, the Catalyst 3650 series supports up to 50 wireless access points and 1000 wireless clients per switch, enabling unified wired and wireless management on a single platform with consistent policy enforcement.

Q: What routing protocols are supported with IP Base?
A: IP Base includes static routing and basic Layer 3 features. For advanced routing protocols like OSPF, EIGRP, and BGP, an upgrade to IP Services license is required.

Q: Is stacking optional or required for this switch?
A: Stacking is optional. The WS-C3650-24TS-S can operate as a standalone switch or be stacked with up to 8 additional Catalyst 3650 switches using StackWise-160 technology for increased resiliency and simplified management.

Q: What uplink speeds does this model support?
A: This model features 4x 1G SFP uplink ports for fibre connectivity. For 10G uplink requirements, consider models with 10G SFP+ uplinks such as the WS-C3650-24TD series.
