• Cisco WS-C3650-24PS-E 24-port PoE+ switch with RJ45 ports
1 1

Cisco

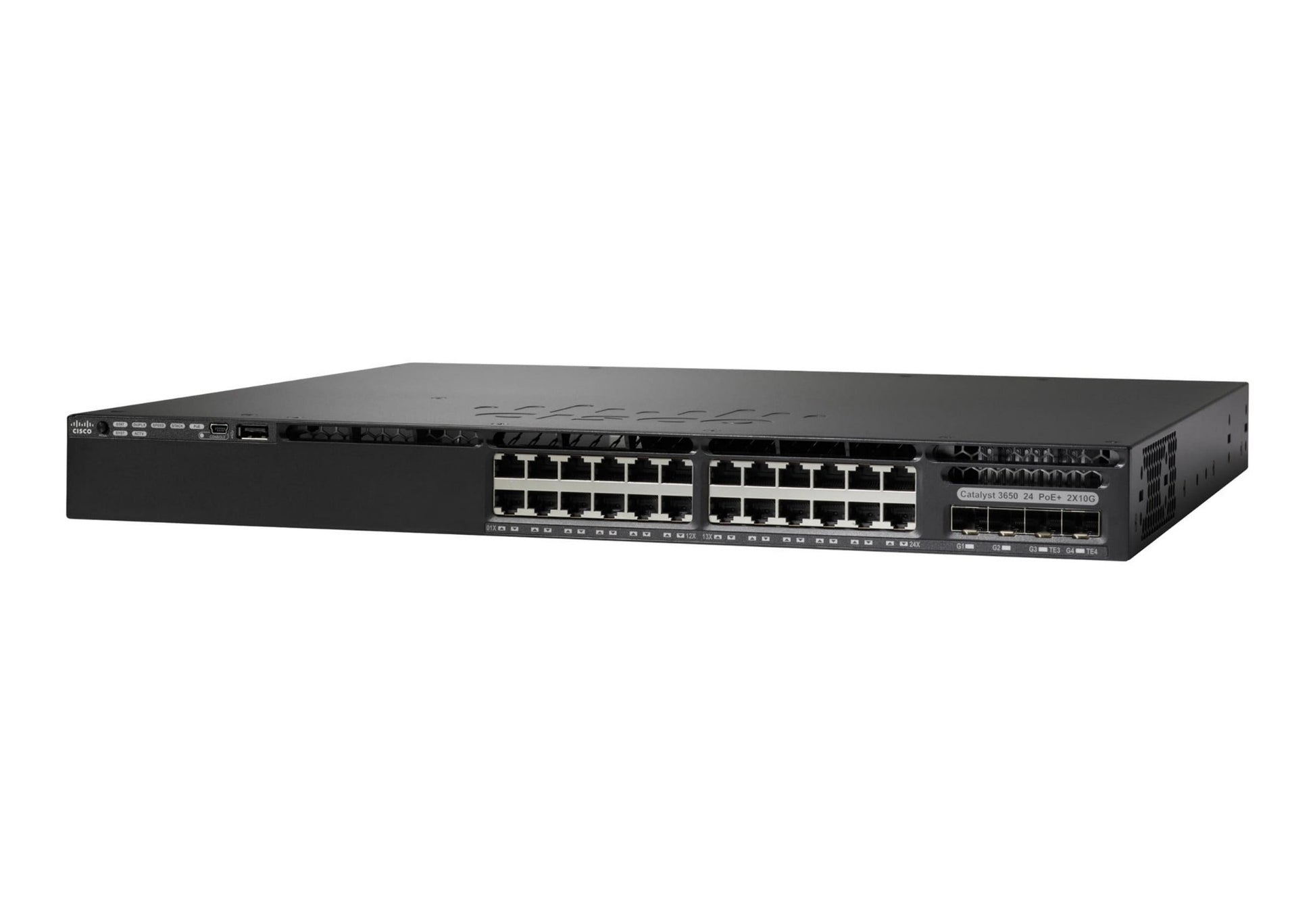

Cisco WS-C3650-24PS-E | Catalyst 3650 24-Port Gigabit PoE+ Switch, 390W, 4x 1G SFP

WS-C3650-24PS-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco WS-C3650-24PS-E is an enterprise-class stackable access switch designed for converged wired and wireless networks. With 24 Gigabit Ethernet PoE+ ports delivering 390W total power budget and 4 SFP uplinks, it supports IP phones, wireless access points, and security cameras. Built on StackWise-160 technology and the IP Services feature set, it delivers advanced Layer 3 routing, superior QoS, and robust security for campus and branch deployments.

Features

IP Services feature set with advanced Layer 3 routing (OSPF, EIGRP, BGP, PBR)
- Optional StackWise-160 stacking (up to 9 switches, 160 Gbps throughput)
- Converged wired and wireless access via Unified Access Data Plane (UADP) ASIC
- Integrated wireless controller capability (supports up to 50 APs per switch)
- Full IEEE 802.3at PoE+ support (30W per port, 390W total budget)
- Flexible NetFlow (FNF) for advanced traffic analytics and monitoring
- Comprehensive Layer 2 features: VLANs (4,094 VLAN IDs), STP/RSTP/MSTP, LACP, PAgP
- Advanced QoS with 8 egress queues per port for voice, video, and data prioritization
- Enhanced security: 802.1X, MACSec, IP Source Guard, Dynamic ARP Inspection, DHCP snooping
- Modular and field-replaceable fans and power supplies
- High availability with stateful switchover (SSO) on stack
- Perpetual PoE: Power to endpoints maintained during switch software upgrades
- Energy Efficient Ethernet (EEE) and advanced power management
- USB-based management and configuration
- Supports Cisco DNA Center and traditional CLI/SNMP management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

24 x 10/100/1000 Ethernet PoE+ ports (IEEE 802.3af/at, up to 30W per port)
- 4 x 1G SFP uplink ports
- PoE power budget: 390W
- Switching capacity: 88 Gbps
- Forwarding rate: 41.66 Mpps (wire speed)
- Memory: 4GB RAM, 2GB Flash
- MAC address table: 32,000 entries
- Stacking: Optional StackWise-160 (up to 9 switches, 160 Gbps stack bandwidth)
- Form factor: 1U rack-mountable (44.5 x 44.8 x 4.4 cm)
- Power supply: 640W AC (default), redundant power supply optional
- Management: Console (RJ45), USB (Type A & Mini-B), Ethernet management port, CLI, web GUI, SNMP
- Feature set: IP Services (advanced Layer 3 routing)
- Supported wireless APs per switch: Up to 50 APs, 1,000 wireless clients
- Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af, 802.3at, 802.3x, 802.3ad, 802.1D, 802.1Q, 802.1w, 802.1s, 802.1x, 802.1p, 802.1ab

FAQs

Q: What is the difference between the WS-C3650-24PS-E and WS-C3650-24PS-S?
A: The WS-C3650-24PS-E includes the IP Services feature set, which provides advanced Layer 3 routing capabilities, while the WS-C3650-24PS-S includes the IP Base feature set with more limited routing features. Both models offer identical hardware specifications, including 24 PoE+ ports, 390W PoE budget, and 4 SFP uplinks.

Q: Can this switch power Cisco wireless access points?
A: Yes, the WS-C3650-24PS-E supports IEEE 802.3at PoE+ with up to 30W per port and a 390W total budget, making it ideal for powering Cisco Aironet access points including the 1100, 1140, 1260, 1600, 2600, 3500, 3600, and 3700 series. The switch can support up to 50 APs and 1,000 wireless clients per switch or stack.

Q: Does this switch support stacking?
A: Yes, the WS-C3650-24PS-E supports optional StackWise-160 stacking. You can stack up to 9 switches for a total stack bandwidth of 160 Gbps, providing high availability, simplified management, and horizontal scalability. The stacking module and cables are sold separately (C3650-STACK-KIT).

Q: What Layer 3 routing protocols are supported with IP Services?
A: The IP Services feature set supports advanced routing protocols including OSPF, EIGRP, BGP, static routing, and policy-based routing (PBR). It also includes support for full IPv4 and IPv6 routing with up to 24,000 IPv4 routes, making it suitable for distribution-layer and advanced access-layer deployments.

Q: Is power supply redundancy available on this model?
A: Yes, the WS-C3650-24PS-E supports dual modular power supplies for N+1 redundancy. The switch ships with one 640W AC power supply by default, and a second power supply can be added for redundancy. Three field-replaceable fan modules are also included for cooling redundancy.
