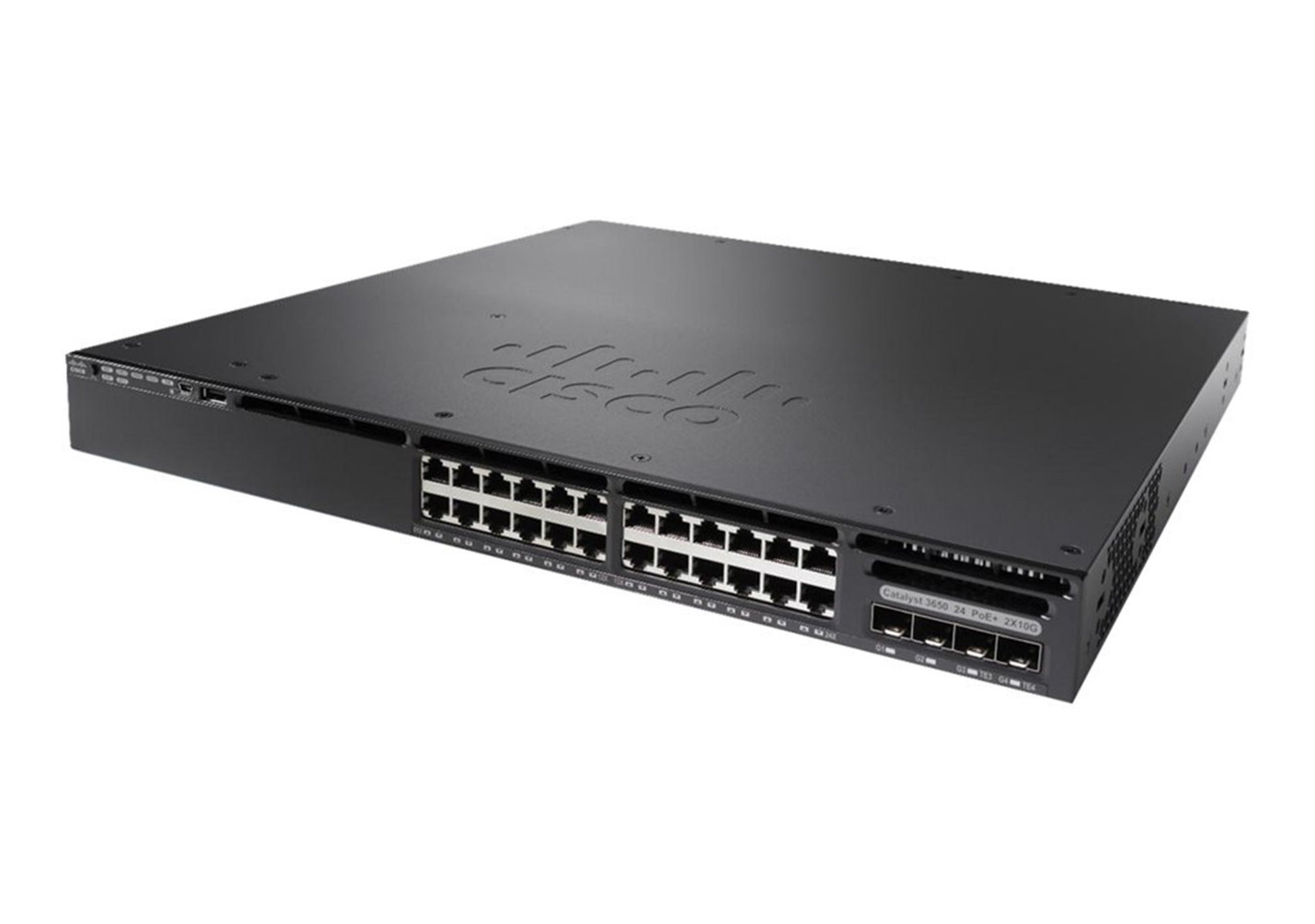

• Cisco WS-C3650-24PD-E black switch with 24x 1G PoE+ ports
1 1

Cisco

Cisco WS-C3650-24PD-E | Catalyst 3650 24-Port Gigabit PoE+ Switch, 390W, 2x 10G SFP+

WS-C3650-24PD-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco WS-C3650-24PD-E is an enterprise-class Layer 3 stackable switch designed for converged wired and wireless access deployments. With 24 Gigabit PoE+ ports delivering 390W of power budget and dual 10G SFP+ uplinks, it supports high-density access layer requirements while powering IP phones, access points, and IoT devices. Built on Cisco StackWise-160 technology and the Unified Access Data Plane ASIC, it delivers 88 Gbps switching capacity and full IP Services feature set for advanced routing and security.

Features

Layer 3 routing with IP Services: BGP-4, OSPF, EIGRP, IS-IS, RIP, PIM-SM/DM/SSM, policy-based routing
- IEEE 802.3at PoE+ with 390W budget supporting phones, cameras, and access points
- Cisco StackWise-160 technology for resilient stacking up to 9 units
- Cisco Unified Access Data Plane (UADP) ASIC for hardware-accelerated forwarding
- FlexStack-Plus for flexible uplink architecture
- Flexible NetFlow for application visibility and monitoring
- Embedded wireless controller supports up to 50 APs and 1,000 clients per switch
- Advanced security: IEEE 802.1X, MACSec encryption, TrustSec, IP Source Guard
- QoS with 8 egress queues, traffic shaping, policing, and marking
- Cisco VideoStream technology for optimized wireless video delivery
- Wireshark protocol analyzer support for embedded troubleshooting
- Redundant modular fans and power supplies with hot-swap capability
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
- Comprehensive management via CLI, SNMP, RMON, Embedded Event Manager, Prime Infrastructure

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

24x 10/100/1000 Mbps PoE+ Ethernet ports (IEEE 802.3at)
- 2x 10G SFP+ uplinks + 2x 1G SFP ports (shared)
- PoE budget: 390W (up to 30W per port)
- Switching capacity: 88 Gbps
- Forwarding rate: 68.45 Mpps
- Feature set: IP Services (advanced Layer 3 routing)
- Stacking: Up to 9 switches with 160 Gbps StackWise-160 bandwidth
- Memory: 4GB RAM, 2GB Flash
- MAC address table: 32,000 entries
- VLANs: 4,094 VLAN IDs supported, 1,000 SVIs
- Power supply: 640W AC (modular, field-replaceable)
- Management: CLI, SNMP v1/v2c/v3, RMON, Telnet, SSH, web GUI
- Dimensions: 44.5 x 44.8 x 4.4 cm (1U rack-mountable)
- Weight: Approximately 7.3 kg

FAQs

Q: What is the difference between the -E and -L license models?
A: The WS-C3650-24PD-E includes the IP Services license, which provides advanced Layer 3 routing protocols (BGP, OSPF, EIGRP, PIM) and policy-based routing. The -L model includes LAN Base with basic routing only. The -E is ideal for enterprise core/distribution layers requiring full routing capabilities.

Q: Can this switch support wireless LAN controller functionality?
A: Yes, the Catalyst 3650 Series supports integrated wireless controller functionality, allowing it to manage up to 50 access points or 1,000 wireless clients per switch. This enables converged wired-wireless deployments on a single platform with unified policy enforcement.

Q: How does StackWise-160 stacking work?
A: StackWise-160 allows up to 9 switches to be stacked into a single logical unit with 160 Gbps of stack bandwidth. The stack operates as one switch with unified management, configuration, and forwarding tables. Optional stacking modules (C3650-STACK-KIT) are required and sold separately.

Q: Is this switch compatible with modern Cisco IOS XE software?
A: Yes, the 3650 Series runs Cisco IOS XE software. Note that Cisco has announced end-of-sale for the Catalyst 3650 platform, with recommended migration to Catalyst 9300 Series for latest software features and long-term support.

Q: What power redundancy options are available?
A: The switch ships with a modular 640W AC power supply and supports an optional secondary redundant power supply (PWR-C2-640WAC) for full N+N redundancy. Power supplies are hot-swappable and field-replaceable without service interruption.
