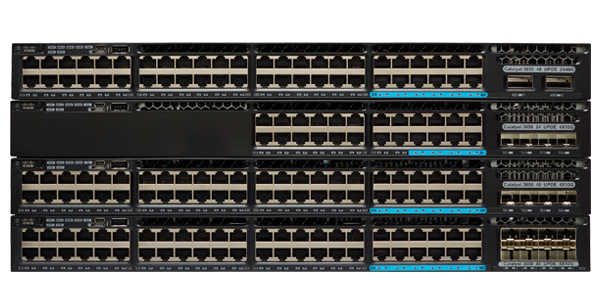

• Cisco WS-C3650-12X48UR-E 48-port switch with blue cables
1 1

Cisco

Cisco WS-C3650-12X48UR-E | Catalyst 3650 48-Port MultiGig UPOE Switch, 660W, 8x 10G SFP+

WS-C3650-12X48UR-E

Stock Status: Enquire

Request Quote
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco WS-C3650-12X48UR-E is a high-performance enterprise-class Layer 3 managed switch designed for converged wired-wireless campus networks. It features 36 Gigabit Ethernet ports, 12 multigigabit ports supporting 100M/1G/2.5G/5G/10G speeds, and 8x 10G SFP+ uplinks, all with Cisco Universal Power over Ethernet (UPOE) delivering up to 660W total PoE budget. With IP Services licensing, StackWise-160 stacking capability, and advanced routing and security features, this 1RU switch is ideal for enterprise access layer deployments supporting high-density wireless, IP telephony, and IoT devices.

Features

Layer 3 switching with full IP Services feature set including advanced routing protocols (OSPF, EIGRP, BGP)
- Cisco StackWise-160 stacking technology with 160 Gbps bandwidth, supporting up to 9 switches
- Integrated wireless controller capability for managing Cisco Aironet access points
- Cisco Universal Power over Ethernet (UPOE) delivering up to 60W per port, 660W total budget
- IEEE 802.3bz multigigabit Ethernet support (2.5GBASE-T and 5GBASE-T) on 12 ports
- Eight 10 Gigabit Ethernet SFP+ uplink ports for high-speed connectivity
- Cisco Unified Access Data Plane (UADP) ASIC for application visibility and performance
- Advanced security features: MACsec encryption, TrustSec SGT tagging, Dynamic ARP Inspection, DHCP snooping, IP Source Guard
- Comprehensive QoS with 8 egress queues per port, traffic shaping, and policying
- Flexible NetFlow for application visibility and traffic analysis
- Spanning Tree Protocol enhancements: Rapid PVST+, MST, RSTP
- Link aggregation with LACP and Cisco PAgP, cross-stack EtherChannel support
- Hot Standby Router Protocol (HSRP) and Virtual Router Redundancy Protocol (VRRP) for gateway redundancy
- IPv6 routing and management support with dual-stack capabilities
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
- Modular, field-replaceable redundant power supplies and fans
- Cisco DNA Center ready for intent-based networking and automation
- Single universal Cisco IOS XE Software image across all license levels

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Total Ports: 48 downlink ports (36x 10/100/1000 + 12x 100M/1G/2.5G/5G/10G multigigabit)
- Uplinks: 8x 10 Gigabit Ethernet SFP+ ports
- Power over Ethernet: Cisco Universal PoE (UPOE) on all 48 ports, 660W total PoE budget
- Switching Capacity: 472 Gbps
- Forwarding Rate: 351.19 Mpps (million packets per second)
- Stacking: StackWise-160 technology, 160 Gbps stacking bandwidth, up to 9 switches per stack
- Layer 3 Routing: IPv4 routing with 24,000 routes, IPv6 support
- VLAN Support: 4,094 VLANs, 1,000 Switched Virtual Interfaces (SVIs)
- MAC Address Table: 32,000 entries
- NetFlow Entries: 24,000
- Memory & Flash: DRAM varies by license tier, flash storage for IOS XE software
- Power Supply: 1100W AC power supply (default), supports dual redundant power supplies, field-replaceable
- Fans: Three field-replaceable fans
- Form Factor: 1RU rack-mountable or desktop
- Software: Cisco IOS XE with IP Services feature set
- Management: CLI, web GUI, SNMP, Cisco DNA Center, Cisco Prime Infrastructure
- Dimensions: Standard 19-inch rack width, 12-inch depth
- Operating Temperature: 32°F to 113°F (0°C to 45°C)
- Certifications: FCC Part 15 Class A, EN 55022 Class A, CISPR 22 Class A, UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, RoHS compliant

FAQs

Q: What is the difference between the standard Gigabit ports and multigigabit ports on this switch?
A: The WS-C3650-12X48UR-E has 36 standard 10/100/1000 Ethernet ports and 12 multigigabit ports that support 100Mbps, 1G, 2.5G, 5G, and 10G speeds using IEEE 802.3bz technology. The multigigabit ports are ideal for supporting next-generation 802.11ac Wave 2 and Wi-Fi 6 access points that require more than 1Gbps bandwidth over existing Cat5e/Cat6 cabling.

Q: What is Cisco Universal PoE (UPOE) and how much power can each port deliver?
A: Cisco UPOE provides up to 60W per port, exceeding the IEEE 802.3at PoE+ standard (30W). With a 660W total PoE budget, this switch can power high-wattage devices such as PTZ cameras, advanced wireless access points, video conferencing systems, thin clients, and building automation equipment. The switch intelligently manages power distribution across all 48 ports.

Q: Does the WS-C3650-12X48UR-E support stacking, and what are the benefits?
A: Yes, the switch supports Cisco StackWise-160 technology with 160 Gbps stacking bandwidth. You can stack up to 9 switches to create a single logical unit with unified management, configuration, and forwarding tables. Stacking provides simplified operations, high availability with cross-stack redundancy, and scalable performance for growing enterprise networks.

Q: What is included with the IP Services license tier on this model?
A: The IP Services (E suffix) license provides full Layer 3 routing capabilities including advanced IP unicast and multicast routing protocols (OSPF, EIGRP, BGP, PIM), policy-based routing, VRF-Lite for network segmentation, advanced QoS, comprehensive security features including MACsec encryption, and support for up to 24,000 IPv4 routes. It is the most feature-rich license tier for the Catalyst 3650 Series.

Q: Can this switch function as a wireless controller?
A: Yes, Catalyst 3650 Series switches have integrated wireless controller capability and can manage Cisco Aironet access points directly, eliminating the need for a separate wireless LAN controller. This enables true wired-wireless convergence with unified policy enforcement, simplified operations, and reduced total cost of ownership for campus deployments.
