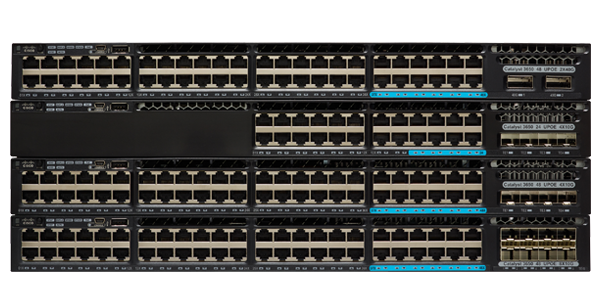

• Cisco WS-C3650-12X48UQ-E switch with ports and blue cables
1 1

Cisco

Cisco WS-C3650-12X48UQ-E | Catalyst 3650 48-Port MultiGig Switch, 660W UPOE, 4x 10G SFP+

WS-C3650-12X48UQ-E

Stock Status: Enquire

Request Quote
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco WS-C3650-12X48UQ-E is an enterprise-class stackable access switch with advanced multigigabit capabilities and Cisco UPOE support. Featuring 36 Gigabit Ethernet ports and 12 multigigabit ports supporting speeds from 100 Mbps to 10 Gbps, it delivers the bandwidth needed for 802.11ac Wave 2 wireless deployments and high-performance endpoints. With IP Services licensing, Layer 3 routing protocols, integrated wireless controller capability, and StackWise-160 technology, this switch provides a unified wired-wireless platform for demanding enterprise environments.

Features

Cisco StackWise-160 stacking technology for up to 9 switches with 160 Gbps total bandwidth
- Cisco Unified Access Data Plane (UADP) ASIC for wire-speed performance
- IEEE 802.3bz multigigabit Ethernet support (2.5GBASE-T and 5GBASE-T)
- Full Layer 3 routing with IP Services: OSPF, EIGRP, BGP, IS-IS, PIM, VRF-Lite
- Integrated wireless controller (mobility agent/controller) supporting 50 APs and 1000 clients
- Flexible NetFlow (FNF) Version 9 for application visibility and traffic analysis
- MACsec encryption (IEEE 802.1AE) for secure Layer 2 communications
- Comprehensive security: 802.1X, MAB, web authentication, DHCP snooping, Dynamic ARP Inspection, IP Source Guard
- Advanced QoS with 8 egress queues, traffic shaping, policing, and marking
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
- Modular and field-replaceable redundant fans and power supplies
- Stateful Switchover (SSO) and Non-Stop Forwarding (NSF) for high availability
- Support for up to 4,094 VLANs with voice VLAN and private VLAN capabilities
- Embedded Wireshark packet capture for troubleshooting and network analysis
- Single universal Cisco IOS Software image across all license levels

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Total Ports: 48 (36x 10/100/1000 + 12x 100M/1G/2.5G/5G/10G MultiGig)
- Uplinks: 4x 10G SFP+ (or 4x 1G SFP)
- PoE Type: Cisco Universal PoE (UPOE) on all 48 ports
- PoE Power Budget: 660W (with 1100W AC power supply)
- Switching Capacity: 392 Gbps
- Forwarding Rate: 291.66 Mpps
- Stacking: StackWise-160 (up to 9 switches, 160 Gbps stack bandwidth)
- Memory: 4 GB DRAM (upgradeable to 8 GB)
- Flash: 2 GB
- License: IP Services feature set (includes full Layer 3 routing)
- Management: CLI, Web GUI, SNMP, Cisco Prime Infrastructure
- Form Factor: 1 RU, 19-inch rack mountable
- Power Supply: Dual redundant modular (1100W AC primary, secondary optional)
- Integrated Wireless: Supports up to 50 access points and 1000 clients per switch/stack
- Standards: IEEE 802.3at PoE+, IEEE 802.3bz (2.5G/5GBASE-T), IEEE 802.1X, IEEE 802.3az EEE

FAQs

Q: What is the difference between the 36 standard ports and the 12 multigigabit ports?
A: The 36 ports support standard 10/100/1000 Ethernet speeds, while the 12 multigigabit ports support speeds from 100 Mbps up to 10 Gbps (100M/1G/2.5G/5G/10G), allowing you to support next-generation 802.11ac Wave 2 access points and high-bandwidth devices over existing Cat5e/Cat6 cabling.

Q: What is Cisco UPOE and how much power does each port support?
A: Cisco Universal PoE (UPOE) delivers up to 60W per port, exceeding the 30W limit of standard PoE+. This enables support for power-hungry devices such as telepresence systems, VDI clients, compact switches, and high-performance wireless access points. The switch provides a total PoE budget of 660W.

Q: Does this switch support wireless controller functionality?
A: Yes, with the IP Services license, the WS-C3650-12X48UQ-E can act as an integrated wireless controller (mobility controller or mobility agent), supporting up to 50 access points and 1000 wireless clients per switch or stack, eliminating the need for a standalone wireless controller in many deployments.

Q: What Layer 3 routing protocols are supported with IP Services?
A: The IP Services license includes advanced Layer 3 routing protocols such as OSPF, EIGRP, BGP, IS-IS, PIM-SM, PIM-DM, policy-based routing (PBR), and full IPv6 routing including OSPFv3 and EIGRPv6, making it suitable for routed access and distribution layer deployments.

Q: Can this switch be stacked with other Catalyst 3650 models?
A: Yes, using StackWise-160 technology, you can stack up to 9 Catalyst 3650 switches with 160 Gbps of stack bandwidth. Note that switches must have the same license level (IP Services switches can only stack with other IP Services switches, not with LAN Base or IP Base models).
