• Cisco WS-C3560E-48PD-SF 48-port PoE switch with 2x 10GbE uplinks
1 1

Cisco

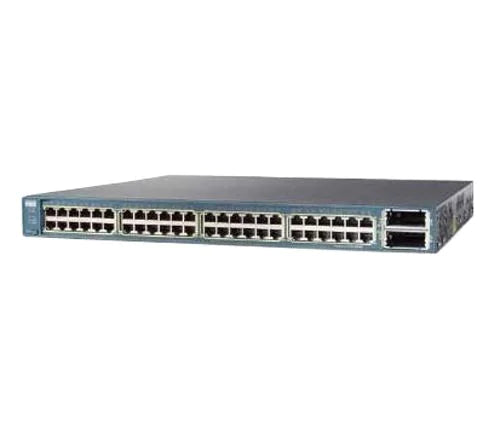

Cisco WS-C3560E-48PD-SF | 48x 1G PoE (802.3af + Enhanced), 2x 10GbE X2 uplinks, IP Base

WS-C3560E-48PD-SF

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-density Gigabit access switch with 48 PoE ports and dual 10GbE X2 uplinks for resilient aggregation. Delivers an 800W PoE budget from a field-replaceable 1150W AC PSU, enabling more than 15.4W to every port for demanding endpoints. Nonblocking 128 Gbps fabric and robust QoS/security make it ideal for enterprise edge and campus deployments.

Features

- 48-port Gigabit access with high-power PoE for dense IP phone, camera, and AP deployments
- Dual 10GbE X2 uplinks for resilient aggregation
- Large 800W PoE budget powers all ports beyond 15.4W (Enhanced PoE)
- Nonblocking 128 Gbps architecture for wire-rate forwarding
- Field-replaceable PSU and fan tray for easier serviceability
- Flexible uplink options via X2 optics or TwinGig 1G SFP conversions
- Rich QoS and access security for enterprise edge

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

FAQs

Technical Specifications

FAQs

Q: Does this switch support PoE+ (802.3at)?
A: No. It supports IEEE 802.3af PoE and Cisco Enhanced PoE for higher-than-15.4W output to compatible devices.

Q: Are the 10GbE uplinks SFP+?
A: No. They are X2 slots. You can use X2 10G modules (SR/LR/ER/CX4). With TwinGig converters you can use 1G SFPs, but not 10G SFP+.

Q: Does this model support stacking?
A: No. Catalyst 3560E switches operate as standalone units (no StackWise).

Q: Is redundant power available?
A: Yes. It supports the Cisco RPS 2300 external redundant power system and has field-replaceable internal PSU and fan tray.

Q: What features are included with the IP Base license?
A: IP Base provides Layer 2 with basic Layer 3 capabilities such as static routing and RIP. Advanced routing (e.g., full OSPF/EIGRP, PBR, advanced IPv6) requires IP Services.

Q: Which X2 optical modules are compatible?
A: Common options include 10GBASE-SR (850 nm, multimode), 10GBASE-LR (1310 nm, single-mode), 10GBASE-ER (1550 nm, single-mode), and 10GBASE-CX4 (copper). For 1G, use TwinGig converters with SFPs.

Technical Specifications

- Ports: 48x 10/100/1000BASE-T PoE (802.3af + Cisco Enhanced PoE)
- Total PoE budget: 800W (supports >15.4W on all 48 ports)
- Uplinks: 2x 10 Gigabit Ethernet X2 slots
- X2 optics support: 10GBASE-SR/LR/ER/CX4; TwinGig converters support 1G SFP (per bay)
- Switching capacity: 128 Gbps, nonblocking
- Form factor: 1RU fixed-configuration multilayer switch
- Power and cooling: Field-replaceable 1150W AC PSU and field-replaceable fan tray
- Feature set (license tier): IP Base
- Stacking: Not supported
- Redundancy: External RPS (Cisco RPS 2300) support via RPS port
- Security/QoS: 802.1X, ACLs, DHCP snooping, TrustSec-ready policies, hierarchical QoS
