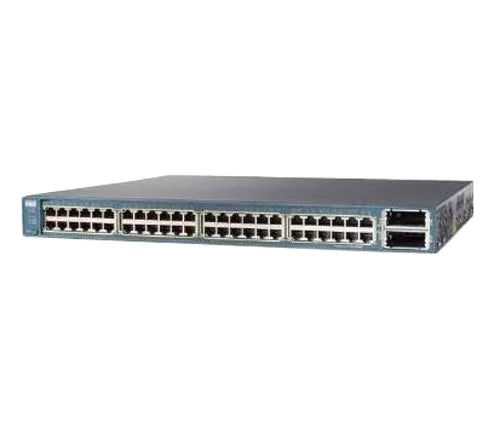

• Cisco WS-C3560E-48PD-E 48-port PoE switch with 10GbE uplinks
1 1

Cisco

Cisco WS-C3560E-48PD-E | 48x 1G PoE (802.3af + Enhanced), 2x 10GbE X2 uplinks, IP Services

WS-C3560E-48PD-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

48-port Gigabit PoE access switch with dual 10GbE X2 uplinks and advanced Layer 3 feature set. A 750W AC PSU provides a 420W PoE budget, delivering more than 15.4W to up to 24 ports. Nonblocking 128 Gbps switching and robust routing/security make it suited for aggregation-rich enterprise edge deployments.

Features

- 48-port Gigabit PoE access with advanced IP Services feature set
- Dual 10GbE X2 uplinks for high-speed aggregation
- 420W PoE budget supports >15.4W on up to 24 ports
- 128 Gbps nonblocking switching for wire-rate performance
- Field-replaceable PSU and fan tray for streamlined maintenance
- Flexible 10G/1G uplink options via X2 optics or TwinGig 1G SFP
- Enterprise-grade security and QoS at the access layer

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

FAQs

Technical Specifications

FAQs

Q: Does this switch support PoE+ (802.3at)?
A: No. It supports IEEE 802.3af PoE and Cisco Enhanced PoE for higher-than-15.4W output to compatible devices.

Q: Are the 10GbE uplinks SFP+?
A: No. They are X2 slots. You can use X2 10G modules (SR/LR/ER/CX4). With TwinGig converters you can use 1G SFPs, but not 10G SFP+.

Q: Does this model support stacking?
A: No. Catalyst 3560E switches operate as standalone units (no StackWise).

Q: Is redundant power available?
A: Yes. It supports the Cisco RPS 2300 external redundant power system and has field-replaceable internal PSU and fan tray.

Q: What features are included with the IP Services license?
A: IP Services adds advanced Layer 3 features such as full OSPF/EIGRP, PBR, multicast, and enhanced IPv6 routing beyond the basic L3 of IP Base.

Q: Which X2 optical modules are compatible?
A: Common options include 10GBASE-SR (850 nm, multimode), 10GBASE-LR (1310 nm, single-mode), 10GBASE-ER (1550 nm, single-mode), and 10GBASE-CX4 (copper). For 1G, use TwinGig converters with SFPs.

Technical Specifications

- Ports: 48x 10/100/1000BASE-T PoE (802.3af + Cisco Enhanced PoE)
- Total PoE budget: 420W (>15.4W for up to 24 ports)
- Uplinks: 2x 10 Gigabit Ethernet X2 slots
- X2 optics support: 10GBASE-SR/LR/ER/CX4; TwinGig converters support 1G SFP (per bay)
- Switching capacity: 128 Gbps, nonblocking
- Form factor: 1RU fixed-configuration multilayer switch
- Power and cooling: Field-replaceable 750W AC PSU and field-replaceable fan tray
- Feature set (license tier): IP Services (advanced IPv4/IPv6 routing)
- Stacking: Not supported
- Redundancy: External RPS (Cisco RPS 2300) support via RPS port
- Security/QoS: 802.1X, ACLs, DHCP snooping, TrustSec-ready policies, hierarchical QoS
