Cisco

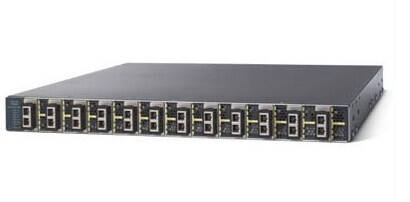

Cisco WS-C3560E-12SD-S | 12x 1GbE SFP | PoE: none | uplinks: 2x 10GbE X2 | license: IP Base | fabric: 68 Gbps

WS-C3560E-12SD-S

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Enterprise-grade 1RU multilayer switch with 12 SFP Gigabit Ethernet ports and 2 X2-based 10GbE uplinks. The 68 Gbps wire-rate fabric ensures nonblocking performance for fiber aggregation and distribution roles. Dual hot-swappable 300W AC or DC power supplies and redundant field-replaceable fans provide carrier-class availability. The IP Base feature set delivers Layer 3 Lite (static routing, RIP, inter-VLAN routing), IPv6, advanced QoS, security ACLs, and multicast control for converged campus networks.

Features

- 12x SFP Gigabit ports with 2x 10GbE X2 uplinks for flexible fiber aggregation
- 68 Gbps wire-rate fabric for nonblocking throughput
- High availability with dual hot-swappable PSUs and redundant FRU fans
- IP Base feature set with IPv6, QoS, security, and Layer 3 Lite routing
- Comprehensive Layer 2 capabilities including VLANs, Spanning Tree, and LACP
- Robust security: 802.1X, DHCP snooping, IP Source Guard, and ACLs
- Operational visibility via SSH/CLI, SNMP, RMON

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 12x 1GbE SFP
- Uplinks: 2x 10GbE X2
- Switching capacity: 68 Gbps (wire-rate)
- PoE: Not supported
- Software tier: IP Base (Layer 3 Lite: static routing, RIP, inter-VLAN routing, IPv6)
- Redundancy: Dual hot-swappable 300W AC or DC PSUs (model dependent), redundant FRU fans
- Form factor: 1RU fixed configuration
- Layer 2 features: 802.1Q VLANs, STP/RSTP/MST, EtherChannel/LACP
- Security: 802.1X, DHCP snooping, IP Source Guard, DAI, ACLs
- QoS: Hierarchical QoS with per-port and per-VLAN policies
- Multicast: IGMP snooping, MLD snooping
- Management: Console/SSH, SNMP, RMON, NetFlow-Lite (platform dependent)

FAQs

Q: Does this model support PoE?
A: No. The WS-C3560E-12SD-S has SFP-based Gigabit ports without PoE support.

Q: Which 10GbE optics are supported on the X2 ports?
A: Typical X2 modules such as 10GBASE-SR, -LR, -ER, and CX4 are supported. Use Cisco-compatible X2 modules for best results.

Q: Can I upgrade from IP Base to IP Services?
A: Yes. An upgrade license and the corresponding IOS image are required to move from IP Base to IP Services.

Q: Does the 3560E support stacking?
A: No. The Catalyst 3560E is a standalone switch (no StackWise).

Q: Are both AC and DC power supplies available?
A: Yes. The platform supports 300W AC or DC hot-swappable PSUs, depending on the PSU module installed.
