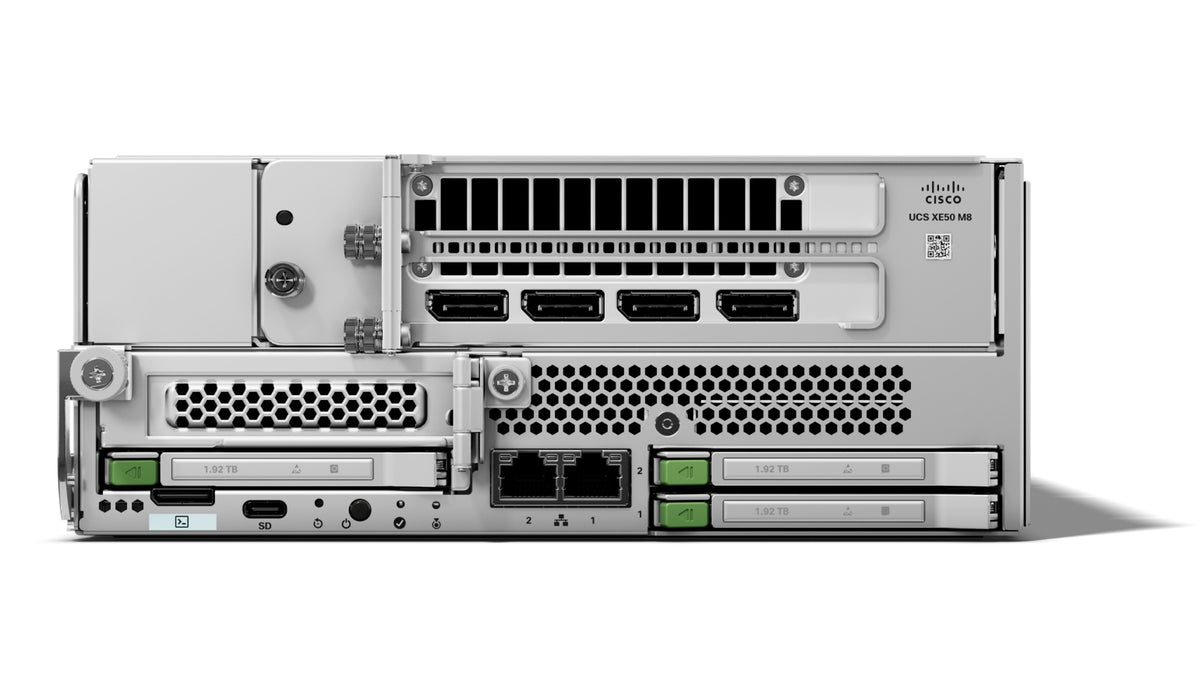

• Back side of a metallic silver Cisco UCSXE-150C-M8-32-U 2U server chassis with multiple ethernet ports and expansion slots
1 1

Cisco

Cisco UCSXE-150C-M8-32-U | UCS XE150c M8 32-Core 2U Compute Node, No Peripherals

UCSXE-150C-M8-32-U

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS XE150c M8 is a 2RU, half-width, short-depth edge compute node built around a single Intel Xeon 6 SoC with P-cores, in this 32-core version at 2.0 GHz. It supports 8 DDR5 DIMM slots, an optional full-height PCIe Gen5 GPU slot and E3.S NVMe storage, making it suited to bare-metal, virtualisation, container and AI/ML workloads at the edge. This SKU is ordered standalone without peripherals and mounts in a Cisco UCS XE9305 chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Tool-free, sled-based design for easy serviceability
- Intel AVX-512, AMX, VT, Turbo Boost, QAT v2.2 and DSA acceleration
- Intel Media Accelerator (32-core nodes only)
- Security features including Intel Boot Guard, TXT, TDX, SGX and TME-MK
- Suited to bare-metal, virtualisation, containers and AI/ML workloads at the edge
- Managed via Cisco Intersight

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2RU-high, half-width, short-depth compute node; up to two per UCS XE9305 chassis
- CPU: one Intel Xeon 6 SoC with P-cores, 32 physical cores at 2.0 GHz
- Memory: 8 DDR5 DIMM slots, RDIMMs up to 6400 MT/s, up to 1TB with 8 x 128GB DIMMs
- Networking: 2 x rear-facing integrated 25 Gbps ports to the chassis mid-plane, plus 2 x front-facing integrated 10 Gbps RJ-45 host ports
- GPU: dedicated full-height/full-length PCIe Gen5 slot for an optional GPU
- Storage: up to 2 internal M.2 SSDs with hardware RAID 1, plus front-facing E3.S NVMe drives (up to 4 drives, up to 120 TB with 30TB drives)
- Riser configurations: Storage-Optimised and IO-Optimised
- Chassis power: UCS XE9305 supports 2400W (220V) or 1300W (120V) hot-swap PSUs; 3200W PSUs for GPU configurations

FAQs

Q: Which chassis does the UCS XE150c M8 compute node install in?
A: It mounts in a Cisco UCS XE9305 chassis, which holds up to two XE150c M8 compute nodes.

Q: How many cores does this SKU have?
A: This SKU is the 32-core version with a single Intel Xeon 6 SoC with P-cores at 2.0 GHz. The family also offers a 20-core option.

Q: Can a GPU be fitted to this compute node?
A: Yes. It has a dedicated full-height/full-length PCIe Gen5 slot for an optional GPU, such as the NVIDIA L40S or RTX PRO 4500/6000 Blackwell Server Edition. GPU configurations use 3200W power supplies in the chassis.

Q: How much memory does it support?
A: It has 8 DDR5 DIMM slots supporting RDIMMs up to 6400 MT/s, for up to 1TB using 8 x 128GB DIMMs.

Q: What storage options are available?
A: The node supports up to 2 internal M.2 SSDs with hardware RAID 1, plus front-facing E3.S NVMe drives, up to 4 drives and up to 120 TB with 30TB drives.
