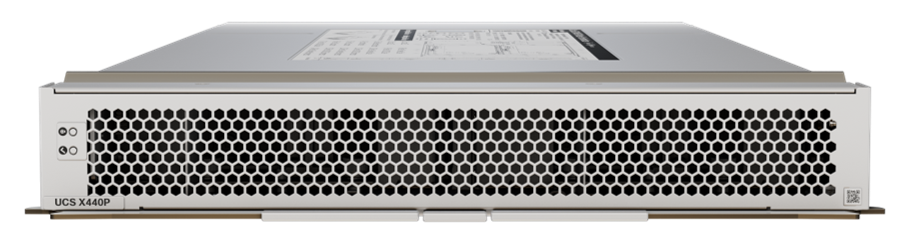

Cisco UCSX-440P-D | Gen4 PCIe expansion node | Riser-ready (no riser) | X-Fabric attach | for X-Series modular chassis

SKU:UCSX-440P-D

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Modular PCIe Gen4 expansion node for X-Series chassis, enabling high-performance GPU, NIC, and NVMe add-in cards for compute nodes via the low-latency X-Fabric. This configuration is riser-ready and ships without a riser, allowing you to select the appropriate Type A (1x FHFL) or Type B (2x HHHL) option for your workload. Powered and cooled by the chassis; assignment to compute nodes is handled through centralized management.

Features

- PCIe Gen4 bandwidth for modern accelerators and I/O
- Riser-ready design for maximum configuration flexibility
- Seamless X-Fabric connectivity to compute nodes
- Chassis-delivered power and cooling
- Centralized configuration and lifecycle management
- Tool-less sled serviceability

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Does this unit include a riser?
A: No. It is riser-ready and supports either Type A (1x FHFL) or Type B (2x HHHL) risers.

Q: Which riser should I choose?
A: Select Type A for a single full-height, full-length card, or Type B for two half-height, half-length cards.

Q: Is external power required for add-in cards?
A: No. Power and cooling are delivered by the chassis.

Q: How is the node connected to the server?
A: Through the X-Fabric inside the chassis, mapped to a compute node via centralized management.

Q: Are GPUs supported?
A: Yes, provided the GPU matches the riser’s form factor and the platform’s power/thermal specifications.

Technical Specifications

- Form factor: Modular PCIe expansion node (sled) for X-Series chassis
- PCIe standard: PCIe Gen4
- Riser configuration: Not included (riser-ready)
- Supported risers: Type A (1x FHFL) or Type B (2x HHHL), sold separately
- Fabric attachment: X-Fabric backplane connection to target compute node
- Supported card types: GPUs, high-speed NICs, NVMe/accelerators (within power/thermal limits)
- Power and cooling: Provided by chassis; no external power leads to cards
- Management: Assign and manage through centralized domain management (e.g., Intersight)
- Installation: Tool-less sled insertion/removal within chassis service procedures
- Use-case flexibility: Choose riser based on FHFL vs. HHHL card requirements
