Cisco

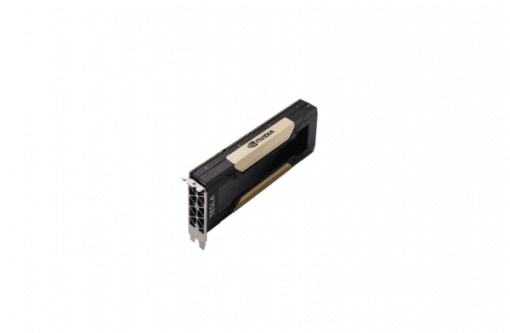

Cisco UCSC-GPU-T4-16 | NVIDIA T4 16GB GDDR6 GPU, 75W, HHHL Single-Wide

SKU:UCSC-GPU-T4-16

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

This GPU accelerator card is built on the NVIDIA T4 with 16GB of GDDR6 memory and is designed for Cisco UCS C-Series rack servers. It suits AI inference, machine learning, virtual desktop infrastructure and video transcoding workloads in the data centre.

The card uses the NVIDIA Turing architecture and connects over a PCIe 3.0 x16 interface. It is a passively cooled, half-height, half-length, single-wide design with a maximum power draw of 75W, drawn entirely from the PCIe slot with no auxiliary power connector. The low-profile form factor allows up to three cards in a supported server such as the UCS C220 M5, which needs two CPUs and two full-height rear risers to host GPUs.

It requires Cisco IMC and BIOS version 4.0(2e) or later and UCS Manager 4.0(2c) or later, and GPUs cannot be mixed within the same server. No licence is needed for basic operation, while NVIDIA vGPU software is licensed separately when virtualisation is used.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- NVIDIA Turing architecture GPU with 16GB of GDDR6 memory
- Single-wide low-profile design allows up to three cards per supported server
- Suited to AI inference, machine learning and video transcoding
- Supports virtual desktop (vGPU) deployments with separately licensed NVIDIA vGPU software
- Powered entirely from the PCIe slot with no auxiliary power connector
- Includes a unique SBIOS ID recognised by Cisco management tools such as CIMC and UCSM

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- GPU: NVIDIA T4 (Turing architecture)
- GPU memory: 16 GB GDDR6
- Interface: PCIe 3.0 x16
- Maximum power consumption: 75 W
- Cooling: Passive
- Form factor: Half-height, half-length (HHHL), single-wide
- Maximum GPUs per UCS C220 M5 server: 3 (PCIe slots 1 and 2, with two CPUs and two full-height rear risers)
- Minimum Cisco IMC/BIOS version: 4.0(2e)
- Minimum Cisco UCS Manager version: 4.0(2c)
- GPU mixing: Not supported in the same server
- Requirement: Memory-mapped I/O greater than 4 GB
- Auxiliary power connector: None, powered from the PCIe slot

FAQs

Q: Does this GPU need a licence?
A: No licence is needed for basic operation. NVIDIA vGPU software, such as vApps, vPC or vWS, is licensed separately if you use virtualisation.

Q: What power does the card require?
A: It draws a maximum of 75W directly from the PCIe slot and has no auxiliary power connector. The server needs two CPUs and two full-height rear risers to support GPUs.

Q: Which servers and software versions does it work with?
A: It is supported in Cisco UCS C-Series rack servers, for example the C220 M5 with up to 3 GPUs. It requires Cisco IMC/BIOS 4.0(2e) or later and UCS Manager 4.0(2c) or later.

Q: Can I mix different GPU models in the same server?
A: No. GPU mixing is not supported within a single server, so all installed GPUs must be the same model.

Q: Are there any BIOS requirements for this card?
A: Yes. The server must support memory-mapped I/O greater than 4 GB.
