• NVIDIA Quadro RTX 8000 GPU with 48GB GDDR6, passive cooling

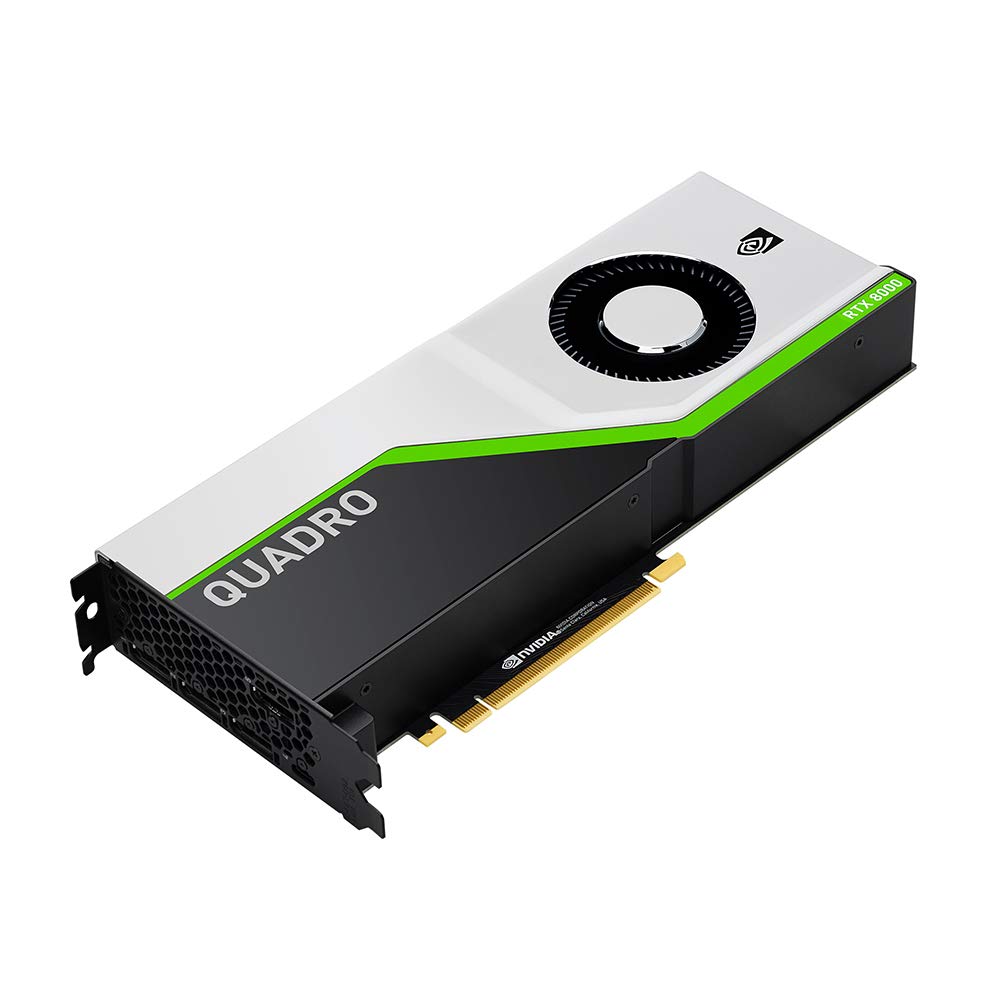

  • NVIDIA Quadro RTX 8000 GPU with 48GB GDDR6 and green accents
1 2

Cisco

Cisco UCSC-GPU-RTX8000 | Quadro RTX 8000 Passive Graphics Card, 48GB GDDR6

UCSC-GPU-RTX8000

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Cisco UCSC-GPU-RTX8000 is a professional graphics card powered by the NVIDIA Turing architecture, designed for demanding workstation and data center applications. With 48GB of GDDR6 ECC memory and passive cooling, it excels in AI development, ray tracing, complex CAD workflows, scientific visualization, and virtual workstation deployments. Supporting NVLink for multi-GPU scaling and vGPU virtualization, it delivers exceptional compute power for rendering, simulation, deep learning, and large dataset processing in enterprise server environments.

Features

NVIDIA Turing GPU architecture with 4,608 CUDA cores for parallel computing
- Hardware-accelerated ray tracing with 72 RT Cores for photorealistic rendering
- 576 Tensor Cores for accelerated AI, deep learning, and neural network training
- 48GB GDDR6 memory with ECC protection for data integrity in mission-critical applications
- 672GB/s memory bandwidth for handling massive datasets and complex models
- Passive cooling design optimized for server rack environments with centralized airflow
- NVLink support for multi-GPU configurations up to 96GB combined memory
- PCIe 3.0 x16 interface for compatibility with enterprise server platforms
- Four DisplayPort 1.4 outputs supporting up to 4K @ 120Hz or 8K @ 60Hz resolution
- VirtualLink connector for simplified VR headset connectivity
- NVIDIA vGPU software compatibility for virtual workstation deployments
- Hardware encode/decode engines for video processing workflows
- Support for NVIDIA Mosaic, Sync, and Warp/Blend technologies for multi-display visualization
- Certified for professional applications including AutoCAD, SolidWorks, Adobe Creative Suite, and more
- VR Ready for immersive design review and visualization workflows

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

GPU Architecture: NVIDIA Turing
- CUDA Cores: 4,608
- Tensor Cores: 576 (for AI acceleration)
- RT Cores: 72 (for real-time ray tracing)
- GPU Memory: 48GB GDDR6 with ECC
- Memory Interface: 384-bit
- Memory Bandwidth: 672 GB/s
- FP32 Performance: 16.3 TFLOPS
- Tensor Performance: 130.5 TFLOPS
- System Interface: PCIe 3.0 x16
- Power Consumption: 250W TGP (Thermal Design Power)
- Cooling: Passive (fanless)
- Display Outputs: 4x DisplayPort 1.4, 1x VirtualLink
- Maximum Displays: Up to 4 simultaneous (4K @ 120Hz)
- NVLink Support: Yes (connects two RTX 8000 GPUs for 96GB total memory)
- Form Factor: Dual-slot, full-height
- Dimensions: 10.5 inches (L) x 4.4 inches (H)
- vGPU Software: Compatible with NVIDIA vGPU for virtual workstations

FAQs

Q: What server platforms is the UCSC-GPU-RTX8000 compatible with?
A: This GPU is designed for Cisco UCS C-Series rack servers, including the C240 M5 and similar models with appropriate PCIe riser configurations. It requires a PCIe 3.0 x16 slot and passive cooling support in the server chassis, as this is a fanless card designed for server airflow cooling.

Q: Can I link multiple UCSC-GPU-RTX8000 cards together?
A: Yes, the RTX 8000 supports NVIDIA NVLink technology. You can connect two cards using an NVLink HB Bridge to achieve 96GB of combined GPU memory and up to 100GB/s bidirectional data transfer bandwidth, ideal for scaling performance in complex rendering, simulation, and AI training workloads.

Q: What are the primary use cases for this GPU?
A: The Quadro RTX 8000 is built for professional applications including photorealistic rendering with hardware ray tracing, AI model training and inference, complex CAD and simulation workflows, visual effects and 8K video editing, scientific visualization with large datasets, and virtualized GPU workstations using NVIDIA vGPU software in data center environments.

Q: Does this GPU support virtualization?
A: Yes, the UCSC-GPU-RTX8000 is fully compatible with NVIDIA vGPU software, including Quadro vDWS (Virtual Data Center Workstation). This enables administrators to create multiple virtual workstations from a single GPU, allowing remote professionals to access high-performance graphics from any device while improving data center utilization.

Q: What power supply requirements are needed for this GPU?
A: The RTX 8000 Passive has a total board power of 250W (the reference active-cooled version is 295W). Ensure your Cisco UCS server has adequate PSU capacity and the appropriate PCIe power connectors. The passive cooling design relies on server chassis airflow, so proper ventilation and compatible riser cards are essential.
