Cisco

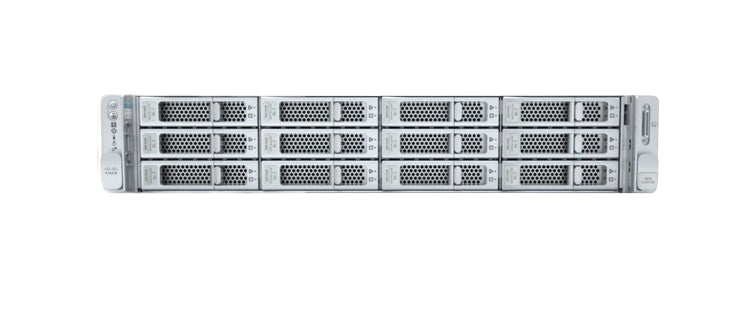

Cisco UCSC-C240-M6L | 2U rack, dual Xeon Scalable Gen3, 12-bay LFF (3.5in) SAS/SATA, 32 DIMM slots up to multi‑TB, PCIe Gen4, flexible RAID/HBA

SKU:UCSC-C240-M6L

Regular price POA
POA
POA
Sale Sold out
Shipping calculated at checkout.

Description

Balanced 2U LFF platform for high-capacity workloads, ideal for data lakes, backup, and software-defined storage. Ships without CPUs, memory, or drives, enabling tailored builds around 3rd Gen Xeon and large 3.5-inch bays.

Features

- High-capacity LFF storage for data-heavy applications
- 3rd Gen Intel Xeon Scalable performance with PCIe Gen4 I/O
- 32 DIMM slots for very large memory footprints
- Hot-swap 3.5-inch bays for easy serviceability
- Flexible RAID/HBA choices to match workload needs
- Out-of-band management and automation readiness

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Are CPUs, memory, and drives included?
A: No. This is a barebones chassis without CPU, memory, or drives.

Q: How many 3.5-inch drive bays are available?
A: Up to 12 LFF bays are supported in the front cage.

Q: Does it support PCIe Gen4?
A: Yes, PCIe Gen4 is supported with 3rd Gen Intel Xeon Scalable platforms.

Q: Can I use NVMe drives in the LFF chassis?
A: NVMe is supported on specific backplanes and configurations. Verify your backplane before ordering NVMe media.

Q: Are rails and bezels included?
A: These are optional accessories and may be purchased separately.

Technical Specifications

- Form factor: 2U rack (LFF chassis)
- Chipset/Platform: Intel C621A with 3rd Gen Intel Xeon Scalable
- CPU: Up to 2 processors
- Memory: 32 DIMM slots; multi‑terabyte capacities with LRDIMM/Optane PMem (configuration-dependent)
- Drive bays: Up to 12 x 3.5in LFF SAS/SATA (hot-swap)
- NVMe: Supported on select configurations/backplanes (optional)
- RAID/HBA: 12G SAS RAID or HBA options (sold separately)
- Expansion: PCIe Gen4 slots for high-speed NICs/accelerators (model-dependent)
- Networking: Modular VIC/mLOM options (sold separately)
- Power: Dual hot‑swap redundant PSUs supported (sold separately)
