Cisco

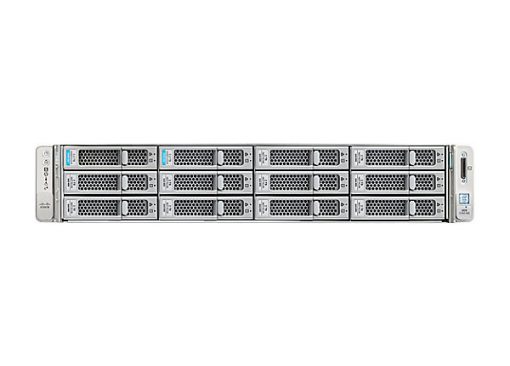

Cisco UCSC-C240-M5L | 2U rack server chassis, 12x LFF + 2x rear SFF bays, dual-socket Intel Xeon Scalable (LGA3647), 24 DIMM slots DDR4, hot-swap drives, modular RAID/VIC, no CPU/memory/drives/PCIe/PSU

SKU:UCSC-C240-M5L

Regular price POA
POA
POA
Sale Sold out
Shipping calculated at checkout.

Description

Enterprise 2U rack-mount chassis configured for capacity with 12x front 3.5-inch bays plus 2x rear 2.5-inch bays. Supports up to two Intel Xeon Scalable CPUs and 24 DDR4 DIMM slots for dense memory footprints. This listing is for the bare chassis only—no CPUs, memory, drives, PCIe cards, or power supplies are included. Modular storage controllers and VIC network adapters are supported for flexible I/O.

Features

- Capacity-optimized: 12x LFF front bays plus 2x rear SFF for boot or cache
- Dual-socket performance with Intel Xeon Scalable architecture
- 24 DIMM slots for high-density DDR4 memory
- Hot-swap drives and power supply design for serviceability
- Flexible I/O with modular VIC and PCIe options
- Compatible with enterprise 12G SAS RAID/HBA controllers
- Integrated out-of-band system management
- Configurable for a wide range of storage and virtualization workloads

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What is included in this chassis?
A: Bare chassis with backplane and drive bays as specified. No CPUs, memory, drives, RAID/VIC cards, PCIe adapters, or power supplies are included.

Q: Which processors are supported?
A: Dual-socket Intel Xeon Scalable (1st/2nd Gen, LGA3647).

Q: How much memory can it support?
A: Up to 24 DDR4 DIMMs using RDIMM/LRDIMM (capacity depends on DIMM size and CPU generation).

Q: What storage controllers work with this model?
A: 12G SAS RAID/HBA controllers and modular options are supported; choose based on required RAID level and NVMe/SAS/SATA mix.

Q: Are rails and bezel included?
A: Not by default. Rails, bezel, and cables are optional accessories.

Technical Specifications

- Form factor: 2U rack-mount
- CPU: Up to 2x Intel Xeon Scalable (1st/2nd Gen) LGA3647 (CPUs not included)
- Memory: 24x DDR4 ECC RDIMM/LRDIMM slots (memory not included)
- Front drive bays: 12x 3.5-inch LFF hot-swap
- Rear drive bays: 2x 2.5-inch SFF hot-swap
- Drive types: SAS/SATA HDD/SSD (NVMe support depends on backplane/controller)
- Storage controller: 12G SAS RAID/HBA options supported (controller not included)
- I/O: Modular VIC and PCIe Gen3 expansion (adapters not included)
- Power: Supports up to 2x hot-swap PSUs (770W/1050W/1600W; PSUs not included)
- Management: Integrated management controller with out-of-band access
- Operating temperature: Data center/enterprise environment
- Rail kit: Optional (not included unless specified)
