Cisco

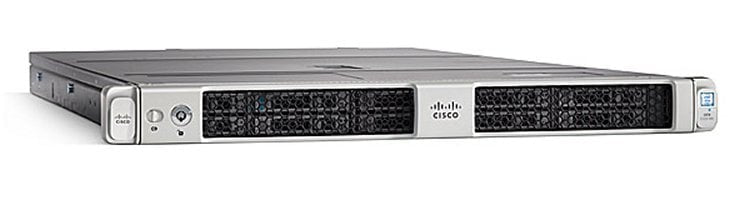

Cisco UCSC-C220-M5SX | 1U rack server | dual Intel Xeon Scalable (Gen1/Gen2) | 10x 2.5 in SFF bays | DDR4 up to 3TB across 24 DIMMs | PCIe 3.0 expansion | modular VIC mLOM networking | dual hot-swap PSUs | IMC out-of-band management

SKU:UCSC-C220-M5SX

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-density 1U platform designed for virtualization, private cloud, and edge workloads. The SFF 10-bay chassis supports flexible SAS/SATA (and optional NVMe depending on backplane), dual Intel Xeon Scalable CPUs, and modular VIC networking for 10/25/40/100G connectivity (adapter dependent). This listing is typically a barebone configuration and may ship without CPU, memory, drives, or NICs unless otherwise specified.

Features

- Compact 1U design with 10-bay SFF storage capacity
- Dual-socket Xeon Scalable platform for high core density
- Flexible storage mix with SAS/SATA and optional NVMe (config dependent)
- Redundant hot-swap power supplies for high availability
- Modular VIC networking for 10/25/40/100G I/O options
- Enterprise-class IMC for remote management and automation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What is included with this chassis?
A: It is commonly sold as a barebone unit and may exclude CPU, memory, drives, and network adapters. Check the specific configuration before purchase.

Q: Which processors are supported?
A: Up to two Intel Xeon Scalable 1st or 2nd Gen (Skylake/Cascade Lake) CPUs.

Q: How many drives can I install?
A: Up to 10x 2.5 in SFF hot-swap drives. SAS/SATA are supported; NVMe availability depends on the backplane and controller options.

Q: Does it support out-of-band management?
A: Yes, via the Integrated Management Controller (IMC) with HTML5 KVM and Redfish API.

Q: Are rails and bezel included?
A: Rack rails, bezels, and cable management arms are optional accessories unless specifically listed.

Technical Specifications

- Form factor: 1U rack
- CPU support: up to 2x Intel Xeon Scalable (Skylake/Cascade Lake)
- Chipset: Intel C620
- Memory: 24x DDR4 DIMM slots, up to 3TB with LRDIMM (configuration dependent)
- Drive bays: 10x 2.5 in SFF hot-swap (SAS/SATA; NVMe support depends on backplane/options)
- RAID: 12Gb SAS RAID/HBA options
- I/O: mLOM/VIC slot plus PCIe 3.0 risers (adapter dependent)
- Management: Integrated Management Controller (IMC) with HTML5 KVM/Redfish
- Power: up to 2x hot-swap redundant PSUs (wattage varies by option)
- Networking: speeds depend on installed VIC or PCIe NIC
