Cisco

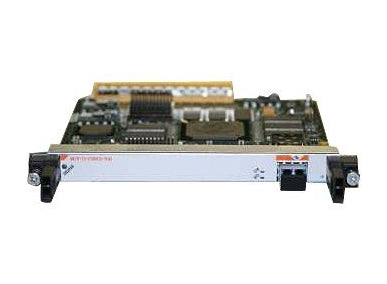

Cisco SPA-1CHOC3-CE-ATM | 1x OC-3/STM-1 (155M) channelized | ATM + Circuit Emulation | SFP (OC-3/STM-1), LC; wavelength/reach per SFP | Channelizes to DS1/E1/DS0 (up to 84 T1 / 63 E1) | SIP/SPA router module

SKU:SPA-1CHOC3-CE-ATM

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Single-port channelized OC-3/STM-1 SPA delivering ATM and circuit emulation on SONET/SDH for TDM aggregation and migration use cases. SFP-based optics let you choose short-, intermediate-, or long-reach OC-3/STM-1 transceivers as required. Provides granular channelization down to DS1/E1/DS0, enabling up to 84 T1 or 63 E1 equivalents per port.

Features

- Flexible SFP-based OC-3/STM-1 optics
- ATM and circuit emulation over SONET/SDH
- Granular channelization down to DS0 for TDM aggregation
- Line-rate 155 Mb/s forwarding on the port
- Hot-swappable SPA for minimized downtime
- Fits SIP-based router architectures for scalable WAN edge

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Does this module require a specific optic?
A: Yes. Use OC-3/STM-1 SFP optics (MMF or SMF) appropriate for your distance; wavelength and reach depend on the chosen SFP.

Q: Can it break out to DS0-level channels?
A: Yes. It supports channelization to DS1/E1/DS0 with up to 84 T1 or 63 E1 equivalents (up to 2016 DS0s).

Q: Is a license required to enable the port?
A: No SPA-specific license is typically required; platform software features may require the appropriate router license.

Q: Which platforms are compatible?
A: It requires a router with SPA Interface Processor (SIP) slots. Refer to your platform’s SPA/SIP compatibility matrix.

Q: Is the SPA hot-swappable?
A: Yes, when used in a supported chassis and software release.

Technical Specifications

- Port count: 1x OC-3/STM-1 (155.52 Mb/s) channelized
- Standards: SONET OC-3 / SDH STM-1; ATM; Circuit Emulation (CES)
- Channelization: DS1/E1/DS0 granularity (up to 84 T1 or 63 E1; up to 2016 DS0s)
- Optics: SFP-based OC-3/STM-1; LC connector; wavelength/reach per SFP (SR/IR/LR as applicable)
- Mapping: VT/VC channelized operation for DS1/E1/DS0 services
- Hardware type: Shared Port Adapter (SPA) for SIP-based router slots
- Throughput: Line-rate 155 Mb/s on the port
- Hot-swappable: Yes, in supported chassis
