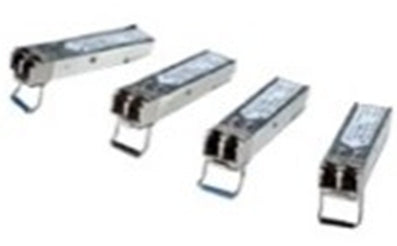

Cisco SFP-OC48-SR | OC-48/STM-16 SFP Transceiver, SMF, 2km, LC
SKU:SFP-OC48-SR
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This OC-48/STM-16 short-reach SFP transceiver is built for service provider SONET/SDH, POS and optical networking links on Cisco routers. It suits runs of up to about 2 km over single-mode fibre, such as inter-building or short metro spans where a long-reach optic is not needed.
It operates at 2.488 Gbps with a transmitter wavelength of 1266 to 1360 nm and uses a dual LC/PC connector. Transmit power ranges from -3 to -10 dBm and receiver power from -3 to -18 dBm, with a 1 dB optical path penalty. Digital optical monitoring reports output power, input power, temperature, laser bias current and supply voltage, so link health can be checked in real time. The case temperature range is -5 to 85 C.
The module plugs into SFP-based POS, TDM and ATM interfaces on Cisco router products and is powered from the host SFP port. Use patch cords with PC or UPC connectors only, as APC connectors are not supported.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable SFP form factor for Cisco router POS, TDM and ATM interfaces
- Compatible with SONET/SDH standards
- Real-time digital diagnostics for output power, input power, temperature, laser bias current and supply voltage
- Extended case temperature range of -5 to 85 C
- Class 1 laser safety rating
- Compact SFP module powered from the host router port
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Data rate: OC-48/STM-16 (2.488 Gbps)
- Typical distance: 2 km
- Fibre type: Single-mode
- Transmitter wavelength range: 1266 to 1360 nm
- Transmit power range: -3 to -10 dBm
- Receiver power range: -3 to -18 dBm
- Optical path penalty: 1 dB
- Digital optical monitoring: Yes (SFF-8742 MSA)
- Connector: Dual LC/PC (APC patch cords not supported)
- Operating case temperature: -5 to 85 C (23 to 185 F)
- Storage temperature: -5 to 85 C (23 to 185 F)
- Dimensions (H x W x D): 8.6 x 13.7 x 56.5 mm
- Laser safety: Class 1 per IEC60825-1 and CFR 21, Part 1040.01
- Optical standards: GR-253, ITU G.957, G.707
FAQs
Q: What distance does this SFP support?
A: It is a short-reach optic rated for typical distances of up to 2 km over single-mode fibre.
Q: Which connector and patch cords does it use?
A: It uses a dual LC/PC connector. Use patch cords with PC or UPC connectors only, as APC connectors are not supported.
Q: Does it support digital optical monitoring?
A: Yes. It supports DOM per SFF-8742 MSA, reporting optical output power, input power, temperature, laser bias current and supply voltage.
Q: Where does it plug in?
A: It fits SFP-based POS, TDM and ATM interfaces on Cisco router products, and is powered from the host router SFP port.
Q: Does it need a licence or separate power?
A: No. It is a passive plug-in optic powered from the host SFP port and carries no licence requirement.
